B&R X20CP3686X CPU Module

B&R X20CP3686X CPU Module

B&R X20CP3686X CPU Module

  • Item NO.:

    X20CP3686X
  • Payment:

    T/T
  • Price:

    $1350
  • Product Origin:

    AUSTRIA
  • Color:

    NEW
  • Product weight:

    0.09KG
  • Lead Time:

    In stock

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                        •
                          •

                            B&R X20CP3686X



                            CPU Module (X20 PLC Controller)


                            Manufacturer: B&R Automation (ABB Group)

                            Model: X20CP3686X

                            Type: High-performance X20 series PLC CPU module (integrated power supply)


                            Specifications


                            • Processor: Intel Atom E3930 @ 1.3 GHz, with FPUB& R Industrial Automation
                            • Memory:
                              • 1 GB LPDDR4 SDRAM (system RAM)
                              • 1 MB SRAM (retentive user memory)
                              • 2 GB onboard flash (system storage)B& R Industrial Automation
                              • 1 × CompactFlash slot (removable application memory)B& R Industrial Automation
                            • Communication Interfaces:
                              • 1 × Ethernet (TSN, 10/100/1000BASE‑T)B& R Industrial Automation
                              • 1 × POWERLINK V2 (real‑time industrial Ethernet)
                              • 1 × RS232 (serial)B& R Industrial Automation
                              • 2 × USB 2.0B& R Industrial Automation
                              • 1 × X2X Link (X20 system bus)
                            • Expansion: 3 × slots for X20 interface modulesB& R Industrial Automation
                            • Power Supply:
                              • Input: 24 VDC (‑20% / +25%), max 1.5 A / 36 WB& R Industrial Automation
                              • X2X Link output: 7 W (supports redundancy/parallel operation)B& R Industrial Automation
                            • Real‑Time Clock: Battery‑backed, 1 s resolutionB& R Industrial Automation
                            • Operating Temperature: −25°C to +60°C (horizontal)
                            • Mounting: 35 mm DIN rail, width 200 mm
                            • Protection: IP20, integrated fuse, reverse polarity protectionB& R Industrial Automation
                            • Certifications: CE, ATEX Zone 2, UL/cULus, HazLoc Class I Div 2

                            Key Features


                            • High Performance: 1.3 GHz Atom CPU + integrated I/O processor (background I/O handling)B& R Industrial Automation
                            • Real‑Time & Connectivity: TSN Ethernet + POWERLINK for high‑speed, synchronized motion/process control
                            • Modular Expansion: 3 interface slots for custom communication/fieldbus optionsB& R Industrial Automation
                            • Fanless Design: Rugged, maintenance‑free operation
                            • Redundancy Support: X2X Link power redundancy + controller redundancy capable
                            • Integrated Power: Built‑in 24 VDC supply for CPU and X2X Link busB& R Industrial Automation

                            Applications


                            • High‑End Machine Control: Packaging, robotics, machine tools, plastics processing
                            • Distributed I/O Systems: X20 station master controlling digital/analog I/O modules
                            • Real‑Time Motion & Process Automation: Synchronized multi‑axis control, factory automation

The structure and details of the product:

 Please make an inquiry for more models

B&R 8I74T400037.010-1

B&R ECEP128-0

B&R ECCP70-01

B&R MCGE31-0

B&R ECPA81-2

B&R MDA115-0

B&R 2BM100.9

B&R 2CP100.60-1

B&R 2DS100.60-1

B&R 4P3040.01-490

B&R DI426.6

B&R ECA162-01

B&R ECCP60-01

B&R ECE161-0

B&R ECE243-0

B&R ECNT43-0

B&R 8I74T400037.010-1

B&R ECPE84-2

B&R ECPNC3-0

B&R X20BM15

B&R X20BR9300

B&R ECR165-0

B&R 3AM051.6

B&R 3AI775.6

B&R 3NC150.6

B&R 3TB170.9

B&R 3AI375.6

B&R 3DI477.6

B&R 3DO480.6

B&R 3IF681.96

B&R 3PS465.9

B&R 3CP153.9

B&R 5D5212.01

B&R 3BP155.41

B&R PROVIT 5200

B&R 3NC154.60-2

B&R 3AM051.6

B&R 3CP153.9



 Other best-selling products:

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related products

X20DI9371
B&R X20DI9371 Digital Input Module

B&R X20DI9371 Digital Input Module

Details
 X20HB8815
B&R X20HB8815 X20 POWERLINK, TCP/IP Gateway

B&R X20HB8815 X20 POWERLINK  TCP/IP Gateway

Details
X20CP1584
B&R X20CP1584 CPU Processor Module

B&R X20CP1584 CPU Processor Module

Details
X20CP1485
B&R X20CP1485 Modular PLC Controller

B&R X20CP1485 Modular PLC Controller

Details
X20SLX806
B&R X20SLX806 Safety I/O Module

B&R X20SLX806 Safety I/O Module

Details
8MSA3L.E3-I6

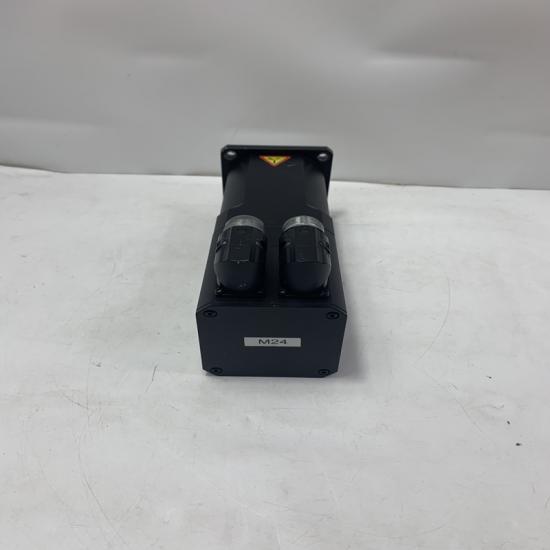

B&R 8MSA3L.E3-I6 Rev. D3 Servo Motor
