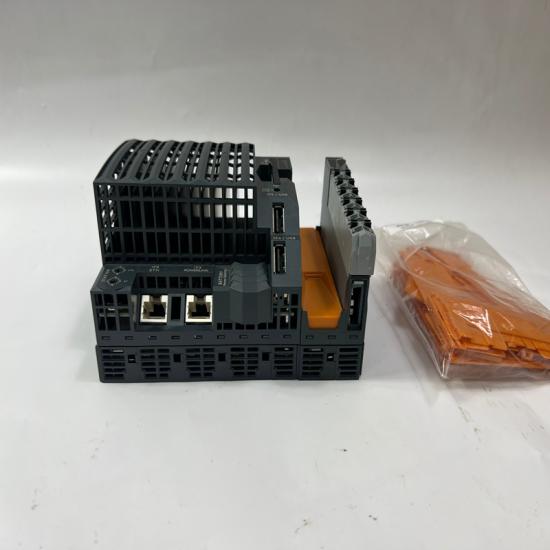

B&R X20CP1485 CPU Module

B&R X20CP1485 CPU Module

Product Description

The B&R X20CP1485 is a high-performance X20 System CPU Module designed for industrial automation control applications. It serves as the central controller of an X20 PLC system, providing real-time program execution, I/O processing, and communication management. The CPU integrates Ethernet, POWERLINK, USB, RS232, and X2X Link interfaces for flexible system integration.

Technical Specifications

• Brand: B&R (Bernecker & Rainer)
• Model: X20CP1485
• Product Type: CPU Module / PLC Controller
• Series: X20 System
• CPU Processor: Intel Celeron 400 MHz
• L2 Cache: 256 kB
• RAM: 32 MB SDRAM
• User SRAM: 1 MB
• Memory Expansion: CompactFlash card slot
• Power Supply: 24 VDC (-15% / +20%)
• Maximum Input Current: 2.2 A
• Communication Interfaces:
  • 1 × RS232
  • 1 × Ethernet 10/100 Base-T
  • 1 × POWERLINK V1/V2
  • 2 × USB 1.1
  • 1 × X2X Link Master
• Interface Expansion: 1 × modular interface slot
• Cycle Time: Minimum task class cycle time 400 μs
• Cooling: Fanless design
• Protection Rating: IP20
• Mounting: X20 modular system mounting

Advantages & Features

• High-speed real-time PLC processing capability
• Integrated I/O processor for efficient data handling
• Supports fast POWERLINK industrial communication
• Fanless design improves reliability and service life
• Compact modular structure saves cabinet space
• Supports floating-point calculations through integrated FPU
• CompactFlash memory for application storage and backup
• Suitable for complex automation and motion control systems

Applications

• Industrial automation systems
• Packaging machinery
• CNC machines
• Robotics systems
• Motion control applications
• Production line control
• Machine building equipment
• Process automation systems

Notes / Precautions

• Verify compatibility with the B&R X20 I/O system before installation
• Confirm 24 VDC power supply requirements
• Check CompactFlash card compatibility and application backup
• Ensure correct POWERLINK network configuration
• Replace battery according to maintenance requirements
• Installation and programming should be performed by qualified technicians
