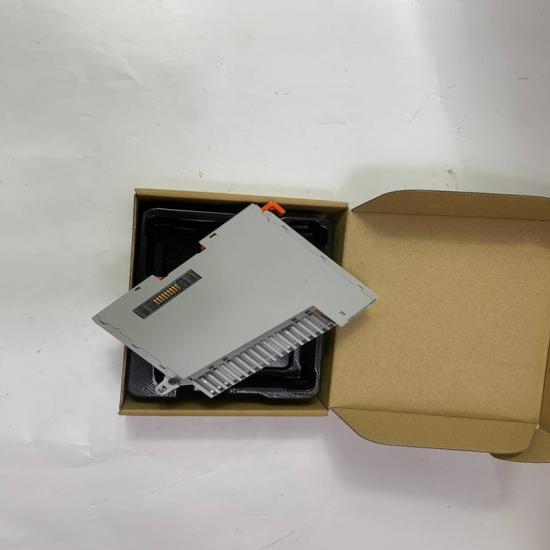

Allen-Bradley 5094-MB FLEX 5000 Mounting Base

Allen-Bradley 5094-MB FLEX 5000 Mounting Base

Product Overview

The Allen-Bradley 5094-MB is a FLEX 5000 I/O Mounting Base from Rockwell Automation, used as the physical connection base for FLEX 5000 I/O modules. It provides the module mounting interface, backplane power connection, and terminal block connection support for FLEX 5000 distributed I/O systems.

The 5094-MB must be installed separately for each FLEX 5000 I/O module and does not include the removable terminal block (RTB) or I/O module.

Main Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model: 5094-MB
• Product Type:
  • FLEX 5000 Mounting Base
  • I/O Module Base Unit
• Series:
  • FLEX 5000 I/O
• Application:
  • Mounting and connecting FLEX 5000 I/O modules
• Compatible Modules:
  • FLEX 5000 Digital I/O modules
  • FLEX 5000 Analog I/O modules
  • FLEX 5000 Specialty I/O modules
• Backplane Power:
  • Maximum 100 mA @ 15V DC
  • Maximum 15 mA @ 3.3V DC
• DIN Rail Compatibility:
  • EN60715 35 × 7.5 mm DIN rail
• Terminal Block Compatibility:
  • 5094-RTB3 series removable terminal blocks
• Dimensions (H × W × D):
  • Approx. 85 × 94 × 37.5 mm
• Weight:
  • Approx. 71 g
• Enclosure Type:
  • Open style
• Temperature Code:
  • T4

Advantages & Features

• Designed specifically for FLEX 5000 EtherNet/IP I/O systems
• Provides secure mechanical mounting for I/O modules
• Supports quick module replacement and maintenance
• Compatible with multiple FLEX 5000 terminal block options
• Compact DIN rail mounting design saves cabinet space
• Provides reliable backplane communication and power connection
• Suitable for industrial automation environments

Applications

• Factory automation systems
• Remote I/O control panels
• PLC distributed I/O networks
• Machine automation equipment
• Process control systems
• Industrial control cabinets

Important Notes

• 5094-MB is only the mounting base, not a complete I/O module.
• FLEX 5000 I/O modules, mounting bases, and removable terminal blocks are purchased separately.
• Select the correct 5094-RTB3 series terminal block according to the installed I/O module.
• Confirm compatibility with the FLEX 5000 module type before installation.
• Install on a suitable 35 mm DIN rail.
