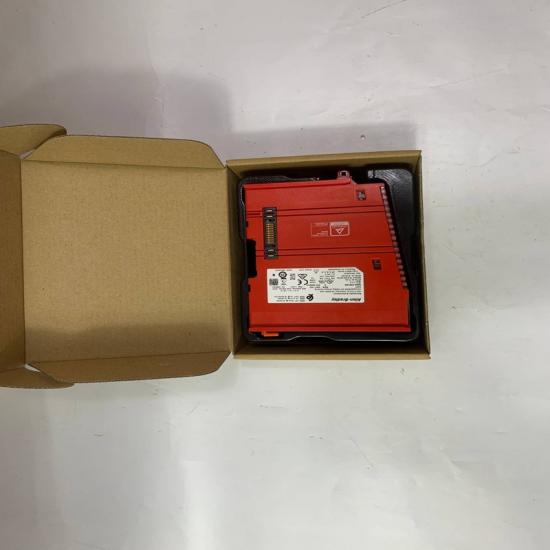

Allen-Bradley 5094-IF8 FLEX 5000 Analog Input Module

Allen-Bradley 5094-IF8 FLEX 5000 Analog Input Module

Product Overview

The Allen-Bradley 5094-IF8 FLEX 5000 Analog Input Module is an 8-channel analog input module designed for FLEX 5000 EtherNet/IP distributed I/O systems from Rockwell Automation. It supports both voltage and current analog signals and is used to collect data from field devices such as transmitters, sensors, and industrial instruments for PLC control systems.

The module provides 8 single-ended, non-isolated analog input channels and can be configured through Studio 5000 Logix Designer software.

Main Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model: 5094-IF8
• Product Type:
  • FLEX 5000 Analog Input Module
  • Analog I/O Module
• Series:
  • FLEX 5000 I/O (Bulletin 5094)

Input Channels

• Number of Inputs:
  • 8 channels
• Input Type:
  • Voltage
  • Current
• Input Configuration:
  • Single-ended, non-isolated

Analog Input Range

• Voltage Input:
  • 0…5 VDC
  • 0…10 VDC
  • ±10 VDC
• Current Input:
  • 0…20 mA
  • 4…20 mA

Performance

• Resolution:
  • 16-bit signed resolution
• Communication:
  • EtherNet/IP via FLEX 5000 adapter
• Configuration Software:
  • Studio 5000 Logix Designer

Power & Installation

• Module Power Input:
  • 10…32 VDC
• Sensor Actuator (SA) Power:
  • 10…32 VDC
• Mounting:
  • DIN rail mounting
• Terminal Connection:
  • Requires FLEX 5000 terminal base
• Operating Temperature:
  • -40…+70 °C

Advantages & Features

• 8-channel analog signal acquisition
• Supports common industrial 0-10V and 4-20mA signals
• Direct connection from field sensors to I/O terminal base
• Supports removal and insertion under power (RIUP)
• Built-in channel diagnostics and LED status indicators
• Supports CIP Sync / Precision Time Protocol (PTP)
• Compact modular design for distributed control systems
• Reduces cabinet wiring complexity

Applications

• Factory automation systems
• Process control systems
• Remote I/O stations
• PLC-based monitoring systems
• Temperature, pressure, flow, and level measurement
• Motor and drive feedback monitoring
• Industrial instrumentation systems

Compatible Devices

Common connected field devices include:

• Pressure transmitters (4-20mA)
• Temperature transmitters
• Flow meters
• Level sensors
• Position sensors
• Industrial analog output instruments

Important Notes

• 5094-IF8 requires a separate 5094 mounting base and compatible terminal block for installation.
• It is not a standalone PLC module.
• Confirm sensor signal type (voltage/current) before configuration.
• Use shielded wiring for analog signals in high-noise industrial environments.
• Verify compatibility with the FLEX 5000 adapter and controller system.
