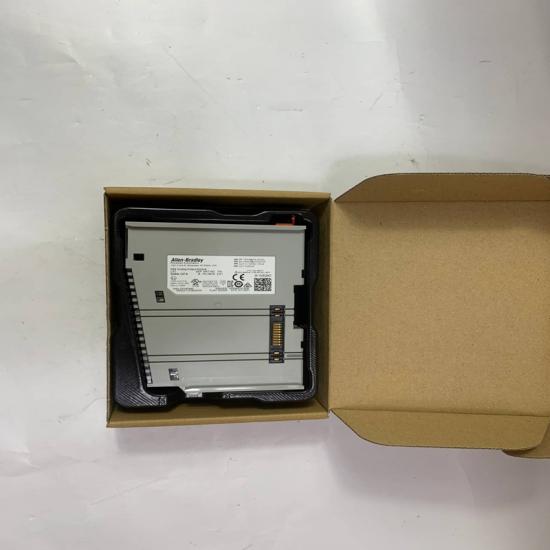

Allen-Bradley 5069-OF4 Analog Output Module





Product Overview

The Allen-Bradley 5069-OF4 is a 4-channel analog output module in the Compact 5000 I/O / CompactLogix 5380 system.

It is designed to generate precise industrial control signals such as:

• 0–10 V / ±10 V voltage output
• 0–20 mA / 4–20 mA current output

Key Specifications (verified)

• Brand: Allen-Bradley (Rockwell Automation)
• Series: Compact 5000 I/O
• Model: 5069-OF4
• Channels: 4 analog outputs
• Output Types: Voltage / Current selectable per channel
• Output Ranges:
  • Voltage: 0–10 V, ±10 V
  • Current: 0–20 mA / 4–20 mA
• Resolution: 16-bit high precision
• Conversion time: fast ms-level response
• Load capability:
  • Voltage mode: high impedance load
  • Current mode: loop-driven (typical industrial 250–500Ω range)
• Isolation: basic industrial isolation (~250V class)
• Platform: CompactLogix 5380 / GuardLogix 5380 / Compact 5000 I/O

Key Features

• 4 independent analog output channels
• Each channel configurable as voltage or current output
• High resolution (16-bit precision DAC)
• Stable output for process control loops
• Fast response suitable for PID control
• Fully integrated with Studio 5000

Working Principle

The module converts PLC numerical values into analog signals:

• PLC sends engineering value (0–100%)
• Module scales it into:
  • 0–10V / ±10V OR
  • 4–20mA loop current

Then used to control:

• VFD speed reference
• Control valves
• Actuators / positioners

Advantages

• Flexible voltage or current output per channel
• High precision and stable control
• Easy scaling in Rockwell Studio 5000
• Reliable industrial-grade output stability
• Suitable for closed-loop process control

Applications

• VFD frequency reference control
• Flow / pressure control valves
• Heater or actuator control
• Process automation systems
• OEM machine control
• Water / chemical treatment systems
