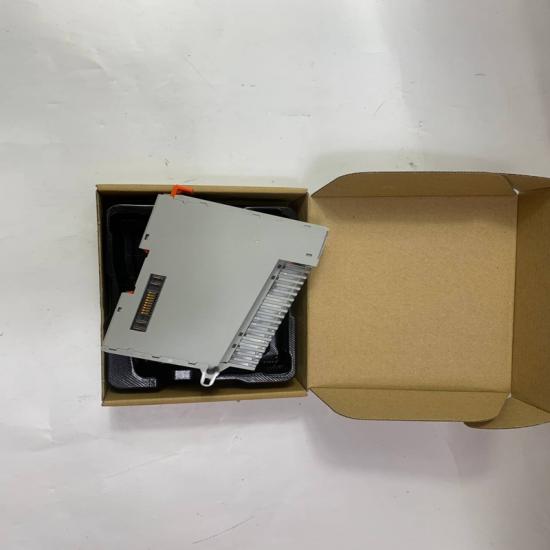

Allen-Bradley 5069-IY4 Analog Output Module

Product Overview

The Allen-Bradley 5069-IY4 is a 4-channel universal analog output module for the CompactLogix 5380 / Compact 5000 I/O system.

It is used to generate industrial analog control signals such as:

• 0–10 V voltage output
• 4–20 mA current output

Key Specifications (verified)

• Brand: Allen-Bradley (Rockwell Automation)
• Series: Compact 5000 I/O
• Model: 5069-IY4
• Channels: 4 analog outputs
• Output Types: Voltage / Current (configurable per channel)
• Output Range:
  • 0–10 V, ±10 V (voltage mode)
  • 0–20 mA / 4–20 mA (current mode)
• Resolution: 16-bit high precision
• Data format: IEEE 32-bit floating point
• Isolation: ~250 V basic isolation (module-level)
• Scan/update time: fast industrial update (~ms-level)
• Platform: CompactLogix 5380 / GuardLogix 5380 / Compact 5000 I/O

Key Features

• 4 independent analog output channels
• Each channel configurable (V or mA)
• High-resolution 16-bit precision output
• Stable signal generation for process control
• Built-in diagnostics and scaling support
• Fully integrated with Studio 5000

Working Principle

The PLC sends a digital value → module converts it into analog signal:

• PLC value = 0–100%
• Module scales it into:
  • 0–10V signal OR
  • 4–20mA loop signal

Used for closed-loop industrial control systems.

Advantages

• Flexible voltage/current output per channel
• High precision (16-bit resolution)
• Excellent stability for process control
• Strong Rockwell ecosystem compatibility
• Reliable for VFD and actuator control
• Easy scaling in Studio 5000

Applications

• VFD speed control (frequency inverters)
• Control valves / actuators
• Pressure / flow control systems
• Process automation systems
• Industrial OEM machines
• Chemical / water treatment systems

Important Precautions

• Must match correct mode:
  • Voltage mode ≠ Current mode wiring
• Current output (4–20mA) requires proper loop load (typically 250Ω if measuring voltage)
• Incorrect configuration may cause:
  • Fixed output value
  • No signal output
  • Channel fault or scaling errors
• Analog wiring must use:
  • Shielded cable
  • Proper grounding
  • Avoid EMI interference
• Do not exceed output load limits
• Always verify Studio 5000 channel configuration matches hardware mode
