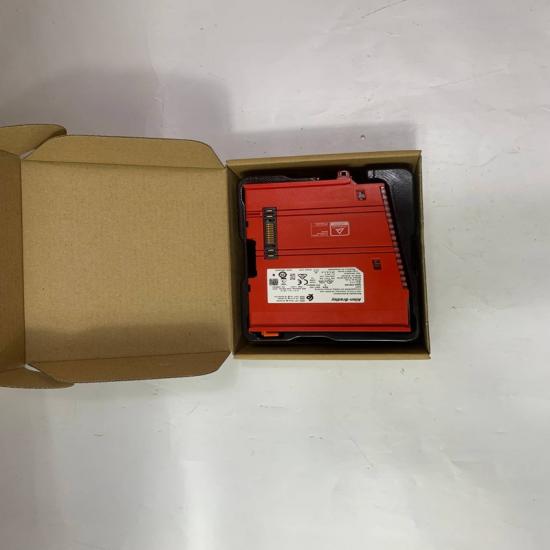

Allen-Bradley 5069-OBV8S Compact5000 8-Channel 24VDC Configurable Safety Output Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Allen-Bradley 5069-OBV8S Compact5000 8-Channel 24VDC Configurable Safety Output Module

Product Description

The Allen-Bradley 5069-OBV8S is a high-performance safety output module from the Compact5000 I/O series, designed for machine safety applications. This module provides 8 configurable safety output channels (24VDC) with SIL 3/PLe safety certification, making it ideal for safety-critical control systems in industrial automation.

Key Features

1. Advanced Safety Performance

   • SIL 3/PLe certified per IEC 61508 and ISO 13849-1

   • 8 configurable safety outputs (24VDC, 2A per channel)

   • Supports Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Stop 2 (SS2)

   • Cross-circuit detection for wiring fault detection

2. Flexible Configuration

   • Individually configurable channels (pulsed or steady-state)

   • Test pulse monitoring for output verification

   • Short-circuit protection on all outputs

3. Seamless Integration

   • Native integration with CompactLogix 5380 controllers

   • Studio 5000 Logix Designer configuration

   • EtherNet/IP communication for real-time monitoring

4. Robust Industrial Design

   • -20°C to +60°C operating temperature

   • IP20 protection (requires enclosure)

   • Removable terminal blocks for easy maintenance

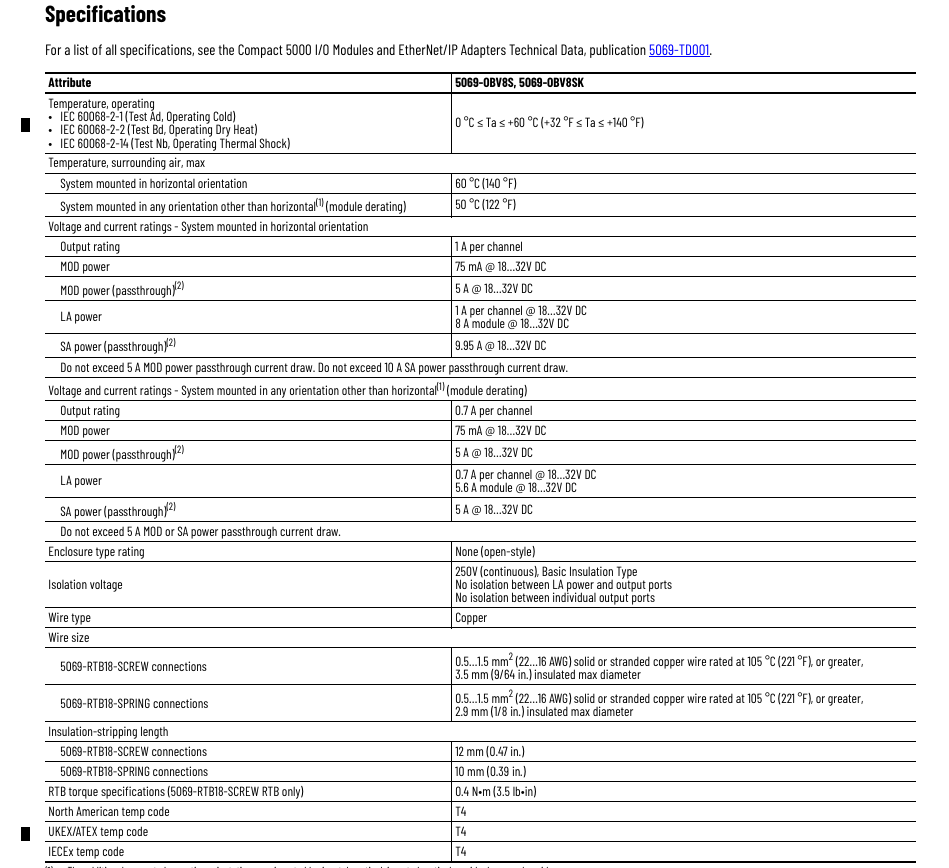

Technical Specifications

Typical Applications

• Safety door monitoring systems

• Emergency stop circuits

• Robotic cell safeguarding

• Press and stamping machine safety controls

• Material handling equipment safety systems

Installation & Configuration

• Mounting: 35mm DIN rail

• Wiring: Use shielded cables for noise immunity

• Configuration:

  • Configure via Studio 5000 Logix Designer (v30 or later)

  • Set output behavior (pulsed/steady) and monitoring parameters

The structure and details of the product：
