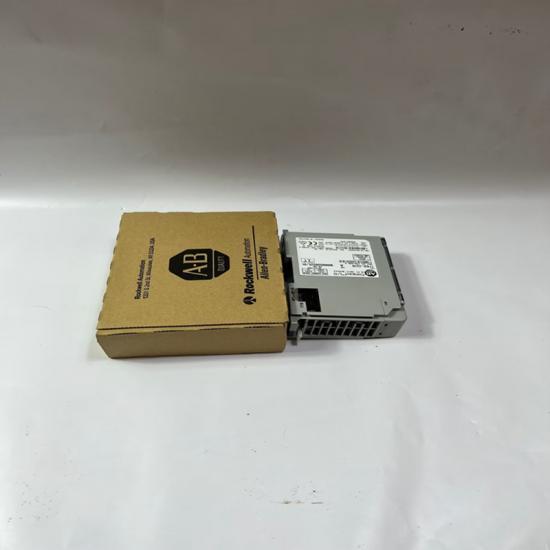

Allen-Bradley 5069-L330ER CompactLogix 5380 Controller





Product Overview

The Allen-Bradley 5069-L330ER is a CompactLogix 5380 series programmable logic controller (PLC) from Rockwell Automation, designed for mid-size to large industrial automation systems.

It provides high-speed control, integrated motion capability, and advanced Ethernet communication, making it widely used in modern smart factories.

Key Specifications (verified)

• Brand: Allen-Bradley (Rockwell Automation)
• Series: CompactLogix 5380
• Model: 5069-L330ER
• User Memory: 3 MB
• Local I/O capacity: up to 31 modules
• EtherNet/IP nodes: up to 60 devices
• Motion control: up to 32 axes (system dependent)
• Ethernet ports: dual Gigabit Ethernet (DLR / Linear / Star supported)
• USB port: USB 2.0 for programming and firmware
• Power consumption: low (approx. 8–9 W range)
• Programming software: Studio 5000 Logix Designer
• Communication protocol: EtherNet/IP (native Rockwell system)

Key Features

• High-performance CompactLogix 5380 platform CPU
• Dual Ethernet ports (supports DLR ring topology)
• Integrated motion control capability (servo systems)
• Advanced diagnostics and system security
• Supports distributed I/O (5069 Compact 5000 I/O)
• Fast scan time and high-speed industrial communication

Working Principle

This controller acts as the central brain of an automation system, performing:

• Reading inputs (sensors, switches, analog signals)
• Processing logic program (ladder/ST/FBD)
• Sending outputs (motors, relays, drives, valves)
• Coordinating communication with drives, HMIs, and remote I/O via EtherNet/IP

It is designed for real-time deterministic industrial control.

Advantages

• Very high performance PLC platform
• Excellent integration with PowerFlex drives & Allen-Bradley systems
• Strong Ethernet-based architecture (no legacy fieldbus dependency)
• Scalable I/O and motion control system
• Built-in diagnostics improves maintenance efficiency
• Widely used in North American OEM machines

Applications

• Packaging machinery
• Automotive production lines
• Conveyor and logistics systems
• Robotic cells
• Food & beverage automation
• General industrial machine control

Precautions

• Requires Studio 5000 programming environment (licensed)
• Must match correct firmware version with project file
• Incorrect Ethernet configuration may block communication
• Proper grounding and cabinet layout required for noise immunity
• Not compatible with old CompactLogix 5370 I/O systems
• Firmware upgrades must follow Rockwell compatibility rules
