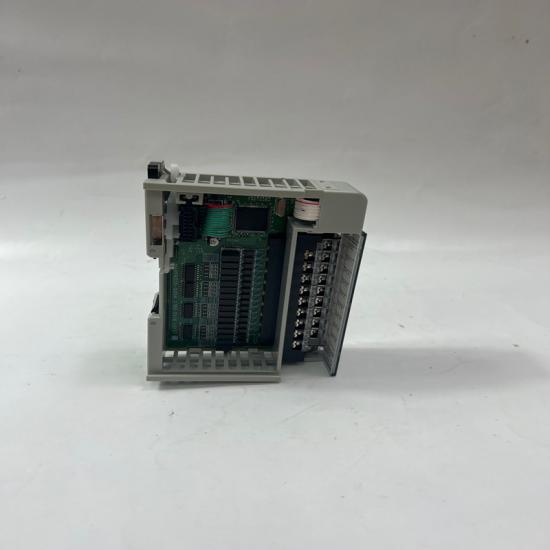

Allen-Bradley 5069-IF8 Analog Input Module





Product Overview

The Allen-Bradley 5069-IF8 is an 8-channel analog input module for the CompactLogix 5380 / Compact 5000 I/O platform.

It is designed to read industrial analog signals from field devices such as:

• Pressure transmitters
• Temperature transmitters
• Flow sensors
• Position feedback devices

Key Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Series: Compact 5000 I/O
• Model: 5069-IF8
• Channels: 8 analog inputs
• Signal Types (per channel):
  • 0–10 V
  • 0–5 V
  • ±10 V
  • 0–20 mA
  • 4–20 mA
• Resolution: 16-bit (high precision)
• Platform: CompactLogix 5380 / GuardLogix 5380 compatible
• Installation: DIN rail + removable terminal block (RTB)
• Communication: Integrated into Logix system backplane
• Power: 24 V DC system supply

Key Features

• 8 flexible analog channels (voltage or current)
• Each channel configurable independently
• High resolution (16-bit measurement accuracy)
• Built-in diagnostics (open wire, underrange, overrange)
• Noise filtering options for industrial environments
• Easy integration with Studio 5000

Working Principle

The module converts real-world analog signals → digital data:

1. Field device sends 0–10V or 4–20mA signal
2. IF8 converts signal using internal ADC
3. PLC reads value as engineering data (REAL format)
4. Control logic uses data for process control

Advantages

• Very flexible (mixed voltage + current inputs)
• High accuracy for process control
• Strong diagnostics (helps detect wiring faults early)
• Compact design for modern control panels
• Seamless integration with Rockwell ecosystem
• Supports industrial filtering for noisy environments

Applications

• Process automation systems
• Pump & flow control
• Pressure / temperature monitoring
• Packaging and OEM machinery
• Water treatment systems
• Energy and industrial monitoring systems

Precautions

• Series A vs Series B matters (wiring difference)
  • Series A: differential inputs
  • Series B: single-ended support improvement
• Analog wiring must be:
  • Shielded cable
  • Proper grounding
  • Correct loop power (for 4–20 mA transmitters)
• Incorrect configuration may cause:
  • Channel fault
  • 0 reading or unstable signal
  • Open-wire diagnostic alarms
• Not suitable for high-noise or unprotected field wiring without isolation
• Must match Studio 5000 module configuration exactly
