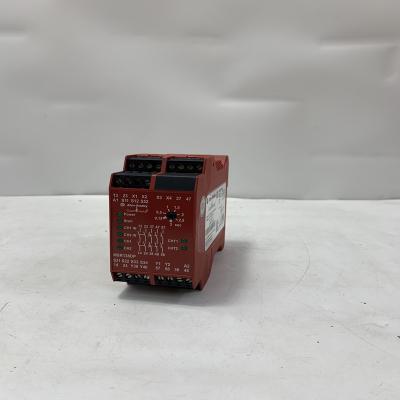

Allen-Bradley 440R-M23143 Monitored Safety Relay

Product Description

The Allen-Bradley 440R-M23143 is a monitored safety relay from the Guardmaster series, designed for industrial safety applications. This product integrates the functions of two standard safety relays into a compact DIN rail-mounted device, simplifying the installation and complexity of safety control systems. The 440R-M23143 complies with the latest functional safety standards, providing high-level safety protection suitable for applications requiring PLe, Category 4 (ISO 13849-1) and SIL CL3 (IEC 62061) safety levels1.

Detailed Specifications

Product Advantages and Features

1. High Safety Level: Complies with PLe, Category 4 and SIL CL3 highest safety level standards, ensuring personnel and equipment safety.

2. Versatile Input Compatibility: Universal input design compatible with various safety components including interlock devices, light curtains, safety mats, emergency stops and SensaGuard™ equipment.

3. Simplified Wiring: Single-wire safety connection technology simplifies wiring for cascading and expanding safety functions while maintaining SIL 3 and PLe safety levels.

4. Flexible Configuration: Configurable via rotary switch for automatic/manual or monitored manual reset and AND/OR input logic to adapt to different application requirements.

5. Compact Design: DIN rail mounting with dimensions of only 114.5×99×45mm, saving control cabinet space.

6. Self-Monitoring Function: Built-in self-monitoring output detects internal relay faults to ensure reliable execution of safety functions.

7. Cross-Fault Monitoring: Capable of detecting cross-faults between input channels, improving system reliability.

Typical Application Fields

The 440R-M23143 safety relay is widely used in the following industrial fields:

1. Machine Safety Systems: For safety control of hazardous machinery such as presses, injection molding machines, and packaging machines.

2. Automated Production Lines: Providing safety interlock functions in automotive manufacturing, electronic assembly and other automated production lines.

3. Material Handling Systems: Protecting operators of conveyors, lifts, robotic workstations and other equipment.

4. Food Processing Equipment: Complies with food industry safety standards for dangerous processes like cutting and mixing.

5. Metalworking Machinery: Providing emergency stop and safety door monitoring for presses, shears, bending machines, etc..

Usage Precautions

1. Installation Requirements: Must be installed by qualified professionals in accordance with relevant safety standards and equipment manuals.

2. Power Supply Requirements: Ensure stable power supply voltage within 24V AC/DC range to avoid performance issues caused by voltage fluctuations.

3. Environmental Conditions: Operating environment temperature should be between -5°C to +55°C, avoiding humid, corrosive gas and dusty environments.

4. Regular Testing: Recommend periodic testing of safety functions to ensure proper relay operation, with frequency complying with relevant safety standards.

5. Maintenance Inspection: Regularly check for loose terminal connections and clean contacts to ensure reliable electrical connections.

6. System Integration: When integrating with other safety devices, ensure the entire safety circuit meets required safety level standards.

7. Fault Handling: After safety relay activation, identify and resolve the root cause before performing reset operations.

The structure and details of the product：
