Allen-Bradley 1746-P1 Power Module

1. Product Description

The 1746-P1 is an AC power supply module from Allen-Bradley’s SLC 500 series, designed to provide stable DC power to PLC controllers, I/O modules, and automation systems. It converts 120/240V AC input to 5V DC (2A) and 24V DC (0.46A) outputs, ensuring reliable operation in industrial environments .

2. Key Features

Wide Input Voltage Range – Supports 85–132V AC (low range) and 170–265V AC (high range) for global compatibility .
Dual DC Outputs – Provides:
- 5V DC @ 2A (for processor/backplane power).
- 24V DC @ 0.46A (for I/O modules/sensors) .
Compact & Robust Design – DIN rail-mounted with an aluminum frame for heat dissipation .
High Reliability – Features overload, short-circuit, and over-temperature protection .
Certifications – Complies with CE, UL, CSA, and GOST standards .

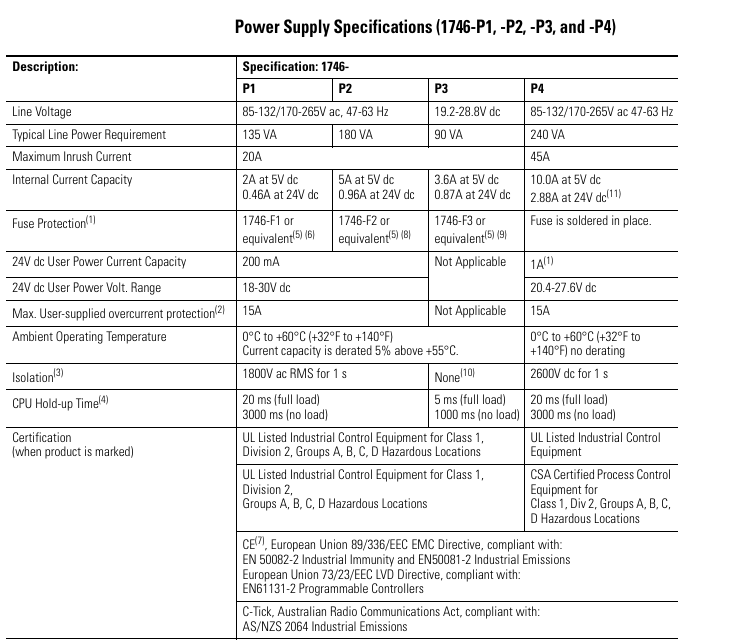

3. Technical Specifications

Parameter	Specification
Input Voltage	85–132V AC / 170–265V AC
Output Voltage	5V DC (2A) / 24V DC (0.46A)
Power Rating	42W (real) / 69 VA (apparent)
Operating Temp.	0°C to 60°C (derated above 55°C)
Protection Rating	NEMA 12 (dust/moisture resistant)
Dimensions	215 × 145 × 171 mm (L×W×D)

4. Applications

PLC Systems – Powers SLC 500 controllers and I/O modules .
Manufacturing Automation – Ensures stable power for assembly lines and robotic cells .
Energy & Infrastructure – Used in substations and water treatment plants .
