Allen-Bradley 25B-D2P3N104 PowerFlex 525 AC Drive

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Allen-Bradley 25B-D2P3N104 PowerFlex 525 AC Drive

• Basic Parameters:
  • Input Voltage: 323 to 528 volts AC, suitable for three-phase 480-volt AC motors.
  • Output Power: The rated power is 0.75 kW (1 horsepower), and the output current is 2.3 amperes.
  • Power Loss: The total power loss is 37 watts.
  • Frame Size and Protection Class: Frame size A, with a NEMA IP20 open enclosure.
• Interface and I/O Configuration:
  • Analog Inputs: Equipped with two analog inputs, one unipolar and one bipolar, separately isolated from the drive I/O main body. The input configuration can be switched via digital signals.
  • Digital Inputs: There are seven digital inputs, six of which are programmable for customized programming solutions.
  • Analog Output: A single 10-bit analog output, which can be selected between 0-10 volts or 0-20 mA via a jumper, usually used for metering or as a reference speed for another drive.
  • Other Outputs: It also has two optocoupler outputs and two relay outputs (one Type A and one Type B) for status signals of the drive, motor, and its logic controller.
  • Communication Interfaces: Built-in Ethernet/IP port, supporting network configuration, control, and data acquisition. It also has an RS-485 serial interface for multi-point communication settings.
• Functional Features:
  • Control Functions: Supports various motor control methods, including volts per hertz control, sensorless vector control, and closed-loop speed vector control, etc. It can be used for various motor types such as induction motors and interior permanent magnet motors.
  • Safety Functions: Equipped with safety functions such as ground fault trip, instantaneous fault trip, and electronic motor overload protection. It also has a safe torque off (STO) function, complying with PLD/SIL 2 Cat 3 standards.
  • Programming Convenience: Enables power-free programming via USB connection. Uses Connected Components Workbench (CCW) software for parameter configuration, firmware updates, etc. It also supports AppView and Custom View, allowing the use of preloaded or user-defined parameter groups.
• Physical Characteristics:
  • Size and Weight: Dimensions are 152 mm × 72 mm × 172 mm, weighing approximately 1.1 kg (2.4 lbs).
  • Installation Method: Supports panel mounting or DIN rail mounting, and can be installed vertically or horizontally. However, a control module fan kit is required for horizontal installation.
• Application Scenarios: Due to its advanced torque, speed, position control, and braking technologies, it can be widely used in manufacturing, water treatment, HVAC and other industries, and can be easily integrated into existing speed control systems or independent machines.

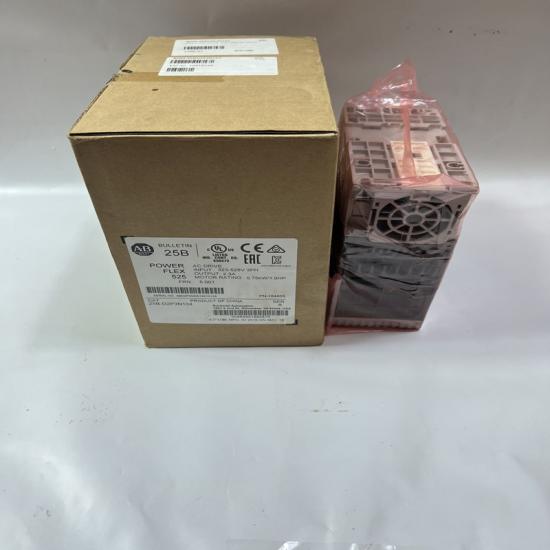

The structure and details of the product：
