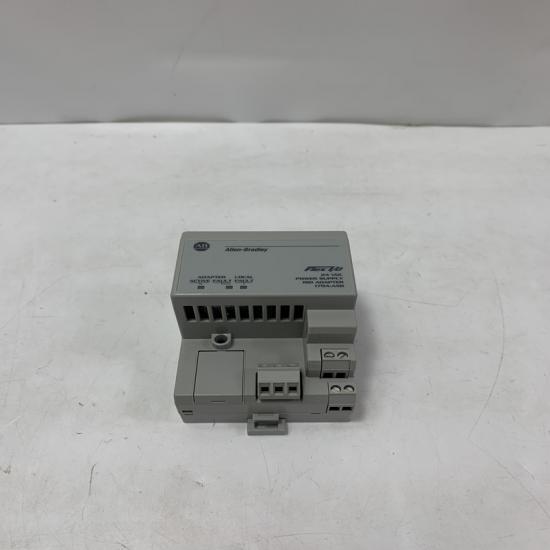

Allen-Bradley 1794-ASB is a remote I/O adapter module in Rockwell Automation's Flex I/O series, designed for distributed industrial control systems. It connects Flex I/O modules to main controllers such as ControlLogix or SLC 500 via DeviceNet network, enabling bidirectional data transmission. As the communication hub of the Flex I/O system, this module supports expansion of up to 16 Flex I/O modules and realizes high-speed data exchange through DeviceNet protocol. It is suitable for industrial scenarios requiring distributed I/O points, such as decentralized control of production lines and remote equipment monitoring, effectively reducing wiring costs and improving system flexibility.
- Communication Protocol: Supports DeviceNet protocol, transmission rate configurable to 125kbps, 250kbps or 500kbps, using token-passing for multi-node communication.
- I/O Expansion Capacity: Connects up to 16 Flex I/O modules (e.g., 1794-IB16, 1794-OB16P), supporting mixed configuration of digital, analog, and special function modules.
- Communication Interface: 1 DeviceNet interface (5-pin mini circular connector), supports bus power supply, built-in 120Ω terminal resistor (enable via DIP switch).
- Power Requirements: Draws operating power from DeviceNet network (24V DC±10%), power consumption ≤5W; provides 24V DC power for connected Flex I/O modules, total output current ≤1.5A.
- Operating Environment: Operating temperature 0℃~60℃, storage temperature -40℃~85℃, relative humidity 5%~95% (non-condensing), protection class IP20 (suitable for control cabinet installation).
- Diagnostic Functions: Supports module status indicators (power, communication, fault), feeds back I/O module fault information via DeviceNet network, enabling remote diagnosis and parameter configuration.
- Dimensions: Width×height×depth approximately 32mm×110mm×86mm, DIN rail mounted, compatible with Flex I/O racks.
- Certification Standards: UL 508, CSA C22.2 No.14, CE certified, compliant with IEC 61131-2 and EN 50170 industrial standards.
- Distributed I/O Expansion: Enables remote I/O connection via DeviceNet network, with maximum communication distance up to 500m (at 125kbps), suitable for decentralized control layouts in large plants, reducing cable wiring costs.
- Flexible Module Combination: Supports mixed expansion of 16 Flex I/O modules, configurable with digital, analog, or special function modules according to needs, quickly adapting to different control scenarios.
- High-Speed Stable Communication: Supports up to 500kbps DeviceNet transmission rate, meeting real-time control requirements; token-passing mechanism ensures order and reliability of multi-node communication.
- Convenient Diagnostic Maintenance: Combines status indicators with network diagnostic functions, enabling quick location of communication faults or module abnormalities, reducing system downtime.
- Industrial-Grade Reliability: Wide temperature range and anti-electromagnetic interference design ensure stable operation in motor/frequency converter-dense industrial environments, with mean time between failures (MTBF) ≥10⁶ hours.
- Automotive Production Lines: In distributed control of welding and painting workshops, connects on-site sensors with main controllers, realizing remote I/O data transmission via 1794-ASB, reducing wiring interference in strong electromagnetic environments.
- Food and Beverage Processing: Used for centralized management of I/O in various production areas, such as level sensors in filling areas and photoelectric switches in packaging areas, aggregating data to central control systems via DeviceNet network.
- Warehousing and Logistics Systems: In automated warehouses, connects limit switches and proximity sensors of stackers and conveyors, realizing remote equipment status monitoring and control command issuance.
- Water Treatment Plants: I/O points distributed in various pump rooms and filtration units are connected to central control systems via 1794-ASB, monitoring pump operation status and water quality sensor data.
- Metallurgical Auxiliary Equipment: Connects temperature and pressure sensors in auxiliary systems of rolling mills and furnaces, realizing remote signal acquisition and equipment control in high-temperature environments.
- During installation, ensure correct configuration of DeviceNet bus terminal resistors (1794-ASB at both ends of the bus must enable terminal resistors, middle nodes disabled) to avoid signal reflection affecting communication.
- Communication cables must use DeviceNet dedicated shielded twisted-pair wires, with shield layer grounded at one end (control cabinet side); cable cross-sectional area ≥0.5mm² to ensure power transmission and anti-interference capability.
- Total current of Flex I/O modules must not exceed 1.5A (24V DC); use an external independent power supply when exceeding to prevent 1794-ASB overload protection triggering.
- During system commissioning, configure network parameters via RSNetWorx for DeviceNet software to ensure unique node addresses, avoiding communication interruption due to address conflicts.
- Regularly check for loose connectors and clean dust on module surfaces; in dusty environments, perform maintenance quarterly to ensure good heat dissipation.
