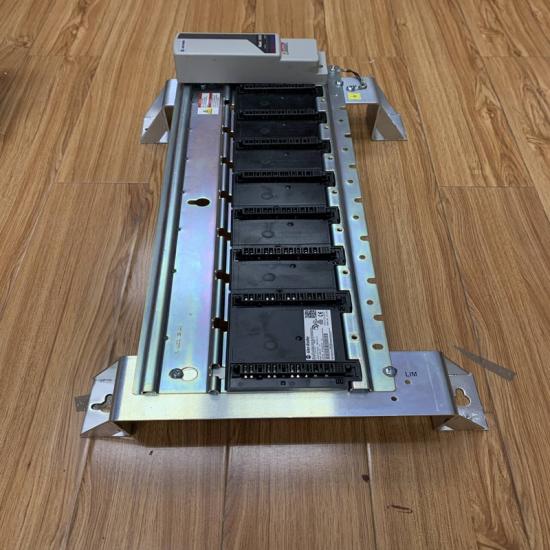

Allen-Bradley 2094-PRS8 Kinetix 6000 Power Rail

1. Product Description

The 2094-PRS8 is a power rail module designed for the Kinetix 6000 multi-axis servo drive system. It serves as the central power distribution hub, supporting up to 8 axes of servo drives on a single rail. This modular design simplifies installation and reduces wiring complexity in industrial motion control applications .

2. Key Features

Multi-Axis Support – Accommodates 1 to 8 servo drive modules (e.g., 2094-ACxx or 2094-BCxx) on a single rail, enabling scalable motion control solutions .
Simplified Wiring – Modular design reduces cabling by consolidating power and communication connections, saving up to 50% panel space compared to discrete systems .
High Power Capacity – Supports 200V (195–265V AC) and 400V (324–528V AC) input voltage ranges, with continuous power output up to 22 kW (400V class) .
Integrated Safety – Compatible with Kinetix 6000’s Safe Torque Off (STO) functionality, meeting ISO 13849-1 PLe/SIL3 safety standards (requires external safety relay for EN954-1 Cat. 3) .
Diagnostic LEDs – Provides real-time status indicators for power and communication health .

3. Technical Specifications

Parameter	Specification
Max Axes Supported	8
Input Voltage	200V class: 195–265V AC; 400V class: 324–528V AC
Power Output	Up to 22 kW (400V class)
Safety Certification	ISO 13849-1 PLe/SIL3
Compatibility	Kinetix 6000 servo drives (e.g., 2094-AC05, 2094-BC07)
Mounting	DIN rail or panel

4. Applications

Packaging Machinery: High-speed synchronization of multiple axes for filling and labeling .
Material Handling: Precision control for conveyors and robotic arms .
Printing/Converting: Multi-axis coordination in web tension control .

5. Precautions

Voltage Matching – Ensure servo drives (e.g., 2094-ACxx for 200V, 2094-BCxx for 400V) match the power rail’s voltage class .
Cooling Requirements – Maintain ambient temperature ≤50°C for optimal performance .
Safety Compliance – Use external safety relays for full EN954-1 Cat. 3 compliance .
