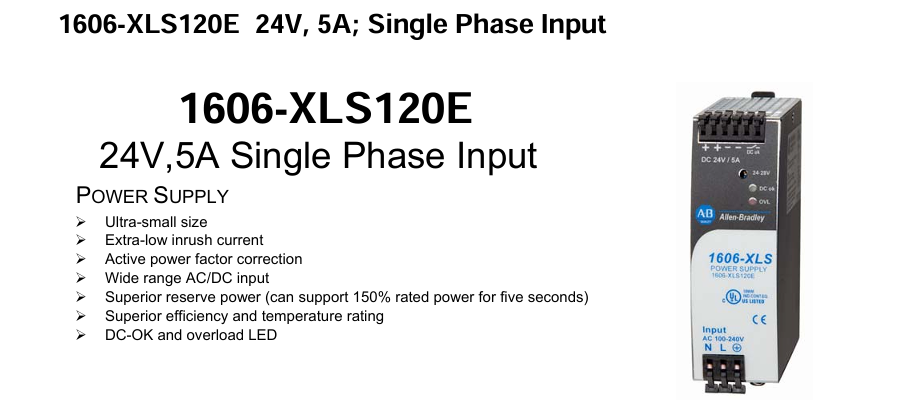

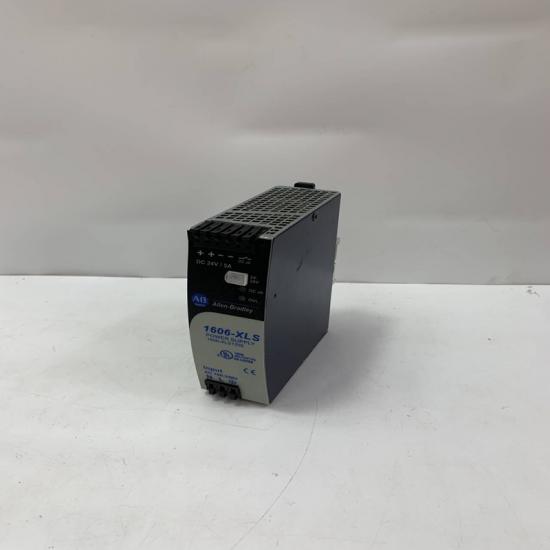

Allen-Bradley 1606-XLS120E Power Module

1. Product Description

The 1606-XLS120E is a high-performance switch-mode power supply from Allen-Bradley’s 1606-XLS series, designed for industrial automation applications. It provides 24V DC output with 5A current capacity (120W) and features compact dimensions (40mm width) for space-saving panel installation .

2. Key Features

Compact Design – 50% smaller than traditional power supplies, with a width of just 40mm, optimizing panel space .
High Efficiency (>92%) – Reduces heat generation and extends component lifespan .
Peak Power Boost (150%) – Delivers 150% of rated power for 5 seconds, ideal for motor startups and high-inrush loads .
Quick Wiring – Uses spring-clamp terminals, reducing installation time by 70% compared to screw terminals .
Wide Input Range – Supports 115–230V AC input with automatic voltage selection .
Long Service Life – Rated for 50,000+ hours at full load (40°C ambient)
Industrial Certifications – Complies with CE, UL, cULus, and GOST standards .

3. Technical Specifications

Parameter	Specification
Output Voltage	24V DC
Output Current	5A (120W)
Input Voltage	115–230V AC (auto-ranging)
Efficiency	>92%
Dimensions (W×H×D)	40 × 124 × 117 mm
Operating Temp.	-25°C to +70°C
Protection	Overload, short-circuit, over-temperature
