Allen-Bradley 1790-T8BV8VX Digital Expansion Module

Allen-Bradley 1790-T8BV8VX Digital Expansion Module

Allen-Bradley 1790-T8BV8VX Digital Expansion Module

  • Item NO.:

    1790-T8BV8VX
  • Payment:

    T/T
  • Price:

    $100
  • Product Origin:

    KOREA
  • Color:

    NEW
  • Product weight:

    0.15KG
  • Lead Time:

    In stock

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.



Allen-Bradley 1790-T8BV8VX Digital Expansion Module

1. Product Description

The 1790-T8BV8VX is a digital I/O expansion module from Allen-Bradley's CompactBlock LDX I/O series, designed to extend the capabilities of 1790D CompactBlock LDX I/O systems. This module provides 8 configurable digital input/output points, supporting both 24V DC and 120V AC signals for flexible industrial automation applications.

2. Key Features

  1. Flexible I/O Configuration - Each of the 8 points can be independently configured as either inputs or outputs.

  2. Dual Voltage Support - Compatible with both 24V DC and 120V AC signals.

  3. Compact Design - Space-saving form factor for installation in tight control panel spaces.

  4. Easy Installation - Uses 7 cm ribbon cable connectors for quick integration with 1790D base units.

  5. LED Status Indicators - Provides visual feedback for each channel's operational status.

  6. Industrial Durability - Operates in 0°C to 60°C (32°F to 140°F) environments.

3. Technical Specifications

Parameter Specification
I/O Points 8 (configurable as inputs or outputs)
Voltage Support 24V DC / 120V AC
Current Rating 2A per point (relay), 0.5A (solid-state)
Communication DeviceNet (via base unit)
Mounting DIN rail (35 mm)
Operating Temp. 0°C to 60°C
Protection Rating IP20
Certifications CE, UL, CSA

4. Applications

  • Material Handling Systems - Conveyor control and sensor interfacing

  • Packaging Machinery - Actuator and solenoid control

  • Light Industrial Automation - Small-scale distributed I/O solutions

  • Process Control - Valve and pump monitoring

5. Installation & Precautions

  1. Base Unit Required - Must be connected to a 1790D CompactBlock LDX base unit.

  2. Wiring Compliance - Use shielded cables in high-noise environments.

  3. Load Matching - Ensure per-point current does not exceed ratings.

  4. Environmental Limits - Avoid condensation or excessive dust (IP20 rating).

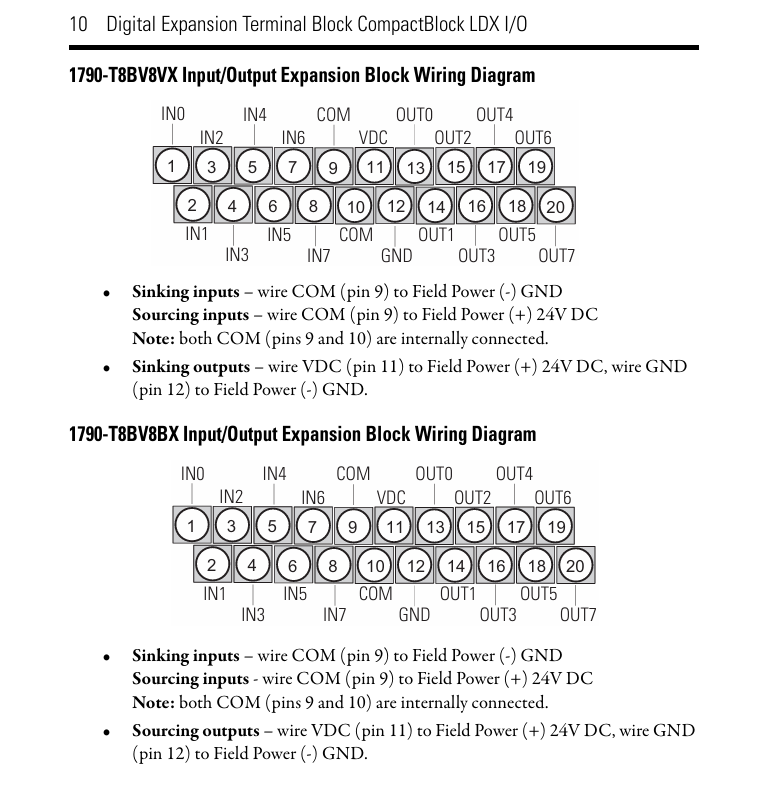

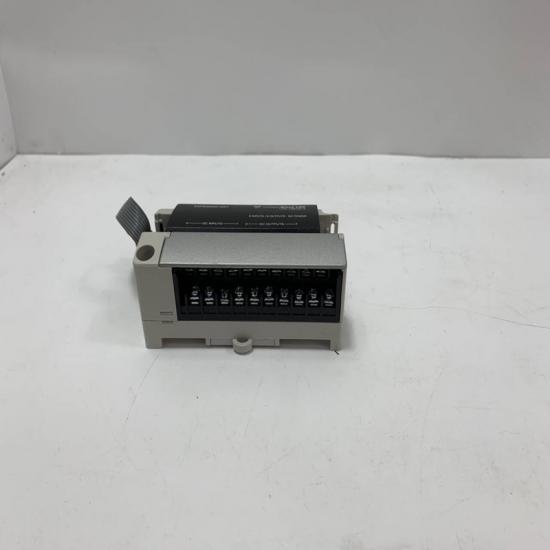

The structure and details of the product:
