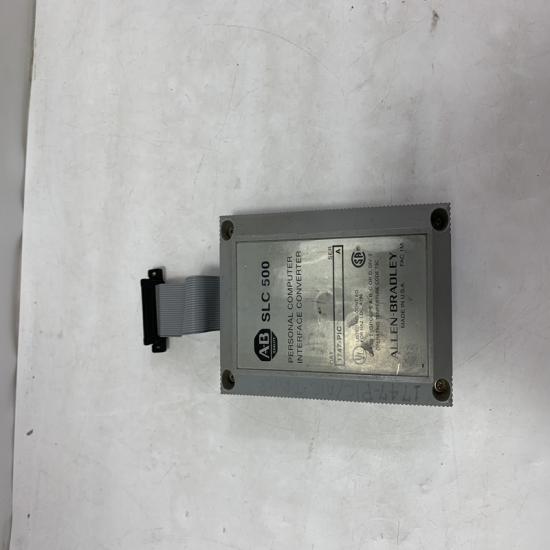

Allen-Bradley 1747-PIC Interface Converter

1. Product Description

The 1747-PIC is an RS-232 to DH-485 interface converter designed for Allen-Bradley SLC 500 series PLCs. It enables communication between personal computers (PCs) and SLC 500 controllers via Data Highway Plus (DH+) networks, eliminating RS-232 bottlenecks and improving response times in industrial automation applications .

2. Key Features

  1. Communication Protocol Conversion – Converts RS-232 signals to DH-485 protocol, facilitating PLC programming and monitoring .

  2. Compatibility – Works with SLC 5/02, 5/03, 5/04, and 5/05 processors .

  3. Easy Integration – Supports RSLogix 500 and 6200 programming software for PLC configuration .

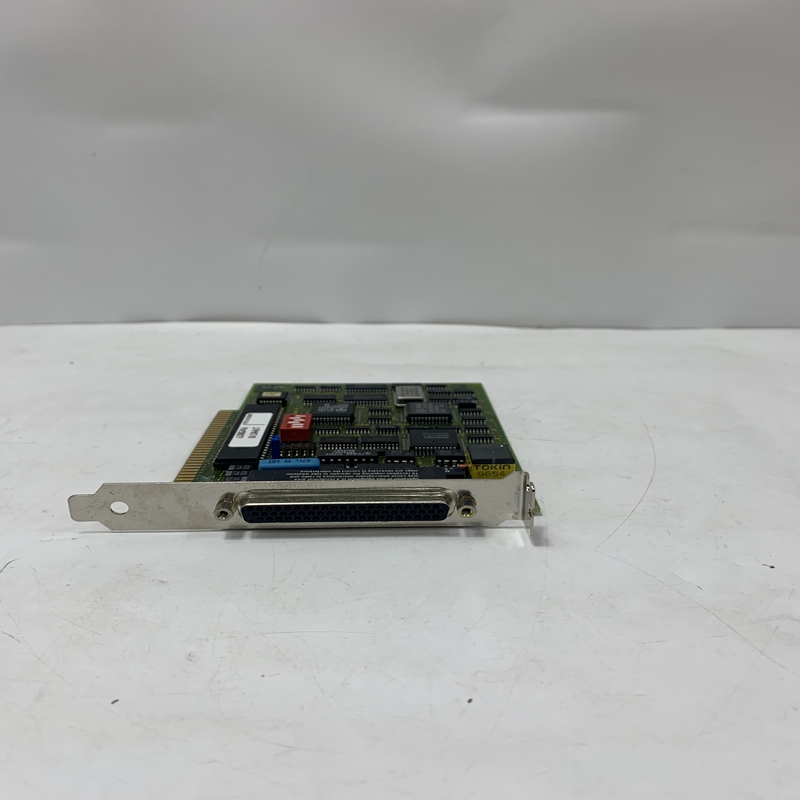

  4. Compact Design – Half-size 8-bit ISA card, compatible with standard PC ISA slots .

  5. LED Diagnostics – Provides status indicators for network and communication health .

3. Technical Specifications

Parameter Specification
Interface Type RS-232 to DH-485
Compatible PLCs SLC 5/02, 5/03, 5/04, 5/05
Bus Interface 8-bit ISA (compatible with 16-bit slots)
Power Requirements 5V DC @ 0.4A, ±12V DC @ 0.04A
Operating Temp. 0°C to 60°C (32°F to 140°F)
Certifications CE, UL, CSA

4. Applications

  • PLC Programming & Monitoring – Connects PCs to SLC 500 PLCs for real-time data logging and control .

  • Legacy System Integration – Bridges older PLC-2/3/5 systems with modern PCs .

  • Industrial Automation – Used in manufacturing, energy, and process control systems .

5. Installation & Precautions

  1. PC Compatibility – Verify PC motherboard support for 8-bit ISA slots .

  2. Network Configuration – Assign unique node addresses to avoid conflicts .

  3. Environmental Limits – Avoid condensation or extreme temperatures .

The structure and details of the product:
