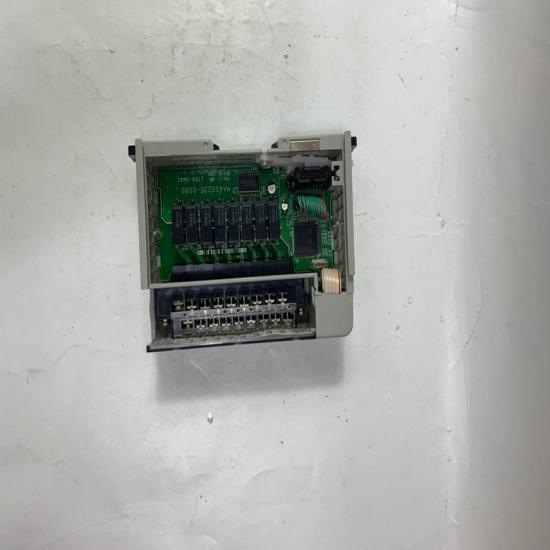

Allen-Bradley 1769-OW8I Compact I/O Relay Output Module

Product Description

The 1769-OW8I is an 8-channel isolated relay output module designed for Allen-Bradley CompactLogix and MicroLogix 1500 control systems. It features individually isolated relay contacts, allowing each channel to operate at different voltage levels (AC or DC), making it ideal for mixed-voltage industrial automation applications .

Key Features

Isolated Relay Outputs
- 8 normally open (NO) relay channels, each independently isolated (1,500V AC) .
- Supports 5–265V AC or 5–125V DC per channel .
High Load Capacity
- 2.5A per point (resistive load) .
- 16A max per module (derating required for inductive loads) .
Robust Industrial Design
- Removable terminal block (RTB) for easy wiring .
- DIN rail or panel mounting (compact 35mm width) .
Diagnostics & Protection
- Per-point LED status indicators for troubleshooting .
- Short-circuit and overcurrent protection .
Compatibility
- Works with CompactLogix L3x, MicroLogix 1500, and Compact GuardLogix .

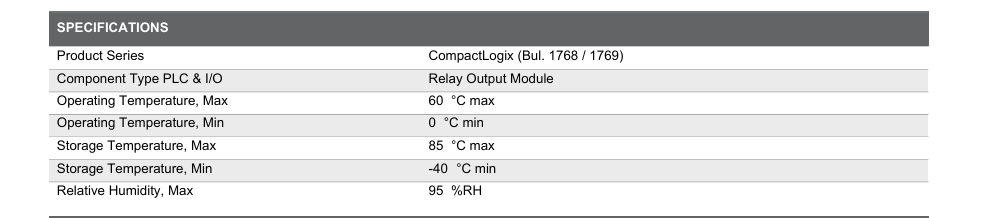

Technical Specifications

Parameter	Value
Model	1769-OW8I
Output Type	8 isolated relay (NO)
Voltage Range	5–265V AC / 5–125V DC
Max Current	2.5A per point (resistive)
Isolation Voltage	1,500V AC (channel-to-ground)
Power Consumption	5.1V @ 125 mA, 24V @ 100 mA
Operating Temp.	0°C to +60°C
Dimensions	118 × 35 × 87 mm
Weight	~0.5 kg

Applications

Motor Control (contactor switching) .
HVAC Systems (fan/pump relay control).
Packaging Machines (actuator control) .

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity .
- Ensure proper fusing for inductive loads .
Maintenance
- Monitor relay lifespan (mechanical: 10M cycles / electrical: 100K cycles).
Configuration
- Program via RSLogix 5000 or Studio 5000 .
