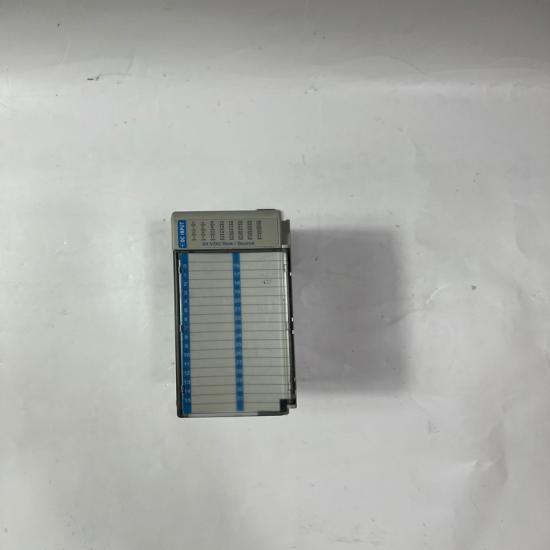

Allen-Bradley 1769-IQ32 Compact I/O Module

Product Overview

The Allen-Bradley 1769-IQ32 is a high-density 32-channel digital input module from the Compact I/O series, designed for industrial automation systems. It provides 24V DC sinking/sourcing inputs, making it ideal for applications requiring large-scale discrete signal monitoring, such as manufacturing, process control, and material handling .

Key Features

1. High-Density Input Configuration

   • 32 digital input channels (24V DC), grouped into 4 isolated banks of 8 channels each .

   • Supports sinking (NPN) and sourcing (PNP) input wiring for flexible sensor integration .

2. Robust Industrial Design

   • Isolation: 500V AC (channel-to-bus) and 1250V AC (group-to-group) .

   • Operating temperature: -20°C to +60°C (storage: -40°C to +85°C) .

   • IP20 protection (requires enclosure for harsh environments) .

3. Advanced Diagnostics & Flexibility

   • Per-channel LED indicators for real-time status monitoring .

   • Configurable input filtering (0.1ms to 12.8ms) to reduce noise sensitivity .

   • Hot-swappable with removable terminal blocks (Phoenix Contact technology) .

4. Seamless Integration

   • Compatible with CompactLogix 5370 (L3x), MicroLogix 1500, and GuardLogix controllers .

   • Supports EtherNet/IP, ControlNet, and DeviceNet via communication adapters .

5. Easy Installation

   • DIN rail or panel mounting .

   • Power distance limitation: Max 8 modules from the power supply .

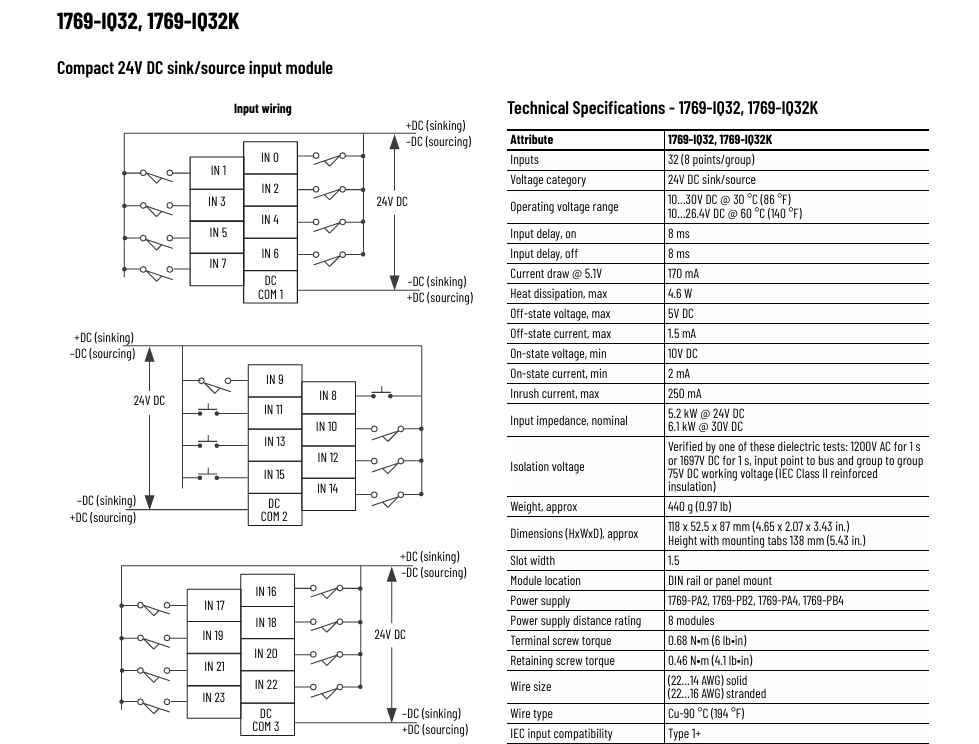

Technical Specifications

Applications

• Manufacturing: Monitoring limit switches, push buttons, and sensors .

• Process Control: Valve position feedback, pump status detection .

• Material Handling: Conveyor system input monitoring .

The structure and details of the product：
