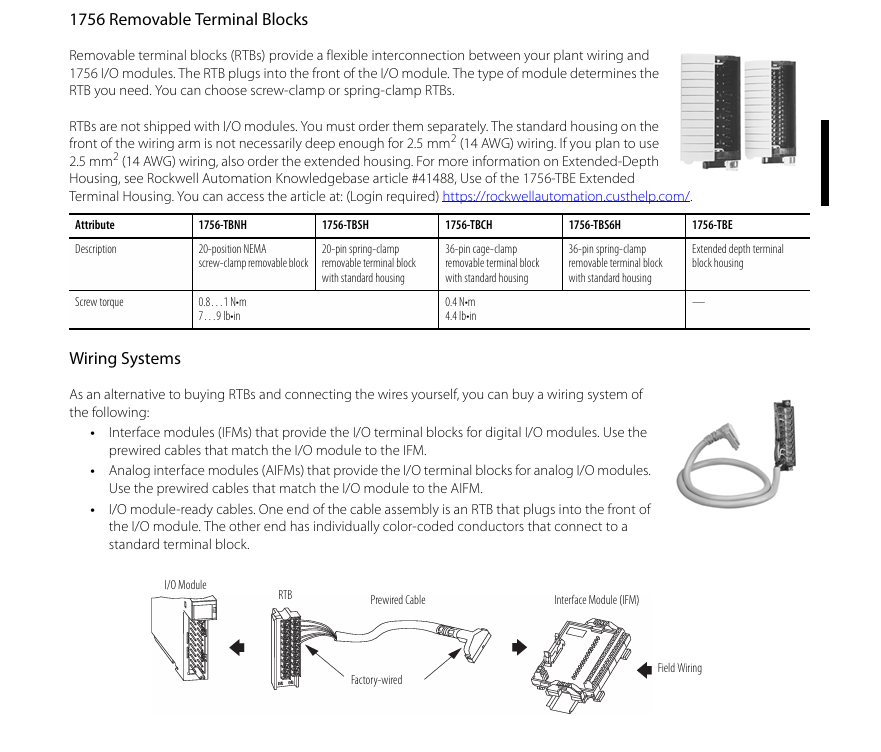

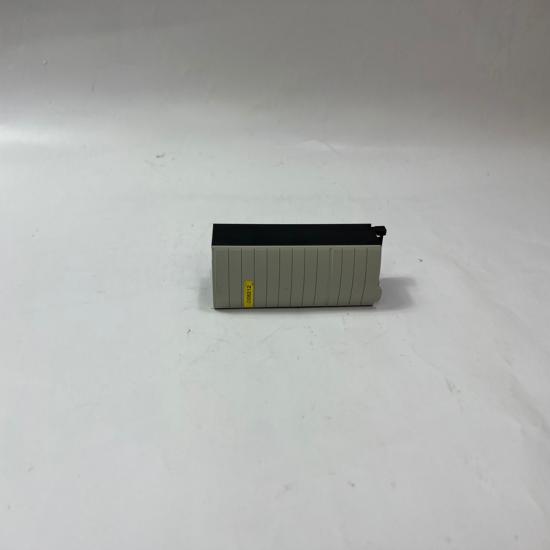

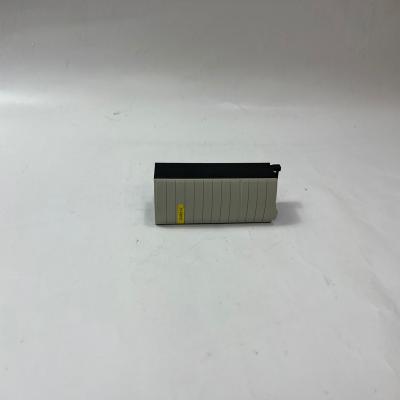

Allen-Bradley 1756-TBCH ControlLogix 36-Pin Screw Terminal Block (RTB)

1. Product Description

The 1756-TBCH is a removable terminal block (RTB) designed for Allen-Bradley ControlLogix I/O modules. It provides a modular and flexible interface for connecting field wiring to 1756-series I/O modules, enabling easy installation and maintenance in industrial automation systems .

2. Key Features

36-Pin Cage Clamp – Supports secure wiring with 0.33–2.1 mm² (22–14 AWG) solid or stranded copper wire .
Tool-less Installation – Features screw terminals (0.5 N·m torque recommended) for quick and reliable connections .
Hot-Swappable (RIUP) – Allows module replacement without system shutdown .
Standard Enclosure – Includes a 2.5 mm² (14 AWG) wiring arm depth for easy cable management .
Industrial Durability – Operates in 0°C to 60°C environments with 30g shock resistance .

3. Technical Specifications

Parameter	Specification
Terminal Type	36-pin cage clamp (screw type)
Wire Size	0.33–2.1 mm² (22–14 AWG)
Torque Requirement	0.5 N·m (recommended)
Operating Temp.	0°C to 60°C
Dimensions	5.51 × 4.41 × 5.71 in (140 × 112 × 145 mm)
Weight	0.3 lbs (0.14 kg)
Certifications	CE, UL, CSA, RoHS

4. Applications

Process Control – Used in PLC-based automation systems for valve, pump, and sensor wiring .
Manufacturing Automation – Connects I/O modules in assembly lines and robotic cells .
Power Distribution – Organizes wiring in ControlLogix cabinets .
