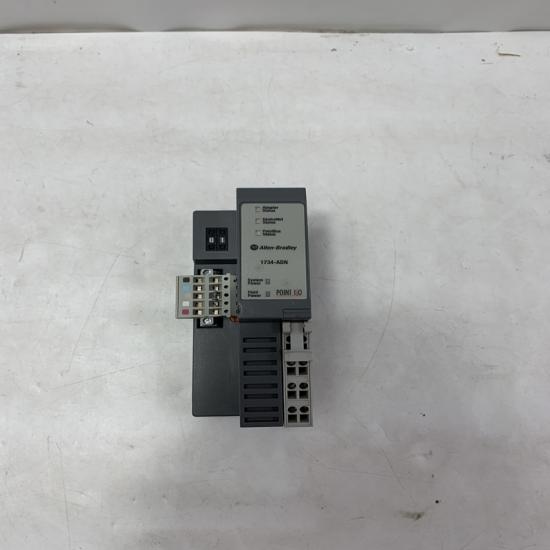

Allen-Bradley 1734-ADN POINT I/O DeviceNet Adapter

1. Product Description

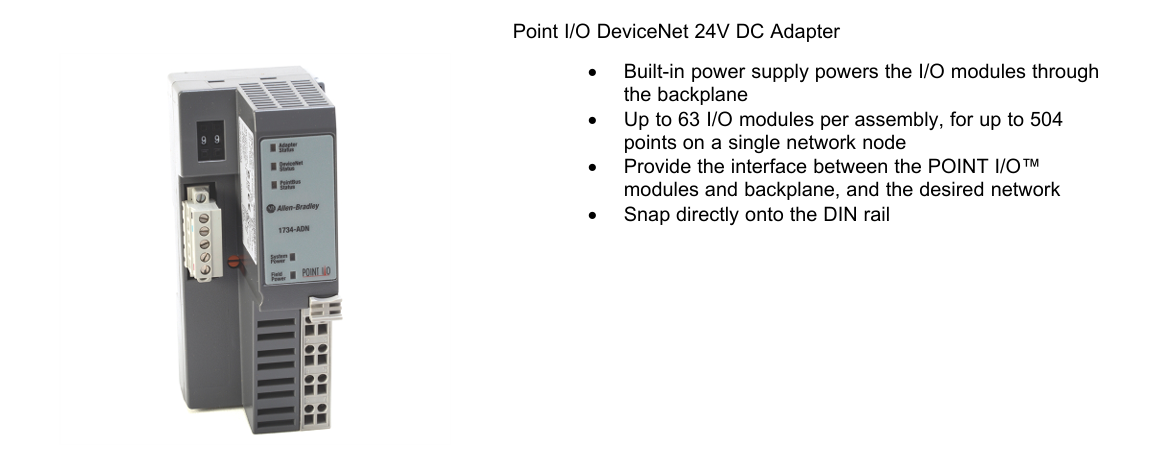

The 1734-ADN is a DeviceNet communication adapter for Allen-Bradley’s POINT I/O system, enabling seamless integration of POINT I/O modules into DeviceNet networks. It serves as an interface between the DeviceNet master and POINT I/O modules, supporting real-time control and monitoring in industrial automation systems .

2. Key Features

Dual-Network Operation – Acts as a bridge between the DeviceNet network and POINTBus backplane, managing data exchange between I/O modules and the PLC .
Auto-Configuration – Supports automatic baud rate detection (125K, 250K, 500K, or 1M baud) for easy network setup .
Hot-Swappable (RIUP) – Can be replaced without powering down the system .
Diagnostic LEDs – Provides status indicators for module health, network communication, and power .
Flexible Expansion – Supports up to 63 POINT I/O modules (depending on network configuration) .
Industrial Durability – Operates in -20°C to +55°C environments with IP20 protection .

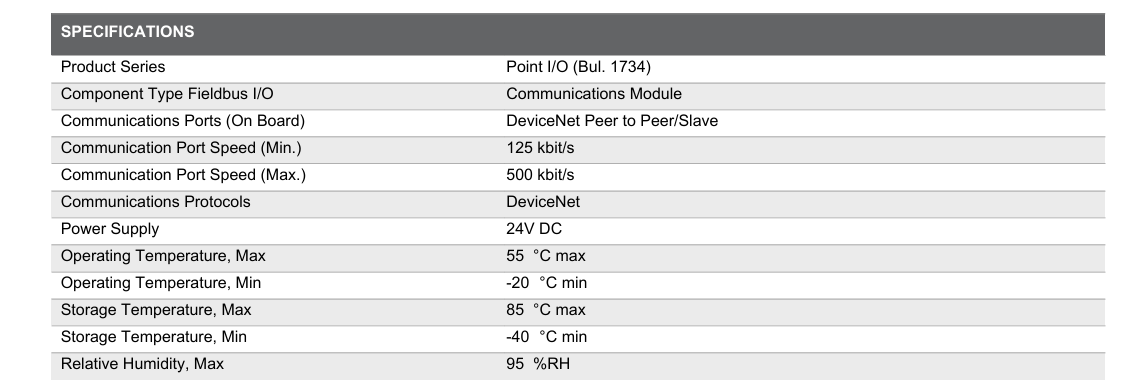

3. Technical Specifications

Parameter	Specification
Input Voltage	24V DC (10–31.2V DC range)
Current Consumption	50 mA @ 24V DC
Communication Protocol	DeviceNet
Baud Rate	125K, 250K, 500K, or 1M baud
Isolation Voltage	50V (continuous)
Mounting	DIN rail (35 mm)
Dimensions	76.2 × 54.9 × 133.4 mm
Certifications	CE, UL, CSA, RoHS

4. Applications

Manufacturing Automation – Connects sensors, actuators, and I/O modules in assembly lines .
Process Control – Integrates with PLCs for real-time monitoring in chemical plants .
Material Handling – Used in conveyor and robotic control systems .

5. Installation & Precautions

Network Configuration – Requires RSNetWorx for DeviceNet for module addressing and parameter setup .
Wiring Compliance – Use shielded cables to minimize electrical noise .
Environmental Limits – Avoid condensation or extreme temperatures .
