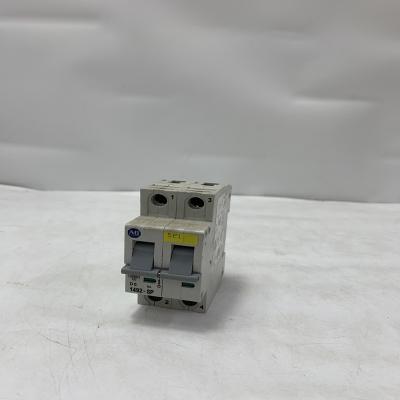

Allen-Bradley 1492-SP2C060 Miniature Circuit Breaker

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Allen-Bradley 1492-SP2C060 Miniature Circuit Breaker Product Information

Product Description

Detailed Parameters

• Electrical Specifications:
  • Poles: 2 poles (double-pole), capable of 切断 both live and neutral wires simultaneously for comprehensive protection.
  • Rated Voltage: 600V AC (UL/CSA), 250V DC (suitable for DC circuits).
  • Rated Current: 60A, with Type B tripping characteristic per IEC 60898-1 (trips when short-circuit current ≥5×Iₙ, operating time ≤0.1s).
  • Breaking Capacity: 10kA at 240V AC, 5kA at 600V AC, capable of safely interrupting common industrial short-circuit currents.
  • Tripping Characteristic: Inverse time overcurrent protection (delayed tripping for overloads, instantaneous tripping for short circuits), with overload tripping curve compliant with IEC 60898-1.
• Mechanical Specifications:
  • Dimensions: Approximately 36mm (W) × 89mm (H) × 65mm (D), DIN rail mounted (35mm standard rail).
  • Operation: Manual operating handle (clear ON/OFF markings), lockable in "OFF" position (with optional locking accessory).
  • Wiring: Top-in/bottom-out, compatible with 14-4 AWG (copper conductors), terminal torque 2.5 N·m (22 lb-in).
• Environmental & Certifications:
  • Operating Temperature: -30℃~70℃, Storage Temperature: -40℃~85℃, Relative Humidity: 5%~95% (non-condensing).
  • Protection Class: IP20 (for cabinet installation), meeting industrial dust resistance requirements.
  • Certifications: UL 489, CSA C22.2 No.5, CE certified, compliant with IEC 60898-1 low-voltage circuit breaker standards.

Advantages and Features

• Reliable Overcurrent Protection: Type B tripping characteristic ensures instantaneous tripping (≤0.1s) during short circuits (current ≥300A), quickly cutting off circuits to protect cables and equipment from high-current damage.
• 2-Pole Comprehensive Protection: 2-pole design interrupts both live and neutral wires, ideal for AC 220V/380V circuits or DC 250V circuits, avoiding neutral wire electrification risks from single-pole disconnection.
• Compact Installation: 36mm width fits dense cabinet installations, allowing side-by-side mounting with other 1492-SP series breakers, saving space for compact power distribution.
• Industrial Durability: Wide temperature range (-30℃~70℃) adapts to harsh environments; impact-resistant thermoplastic housing with 10g vibration resistance (10~500Hz) ensures long-term stability.
• Flexible Compatibility: Mixes with other 1492-SP series current ratings on DIN rails, enabling customized power distribution systems for diverse load requirements.

Application Fields

• Control Cabinet Power Distribution: Protects power circuits of PLCs, servo drives, and I/O modules in automation equipment cabinets as branch circuit protection.
• Production Line Power Distribution: Controls segmented power in assembly lines; isolates faulty segments during short circuits without affecting other areas.
• Machine Tool Electrical Systems: Protects auxiliary equipment (spindle motors, cooling pumps) in CNC machines from overcurrent due to motor jamming.
• Small Distribution Panels: Serves as main protection in workshop small panels for ≤60A circuits, replacing fuses to reduce maintenance costs.
• New Energy Equipment: Protects low-voltage DC circuits (250V DC) in PV inverters and energy storage systems, meeting new energy safety standards.

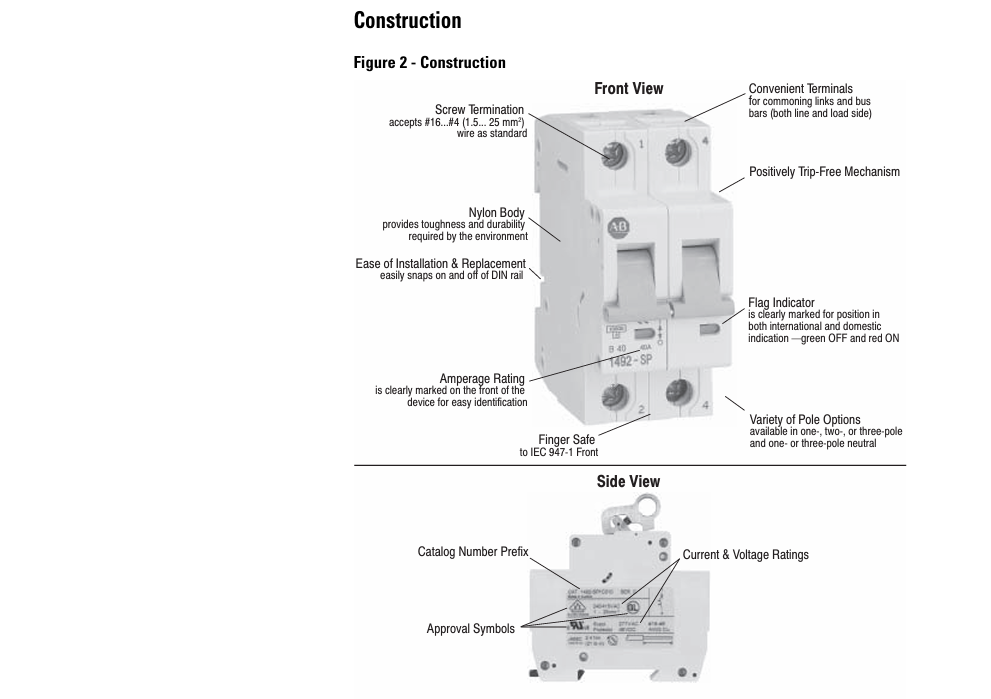

The structure and details of the product：
