Product Overview

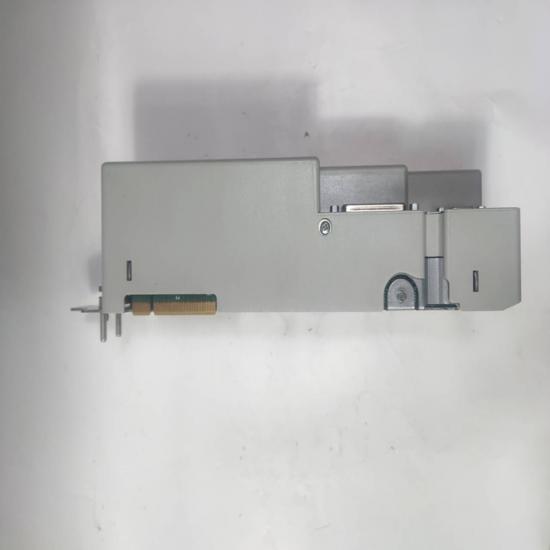

The Allen-Bradley 1440-TPR06-00RE is an XM-360 Process Module from Rockwell Automation’s XM Condition Monitoring family. Although sometimes described as a vibration monitoring module, this model is primarily a 6-channel process measurement module used for monitoring analog voltage and current signals from industrial sensors and transmitters.

It can measure process variables such as temperature, pressure, flow, and other analog signals, and transmit measurement data for condition monitoring and industrial control applications.

Main Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model: 1440-TPR06-00RE
• Product Type:
  • XM-360 Process Module
  • Condition Monitoring Module
• Series:
  • Bulletin 1440 XM

Input Specifications

• Number of Channels:
  • 6 channels
• Input Type:
  • DC voltage input
  • Loop current input
• Configurable Input Ranges:
  • 0…5 VDC
  • 0…10 VDC
  • ±5 VDC
  • 1…5 VDC
  • 0…20 mA
  • 4…20 mA
• Input Isolation:
  • Up to 250V isolation per input
• Input Impedance:
  • Current input: approx. 50 Ω
  • Voltage input: approx. 1 MΩ

Output Specifications

• Analog Outputs:
  • 2 isolated banks
  • 3 outputs per bank
• Output Signal:
  • 4…20 mA
• Maximum Load:
  • 600 Ω

Communication & Power

• Communication:
  • DeviceNet network
  • Serial configuration interface
• Power Supply:
  • 21.6…26.4 VDC
• Typical Current Consumption:
  • Approx. 170 mA
• Maximum Current Consumption:
  • Approx. 300 mA

Advantages & Features

• Six-channel analog process monitoring capability
• Supports both voltage and current transmitter signals
• Built-in input isolation improves signal reliability
• Provides engineering unit conversion and rate-of-change monitoring
• Supports industrial condition monitoring applications
• Reduces need for separate signal conditioning equipment
• Compatible with Rockwell Automation XM monitoring systems

Applications

• Industrial process monitoring
• Pump and motor condition monitoring
• Temperature monitoring systems
• Pressure and flow measurement
• Factory automation equipment
• Machine health monitoring
• Remote condition monitoring systems

Compatible Devices

Common field devices include:

• 4-20mA pressure transmitters
• Temperature transmitters
• Flow sensors
• Level sensors
• Industrial analog measurement devices

Important Notes

• 1440-TPR06-00RE is not a standard PLC I/O module; it belongs to the XM Condition Monitoring series.
• Verify DeviceNet communication compatibility before replacement.
• Configure channels using the appropriate XM configuration software.
• Confirm sensor signal type (voltage/current) before wiring.
• Ensure 24VDC supply is within the specified range.
