ABB TU860 (3BSE078710R1) Termination Unit

1. Key Parameters

• Product Model: TU860
• Order Code: 3BSE078710R1
• Product Series: ABB TU Series Advanced Termination Units (High-Density S800 I/O Wiring, Diagnostic-Enabled Termination)
• Core Function: Provides high-density termination for field wiring to ABB S800 I/O modules; enables integrated signal diagnostics; organizes power and signal wiring; supports safety-critical circuits; simplifies maintenance and troubleshooting
• Electrical & Terminal Specifications:

  Parameter	Details	Performance Metrics
  Terminal Configuration	- Terminal Type: Spring-clamp terminals (copper alloy, tin-plated) for fast wiring - Number of Terminals: 64 terminals (32 signal/common pairs + 8 power terminals) - Wire Gauge Support: 0.14mm²~2.5mm² (26~14 AWG) stranded/solid - Terminal Spacing: 5.08mm (0.2") pitch with color-coded zones (signal/power)	Accommodates 98% of industrial field wiring sizes; spring-clamp design reduces wiring time by 40% vs. screw-clamp terminals
  Electrical Ratings	- Voltage Rating: 600V AC/DC (max, signal terminals); 250V AC/DC (power terminals) - Current Rating: 10A (per signal terminal); 16A (per power terminal) - Insulation Resistance: ≥200MΩ (at 500V DC, 25℃) - Dielectric Strength: 3kV AC (1min, between signal and power terminals)	Supports high-power field devices (e.g., small actuators) and ensures safe isolation between signal and power circuits
  Diagnostic Features	- Signal Monitoring: Open/short circuit detection (per signal terminal) - Status Indicators: LED per terminal (green = normal, red = fault) - Diagnostic Output: 2 digital fault signals (for integration with ABB DI modules) - Fault Logging: Stores last 10 fault events (retrievable via 800xA)	Reduces mean time to repair (MTTR) by 60%—LED indicators and fault logging enable quick identification of wiring issues (e.g., broken sensor wires)
  Mechanical Protection	- Protection Rating: IP20 (finger protection, IEC 60529) - Vibration Resistance: 10~500Hz, 1.5g acceleration (no terminal loosening) - Torque Range: N/A (spring-clamp, tool-free wiring) - Material Flammability: UL 94 V0 (terminal block housing, PA66+GF)	Prevents accidental contact with live parts; spring-clamp terminals maintain connection integrity under vibration (e.g., near motors)

• Mechanical Specifications:
  • Dimensions: 100mm (W) × 180mm (L) × 80mm (H) (compatible with ABB S800 I/O racks)
  • Mounting Type: Direct snap-on to ABB S800 I/O racks; EN 50022 DIN rail mount (35mm, top-hat)
  • Housing Material: Glass-fiber reinforced polyamide (PA66+GF, impact-resistant, RAL 7035)
  • Weight: Approximately 420g
  • Connection Type: Spring-clamp terminals (field wiring); integrated connector (S800 I/O module interface)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Chemical Resistance: Resistant to mineral oil, grease, and mild industrial detergents (IEC 60068-2-54)
  • Altitude Rating: Up to 2000m (no derating required)
• Compliance Standards: IEC 60947-7-1 (low-voltage switchgear), UL 1059 (terminal blocks), CE, RoHS, ABB S800 I/O Compatibility Standard V6.0+

2. Key Features

• High-Density 64-Terminal Design: 64 terminals (32 signal pairs + 8 power terminals) in a standard S800 rack footprint—reduces cabinet space by 30% vs. lower-density termination units (e.g., TU805K01), ideal for large-scale I/O installations (e.g., chemical plant control rooms with 100+ sensors).
• Tool-Free Spring-Clamp Terminals: Eliminates torque tools for wiring—enables fast, consistent terminal connections (3x faster than screw-clamp terminals) and reduces wiring errors (e.g., over-tightened/under-tightened screws) during commissioning.
• Integrated Diagnostic & LED Indicators: Per-terminal LED status (green/red) and open/short circuit detection—enables at-a-glance fault identification (e.g., a red LED immediately flags a broken 4~20mA sensor wire) without specialized test equipment.
• Signal-Power Isolation: 3kV dielectric strength between signal and power terminals—prevents power circuit noise (e.g., from motor drives) from interfering with sensitive analog signals (e.g., temperature, pressure), ensuring measurement accuracy (±0.1% for connected AI modules).
• S800 I/O Plug-and-Play Integration: Direct snap-on to S800 racks and pre-configured interface with ABB I/O modules (e.g., AI893, DI825)—no custom wiring adapters needed; diagnostic signals automatically integrate with 800xA DCS for centralized monitoring.
• Wide Environmental Tolerance: -25℃~+70℃ operating range and resistance to industrial chemicals—performs reliably in extreme conditions: cold storage (food processing), high-temperature process zones (refineries), and washdown environments (pharmaceuticals).
• Safety Compliance: IP20 finger protection, UL 94 V0 flammability rating, and global safety certifications—meets OSHA, EU Machinery Directive, and IEC 61010 requirements, reducing electrical accident risks during maintenance.

3. Application Fields

• Large-Scale S800 I/O System Termination: Primary application—wiring for high-density ABB I/O racks:
  • Oil Refinery Process Control Cabinets: Terminates 64 channels of 4~20mA pressure/temperature sensors and 24V DC valve position switches for S800 AI/DI modules; LED diagnostics enable quick fault detection (e.g., a shorted sensor in a distillation column), reducing downtime during process upsets.
  • Nuclear Power Plant Auxiliary Systems: Connects safety-critical sensor wiring (e.g., coolant level, radiation detectors) to S800 I/O modules; signal-power isolation (3kV) prevents interference with safety systems, complying with IEC 61513 nuclear standards.
• Process Industry High-Density Wiring: Streamlining complex signal routing:
  • Pharmaceutical Batch Manufacturing: Manages wiring for 32 analog sensors (reactor pH/temperature) and 8 power circuits (small agitator motors); tool-free spring-clamp terminals speed up wiring changes during batch recipe swaps, complying with FDA change-control requirements.
  • Water Treatment Plant Control Rooms: Organizes 64 channels of flow meter, level switch, and pump status signals; diagnostic fault logging (via 800xA) tracks intermittent wiring issues (e.g., loose terminals from vibration), ensuring reliable water distribution monitoring.
• Manufacturing Automation Wiring: Simplifying production line connections:
  • Automotive Body Shop Robotics: Terminates 32 digital proximity sensor signals (robot part detection) and 8 power circuits (gripper actuators); vibration resistance (1.5g) maintains connections despite robot motion, ensuring consistent assembly line performance.
  • Electronics Semiconductor Fabs: Connects sensitive analog sensors (wafer temperature) and low-voltage digital signals to S800 I/O; chemical resistance withstands cleanroom detergents, while signal isolation prevents EMI from nearby high-frequency equipment.
• Power Generation Critical Monitoring: Wiring for auxiliary equipment:
  • Gas Turbine Auxiliary Cabinets: Terminates 32 temperature sensor signals (turbine bearings) and 8 power circuits (lubrication pumps); wide temperature range (-25℃~+70℃) handles turbine enclosure heat, ensuring reliable monitoring of critical rotating equipment.
  • Solar Farm Inverter Control: Organizes 64 channels of current sensor and breaker status signals for S800 DI modules; diagnostic output integrates with 800xA to alert operators of wiring faults (e.g., a broken sensor wire in a solar array), minimizing energy production losses.

4. Precautions

• Terminal Wiring Compatibility (Critical): Ensure wire gauge matches 0.14mm²~2.5mm² (26~14 AWG) range—undersized wires (＜0.14mm²) cause poor contact, while oversized wires (＞2.5mm²) damage spring-clamp terminals; use ABB’s wire gauge guide for verification.
• Installation & Wiring Safety:
  • Polarity & Zone Separation: Follow color-coded zones (blue = signal, red = power) and maintain correct polarity for analog signals—crossed polarity causes AI module measurement errors, while mixing signal/power wiring increases noise interference.
  • Grounding Connection: Connect the unit’s dedicated ground terminal to cabinet safety ground (resistance ≤1Ω)—improper grounding reduces diagnostic accuracy and increases EMI susceptibility; use 4mm² green/yellow ground wire.
  • Spring-Clamp Operation: Use the provided tool to open spring clamps during wire insertion—forcing wires without tool assistance damages clamp mechanisms, leading to intermittent connections; confirm wire "click" to ensure secure seating.
• Operation & Maintenance:
  • Diagnostic Alert Monitoring: Never ignore red LED indicators or 800xA diagnostic faults—unaddressed open/short circuits can cause I/O module damage or process deviations (e.g., incorrect chemical dosing); resolve faults within 24 hours for critical circuits.
  • 定期检查: Inspect quarterly for:
    • Damaged terminal clamps (from improper wire insertion)
    • Faded LED indicators (replace unit if LEDs fail)
    • Housing cracks (from mechanical impact during maintenance)
      Clean terminals with a dry brush to remove dust—avoid liquid cleaners (damage insulation).
  • Module Compatibility: Ensure S800 I/O modules have firmware ≥V6.0—older firmware may not support TU860 diagnostic signals, leading to "diagnostic fault" false alarms; update I/O firmware via Control Builder M before installation.
• Environmental Limitations:
  • Temperature Extremes: Do not operate above +70℃ or below -25℃—high temperatures degrade spring-clamp metal components, while extreme cold makes PA66+GF housing brittle; use cabinet heaters/coolers in extreme zones to maintain -25℃~+70℃.
  • Chemical Exposure: Avoid direct contact with strong solvents (e.g., acetone, MEK) and concentrated acids—these dissolve the terminal housing and insulation; in chemical plants, install the unit in sealed protective enclosures.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine ABB TU860 (3BSE078710R1) units—non-genuine alternatives have substandard spring clamps (lose tension over time) and no diagnostic compatibility, leading to increased wiring faults and I/O module damage.
  • Spare Inventory: Maintain 2~3 spare units per 5 high-density I/O racks—TU860 failures disconnect 64 channels of field devices; spares reduce downtime from 1+ week (delivery) to 1 hour for mission-critical systems (e.g., refinery process control)
•
•
•

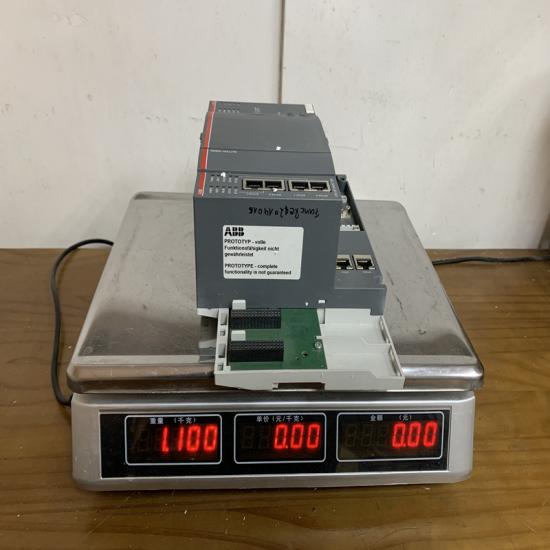

The structure and details of the product：
