ABB 1KHL178016R0001F (PSM03) Power Module

1. Key Parameters

• Product Model: PSM03
• Order Code: 1KHL178016R0001F
• Product Series: ABB PSM Series Industrial Power Modules (Low-Voltage Auxiliary Power, Automation Component Supply)
• Core Function: Provides stabilized DC power to ABB automation components; conditions input power to reduce noise; protects against overloads and short circuits; ensures reliable operation of control system peripherals
• Electrical & Power Specifications:

  Parameter	Details	Performance Metrics
  Power Input	- Input Voltage Range: 100V AC~240V AC (50/60Hz, universal input) - Input Current: 0.8A (max, at 100V AC); 0.4A (max, at 240V AC) - Input Protection: Fuse (1A, slow-blow); surge immunity (2kV, IEC 61000-4-5) - Efficiency: ≥85% (at full load)	Universal input eliminates regional voltage restrictions, simplifying global deployments
  Power Output	- Output Voltage: 24V DC (regulated, ±2% accuracy) - Output Current: 3A (continuous); 4.5A (peak, 10s max) - Output Ripple & Noise: ≤100mVpp (at full load) - Load Regulation: ≤1% (from 10%~100% load)	Stable 24V DC output ensures reliable operation of ABB I/O modules (e.g., DI825, AI893), communication interfaces, and low-power sensors
  Protection Features	- Overload Protection: Current limiting (120%~150% of rated current, auto-recovery) - Short-Circuit Protection: Hiccup mode (prevents overheating during sustained shorts) - Overvoltage Protection: Clamping (28V DC max, latching) - Over-Temperature Protection: Thermal shutdown (≥90℃, auto-recovery)	Protects connected ABB components from power anomalies (e.g., voltage spikes, short circuits) common in industrial environments
  Safety & Compliance	- Isolation Rating: 3kV AC (input to output, 1min) - Safety Certifications: IEC 60950-1, UL 60950-1, CSA C22.2 No. 60950-1 - EMI/EMC Compliance: EN 61000-6-2 (immunity); EN 61000-6-4 (emission) - Insulation Class: Class II (double insulation)	Meets global safety standards for industrial power supplies, ensuring safe integration in control cabinets

• Mechanical Specifications:
  • Dimensions: 70mm (W) × 120mm (L) × 50mm (H) (compact design for DIN rail mounting)
  • Mounting Type: EN 50022 DIN rail (35mm top-hat rail); panel mount optional (via brackets)
  • Housing Material: Polycarbonate (UL 94 V0, flame-retardant) with aluminum base (heat dissipation)
  • Weight: Approximately 250g
  • Cooling Method: Convection cooling (no fans, maintenance-free)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Altitude Rating: Up to 2000m (derated by 1% per 100m above 1000m)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27; no mechanical damage)
• Compliance Standards: CE, RoHS, REACH, ABB Automation System Compatibility Standard (800xA V6.0+, AC800M V5.1+)

2. Key Features

• Universal Input (100V~240V AC): Eliminates voltage selectors, enabling seamless installation in global markets (e.g., 110V AC in North America, 230V AC in Europe/Asia) without hardware modifications, reducing inventory complexity.
• Stable 24V DC Output: ±2% voltage accuracy and ≤100mVpp ripple ensure clean power for sensitive ABB components—prevents data corruption in I/O modules (e.g., AI893 analog measurement errors) and communication failures in fieldbus interfaces (e.g., CI801).
• Fan-Free Convection Cooling: Maintenance-free operation with no moving parts—avoids dust accumulation (critical in manufacturing environments) and eliminates fan-related failure points, extending service life to 10+ years.
• Compact DIN Rail Design: 70mm-wide form factor fits standard 35mm DIN rails—saves 40% space compared to bulkier power supplies, enabling dense installation alongside S800 I/O racks, termination units (e.g., TU860), and circuit breakers (e.g., S203-B25).
• 3kV Input-Output Isolation: Prevents ground loops and noise transfer between input power and connected devices—critical in industrial facilities with distributed ground potentials (e.g., factory floors with multiple machinery grounding points).
• Wide Environmental Tolerance: -25℃~+70℃ operating range and 1g vibration resistance—operates reliably in extreme conditions: cold storage (food processing), high-temperature process zones (refineries), and mobile equipment (construction machinery).
• Seamless ABB Compatibility: Tested for integration with ABB 800xA DCS, AC800M PLCs, and S800 I/O modules—ensures plug-and-play functionality without voltage mismatches or compatibility issues with ABB control components.

3. Application Fields

• ABB Automation Component Power Supply: Primary application—powering low-voltage ABB devices:
  • Industrial Control Cabinets: Supplies 24V DC to S800 I/O modules (DI825, AI893) and TU860 termination units; stable output ensures accurate analog signal measurement (e.g., reactor pressure) and reliable digital input detection (e.g., emergency stops).
  • AC800M PLC Peripherals: Powers CI801 fieldbus interfaces and operator panel accessories; 3kV isolation prevents noise from factory power grids interfering with fieldbus communication, reducing data transmission errors by 90%.
• Distributed Control System Auxiliary Power: Supporting distributed I/O networks:
  • Chemical Plant Remote I/O Stations: Provides 24V DC to remote S800 I/O racks and sensor networks; wide temperature range (-25℃~+70℃) handles outdoor installation near process skids, while surge immunity (2kV) withstands lightning-induced transients.
  • Water Treatment Plant Instrumentation: Powers flow meters, level sensors, and valve positioners; low ripple output (≤100mVpp) ensures stable operation of sensitive measurement devices, maintaining accuracy of water quality monitoring.
• Manufacturing Automation Power: Supporting production line controls:
  • Automotive Assembly Line Sensors: Supplies 24V DC to photoelectric sensors and barcode scanners; compact design fits in tight machinery enclosures, while overload protection withstands current spikes from sensor startup.
  • Packaging Machinery Controls: Powers small actuators and encoder interfaces; fan-free design avoids contamination in food packaging environments, complying with hygienic standards (e.g., FDA 21 CFR Part 11).
• Critical Infrastructure & Mobile Applications: Reliable power in specialized environments:
  • Oil & Gas Offshore Platforms: Powers corrosion-resistant sensors and remote I/O modules; wide humidity tolerance (5%~95% RH) withstands marine environments, while flame-retardant housing (UL 94 V0) reduces fire risk in hazardous areas.
  • Railway Signaling Systems: Provides 24V DC to trackside sensors and control modules; vibration resistance (1g) withstands train-induced shocks, ensuring reliable signaling operation and passenger safety

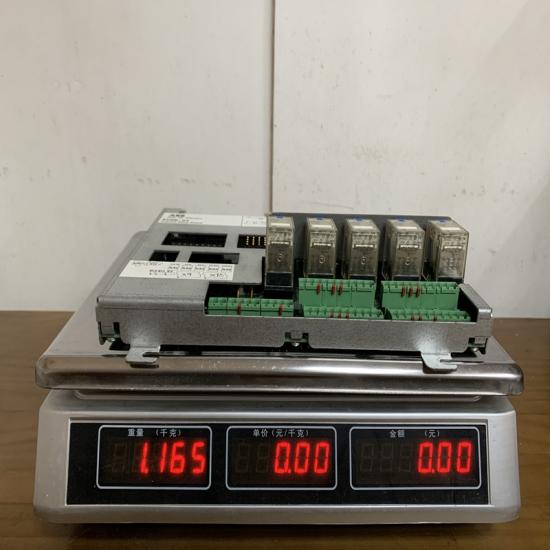

The structure and details of the product：
