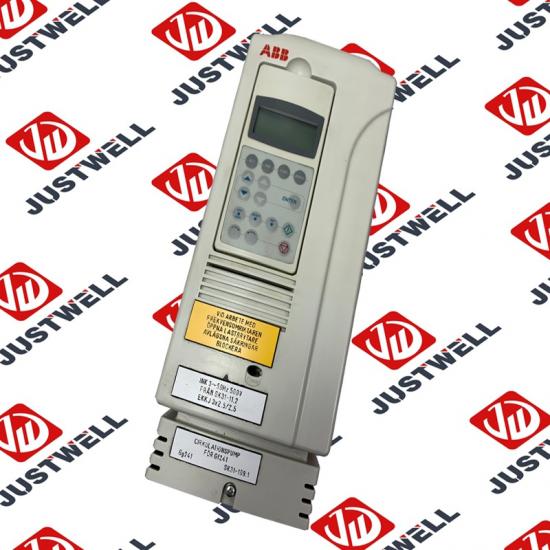

ABB ACS800 (3AXD50000155385) Drive Controller Unit

1. Key Parameters

• Product Model: ACS800
• Order Code: 3AXD50000155385
• Product Series: ABB ACS800 Series Industrial AC Drive Controllers (Heavy-Duty Motor Control, Automation System Integration)
• Core Function: Controls AC motor speed, torque, and position via variable-frequency drive (VFD) technology; integrates with ABB automation systems for centralized control; provides motor and drive protection; optimizes energy efficiency for industrial processes
• Electrical & Control Specifications:

  Parameter	Details	Performance Metrics
  Power Input	- Input Voltage: 3-phase 380V~480V AC (50/60Hz); 525V~690V AC (optional) - Input Current: 45A (max, at 400V AC, full load) - Input Power Factor: ≥0.95 (at >50% load) - Harmonic Distortion: ≤5% (with optional line reactor)	Compatible with global industrial power grids, minimizing impact on electrical infrastructure
  Power Output	- Output Voltage: 0~input voltage (3-phase, variable) - Output Current: 40A (continuous); 56A (150% overload, 60s) - Output Frequency: 0~500Hz (adjustable) - Control Mode: V/F (Voltage/Frequency), Vector Control (sensorless, encoder feedback optional)	Enables precise motor control—sensorless vector mode achieves ±0.5% speed accuracy; encoder feedback mode reaches ±0.01% accuracy
  Motor Compatibility	- Motor Type: Asynchronous (induction) AC motors; Synchronous AC motors (optional) - Motor Power Range: 15kW~22kW (at 400V AC, 50Hz) - Motor Speed Range: 0~3000rpm (base speed); 0~6000rpm (high-speed mode) - Starting Torque: 150% of rated torque (at 0rpm, vector control)	Handles heavy-duty startup loads (e.g., pumps, conveyors) without motor stalling, ensuring smooth process initiation
  Protection & Safety	- Drive Protection: Overcurrent, overvoltage, undervoltage, overheating, short-circuit (phase-phase, phase-ground) - Motor Protection: Overload, overtemperature (PTC/PTC thermistor input), bearing wear monitoring - Safety Certification: IEC 61800-5-1 (functional safety); SIL 2 capable (with optional safety module) - EMC Compliance: EN 61800-3 (Category C2, industrial environments)	Prevents drive and motor damage from electrical faults; safety features meet machine safety standards (ISO 13849-1)

• Mechanical Specifications:
  • Dimensions: 280mm (W) × 450mm (H) × 200mm (D) (book-type chassis for wall mounting)
  • Mounting Type: Wall mount; cabinet mount (with optional cooling kit)
  • Housing Material: Steel (painted, corrosion-resistant); IP21 enclosure (standard); IP54/IP65 (optional)
  • Weight: Approximately 18kg
  • Cooling Method: Forced air cooling (internal fan, variable speed); optional liquid cooling for high-temperature environments
• Environmental Ratings:
  • Operating Temperature Range: -10℃~+40℃ (IP21); -10℃~+50℃ (with derating)
  • Storage Temperature Range: -40℃~+70℃
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Altitude Rating: Up to 1000m (derated by 1% per 100m above 1000m)
  • Vibration Resistance: 5~50Hz, 0.5g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 15g (11ms half-sine, IEC 60068-2-27; no mechanical damage)
• Compliance Standards: CE, UL, CSA, RoHS, IEC 61800-2, ABB 800xA Compatibility Standard V6.0+

2. Key Features

• Dual Control Modes (V/F & Vector): V/F mode for simple applications (e.g., fans) and sensorless vector mode for precise control (e.g., conveyors)—enables flexibility across diverse industrial processes; optional encoder feedback upgrades to closed-loop vector control for ±0.01% speed accuracy.
• High Overload Capacity: 150% overload current (56A) for 60s—handles peak loads from heavy machinery (e.g., crusher startups, pump cavitation) without drive shutdown, ensuring uninterrupted process operation.
• Seamless ABB Automation Integration: Communicates with 800xA DCS and AC800M PLCs via built-in protocols (PROFIBUS DP, Modbus RTU; optional Ethernet/IP)—enables centralized monitoring and control, reducing engineering time by 30% vs. third-party drives.
• Energy Efficiency Optimization: Automatic energy-saving mode adjusts flux based on load (reduces losses by 10%~20% for partial-load applications like fans/pumps); power factor correction (≥0.95) minimizes harmonic distortion, lowering utility costs.
• Comprehensive Protection: Multi-layer protection for drive (overcurrent, overheating) and motor (overtemperature, bearing wear)—detects faults early (e.g., a failing motor bearing) and triggers alarms via 800xA, reducing unplanned downtime by 40%.
• Rugged Enclosure Options: IP21 (standard, indoor cabinets) to IP65 (optional, washdown/dusty environments)—suitable for harsh conditions: food processing washdowns, mining dust, and outdoor water treatment plants.
• User-Friendly Configuration: ABB Drive composer software and front-panel HMI (keypad, display) simplify setup—enables parameter tuning, fault logging, and performance monitoring without specialized tools, accelerating commissioning.

3. Application Fields

• Heavy Industry Motor Control: Primary application—powering and controlling industrial motors:
  • Mining Crushers & Conveyors: Controls 18.5kW induction motors for ore crushers; 150% overload capacity handles sudden load spikes from hard rock, while sensorless vector control maintains consistent speed (±0.5% accuracy) to prevent jams.
  • Chemical Plant Pumps: Regulates 22kW pump motors for chemical transfer; energy-saving mode reduces power consumption by 15% during partial-load operation (e.g., low-demand periods), while overcurrent protection prevents damage from pump cavitation.
• Manufacturing Automation: Precision control for production machinery:
  • Automotive Assembly Line Conveyors: Controls 15kW synchronous motors for body-in-white conveyors; closed-loop vector control (with encoder) ensures ±0.01% speed synchronization across multiple conveyors, reducing assembly errors.
  • Plastic Extruders: Regulates 20kW motor speed for extruder screws; variable frequency output (0~500Hz) enables precise adjustment of melt flow, ensuring consistent plastic part quality (e.g., injection-molded components).
• Process Industry Optimization: Energy-efficient control for process equipment:
  • Oil Refinery Compressors: Controls 22kW air compressors for instrument air systems; power factor correction (≥0.95) minimizes harmonic distortion, complying with utility standards, while overheating protection prevents shutdowns in high-temperature refinery zones.
  • Water Treatment Plant Aerators: Regulates 15kW aerator motors for wastewater treatment; V/F mode simplifies setup, and energy-saving mode cuts power use by 20% during low-oxygen demand, lowering operational costs.
• Infrastructure & Commercial Applications: Reliable motor control for large-scale systems:
  • HVAC Chillers in Data Centers: Controls 22kW chiller motors; precise speed adjustment (0~50Hz) matches cooling demand to server load, reducing energy consumption by 18% vs. fixed-speed chillers.
  • Elevator & Escalator Systems: Powers 15kW elevator traction motors; smooth torque control (150% starting torque) ensures comfortable acceleration/deceleration, while safety features (overcurrent, overspeed) comply with EN 81-20 elevator standards.

4. Precautions

• Power Matching (Critical): Ensure the drive’s output current (40A continuous) and power range (15kW~22kW at 400V AC) match the motor’s rated current and power—oversizing wastes energy, while undersizing causes overload tripping and motor damage. Verify motor nameplate data (current, voltage, power) before installation.
• Installation & Wiring Safety:
  • Input/Output Isolation: Separate drive input (power) and output (motor) wiring; use shielded cables for output to reduce EMI—crossed wiring causes drive damage, while unshielded cables interfere with nearby ABB I/O modules (e.g., AI893, DI825).
  • Grounding: Connect the drive’s protective ground terminal to a dedicated earth (resistance ≤0.5Ω)—improper grounding increases EMC emissions and reduces shock protection; use 10mm² green/yellow ground wire for reliability.
  • Line Reactors (Optional): Install an input line reactor (recommended for 400V AC grids) to reduce harmonic distortion (<5%)—unfiltered input current may disrupt factory power grids and trigger utility penalties.
• Operation & Maintenance:
  • Parameter Locking: Lock critical parameters (e.g., maximum frequency, overload limits) after commissioning—unauthorized changes may cause motor overspeed or drive failure; use Drive composer’s password protection feature.
  • 定期 Maintenance: Perform quarterly checks:
    • Clean cooling fans and air filters (dust accumulation causes overheating)
    • Inspect power terminals for tightness (vibration loosens connections)
    • Verify motor temperature via PTC input (abnormal heat indicates bearing wear)
      Replace air filters annually or sooner in dusty environments (e.g., mining).
  • Fault Handling: Refer to the drive’s HMI or 800xA diagnostics for fault codes—common issues (overcurrent, overvoltage) require resolving root causes (e.g., shorted motor windings, grid voltage spikes) before resetting.
• Environmental Limitations:
  • Temperature & Altitude: Do not operate above +40℃ (IP21) or 1000m altitude without derating—high temperatures degrade capacitors, while high altitude reduces cooling efficiency; use a cabinet cooling kit for +40℃~+50℃ environments.
  • Humidity & Contamination: Avoid condensing humidity (>95% RH, 40℃) or corrosive dust (e.g., chemical plants)—install IP65 enclosure or positive-pressure cabinets to protect internal components from moisture and debris.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine ABB ACS800 parts (e.g., cooling fans, power modules)—non-genuine alternatives lack thermal compatibility and may cause drive failure; order spares via ABB’s industrial supply chain.
  • Spare Inventory: Maintain 1 spare drive for every 5 operational units—drive failures disable critical machinery (e.g., crushers, conveyors); spares reduce downtime from 2+ weeks (delivery) to <4 hours for mission-critical processes
•
•
