ABB TB815 (3BSE013204R1) Interconnection Unit

1. Key Parameters

• Product Model: TB815
• Order Code: 3BSE013204R1
• Product Series: ABB TB Series Interconnection Units (S800 I/O System Integration, Modular Signal Routing)
• Core Function: Enables modular interconnection between ABB S800 I/O modules, backplanes, and termination units; routes analog/digital signals between system components; provides surge protection for bus signals; supports hot-swappable module integration; ensures compatibility with ABB automation ecosystems
• Electrical & Signal Specifications:

  Parameter	Details	Performance Metrics
  Connection Capacity	- Supported Modules: Up to 8 S800 I/O modules (AI/AO/DI/DO/RTD/TC) - Backplane Interface: 1×S800 system bus connector (32-bit parallel) - Expansion Ports: 2×expansion interfaces for daisy-chaining additional TB815 units - Signal Types: Analog (4~20mA, 0~10V), Digital (24V DC), serial (RS485) via module integration	Supports up to 256 I/O points (32 channels per module), enabling medium-scale system configurations without backplane overload
  Bus & Data Transmission	- Bus Protocol: ABB PRONET, PROFIBUS DP (via gateway module) - Data Transfer Rate: Up to 12Mbps (PROFIBUS); 100Mbps (PRONET) - Bus Latency: <2ms (module-to-backplane) - Signal Isolation: 2kV AC (module-to-backplane, 1min)	Ensures real-time data transmission for time-sensitive control loops (e.g., 50ms process updates), avoiding system lag in critical applications
  Protection & Reliability	- Surge Protection: ±15kV ESD (contact, IEC 61000-4-2); 2kV surge (bus lines, IEC 61000-4-5) - Overcurrent Protection: 5A resettable fuses for backplane power lines - Fault Detection: Module presence monitoring; bus error detection - Redundancy Support: Optional dual power supply inputs (24V DC)	Protects system backplanes from module-side electrical anomalies; redundancy support ensures 99.99% availability in mission-critical applications
  Mechanical & Interface Features	- Module Slots: 8×hot-swappable slots (compatible with all S800 I/O modules) - Connectors: Gold-plated backplane contacts (500+ mating cycles); screw-terminal power inputs - Status Indicators: 1×system health LED (green = normal, red = fault); 1×bus activity LED (amber) - Configuration: Plug-and-play with 800xA Engineering Tool (no manual programming)	Hot-swappable slots reduce maintenance downtime by 90%; gold-plated contacts ensure low resistance (<50mΩ) and corrosion resistance

• Mechanical Specifications:
  • Dimensions: 160mm (W) × 220mm (L) × 100mm (H) (S800 rack-mount form factor)
  • Mounting Type: Direct integration with ABB S800 backplanes; DIN rail mount (via adapter)
  • Housing Material: Glass-fiber reinforced polyamide (PA66+GF, UL 94 V0, flame-retardant)
  • Weight: Approximately 1.2kg (without modules)
  • IP Rating: IP20 (front panel)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 1.5g acceleration (IEC 60068-2-6; no contact loosening)
  • Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27; no structural damage)
• Compliance Standards: CE, RoHS, ABB S800 I/O Compatibility Standard V6.0+, IEC 61326-3-2, UL 508, CSA C22.2 No. 14

2. Key Features

• 8-Slot Modular Design: Supports up to 8 S800 I/O modules (AI/AO/DI/DO/RTD/TC)—enables flexible system configuration (e.g., 4 AI + 2 DO + 2 DI modules) for diverse industrial processes, reducing the need for multiple backplane segments.
• Hot-Swappable Module Support: Allows replacement of S800 modules without powering down the system—minimizes maintenance downtime (from hours to minutes) in continuous processes (e.g., chemical batch production, water treatment).
• 2kV Signal Isolation: Protects system backplanes from module-side electrical noise and transients—critical for mixed-signal applications (e.g., high-power DO modules alongside sensitive AI modules), ensuring measurement accuracy (±0.1% for analog signals).
• Daisy-Chain Expansion: 2×expansion ports enable connection of additional TB815 units—supports system scalability from 8 to 64+ modules, ideal for growing facilities (e.g., expanding automotive assembly lines, refinery capacity upgrades).
• Integrated Surge Protection: ±15kV ESD and 2kV surge immunity safeguard against electrical anomalies—prevents backplane damage from lightning-induced transients or static discharge during maintenance, reducing unplanned downtime by 30%.
• Plug-and-Play Configuration: Seamless integration with 800xA Engineering Tool—automatically detects connected modules and configures bus routing, reducing commissioning time by 40% vs. manual setup.
• Redundancy Support: Optional dual 24V DC power inputs—ensures uninterrupted operation during primary power supply failures, critical for safety-related systems (e.g., nuclear plant auxiliaries, oil refinery emergency shutdown systems).

3. Application Fields

• ABB S800 I/O System Integration: Primary application in modular automation architectures:
  • Chemical Plant 800xA DCS Racks: Integrates 4 AI893 (32-channel analog) + 2 DO820 (32-channel digital) + 2 DI825 (32-channel digital) modules—centralizes interconnection for reactor control, with hot-swap support enabling module replacement during batch runs.
  • AC800M PLC Manufacturing Lines: Connects 8 mixed S800 modules (e.g., 3 AO890 + 3 DI821 + 2 RTD810) for automotive paint shop controls—daisy-chain capability links 3 TB815 units to support 24 modules across the entire production line.
• Mixed-Signal Industrial Environments: Managing diverse I/O types:
  • Steel Mill Hot Rolling Controls: Interconnects AI modules (temperature sensors) and DO modules (cooling water valves)—2kV isolation prevents noise from valve drives affecting temperature measurements, ensuring precise roll cooling.
  • Food Processing Plant Automation: Links DI modules (conveyor sensors) and AO modules (temperature controllers) in a dairy processing line—surge protection guards against washdown-induced transients, maintaining production continuity.
• Redundant Safety Systems: Ensuring high availability:
  • Nuclear Power Plant Auxiliary Systems: Configured with dual power supplies to interconnect safety-related S800 modules (pressure transmitters, emergency valves)—complies with IEC 61513 safety standards, providing 99.999% availability.
  • Oil Refinery Shutdown Systems: Integrates 8 S800 DI/DO modules for emergency shutdown (ESD) controls—redundant design and fault detection enable rapid response to process anomalies, preventing hazardous situations.
• System Expansion Projects: Scaling existing installations:
  • Water Treatment Plant Upgrade: Daisy-chains 2 TB815 units to add 16 new S800 modules (expanding from 8 to 24 modules) for additional filtration line controls—plug-and-play configuration minimizes downtime during upgrade.
  • Mining Processing Expansion: Adds 8 RTD modules to monitor new crusher bearings, interconnected via TB815 to existing AC800M PLC—vibration resistance (1.5g) ensures reliable operation in high-vibration mining environments.

4. Precautions

• Module Compatibility (Critical): Use only ABB S800 I/O modules with firmware ≥V6.0—non-S800 modules or outdated firmware cause bus communication errors and may damage the TB815 backplane; verify compatibility via ABB’s Module Compatibility Tool.
• Installation & Wiring Safety:
  • Backplane Alignment: Ensure proper alignment with S800 backplanes during installation—misalignment damages gold-plated contacts, leading to intermittent connections; use ABB’s alignment guide for proper seating.
  • Power Supply Ratings: Do not exceed 24V DC ±10% for power inputs—overvoltage causes component damage; use ABB-recommended power supplies (e.g., PS802) with 5A current capacity.
  • Grounding Connection: Connect the dedicated ground terminal to system safety ground (resistance ≤1Ω)—improper grounding reduces isolation effectiveness and increases EMI susceptibility between modules.
• Operation & Maintenance:
  • Hot-Swap Procedure: Follow ABB’s hot-swap protocol (deactivate module in 800xA before removal)—improper hot-swapping corrupts bus data or damages backplane contacts; never swap more than one module simultaneously.
  • 定期检查: Perform quarterly inspections for:
    • Loose module connections (common after vibration events)
    • Damaged LED indicators (replace unit if indicators fail)
    • Corroded power terminals (in humid environments)
      Clean contacts with compressed air—avoid liquid cleaners (damage insulation).
  • Fault Diagnostics: Use 800xA’s bus diagnostics to distinguish between module and TB815 faults—persistent errors across multiple modules indicate a TB815 issue, while single-module errors point to a faulty I/O module.
• Environmental Limitations:
  • Temperature Extremes: Do not operate above +70℃ or below -25℃—high temperatures accelerate contact wear, while extreme cold increases bus resistance; use cabinet climate control in desert or arctic applications.
  • Condensing Humidity: Avoid operation in condensing humidity (>95% RH, 40℃)—condensation causes corrosion of gold-plated contacts, increasing resistance; use dehumidifiers in tropical or marine environments.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine TB815 (3BSE013204R1) units—non-genuine alternatives lack 2kV isolation and S800 compatibility, leading to system instability and potential module damage.
  • Spare Inventory: Maintain 1 spare unit per 5 interconnected TB815s—unit failures disconnect up to 8 modules (256 channels); spares reduce downtime from 2+ weeks to <1 hour for mission-critical systems (e.g., chemical reactor controls)
•
•

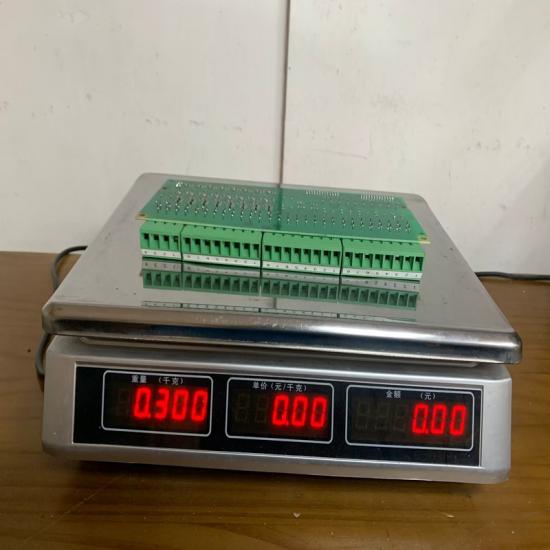

The structure and details of the product：
