ABB SY809F (Order Code: 3BDM000042R1) Communication Module

1. Key Parameters

• Product Model: SY809F
• Order Code/Part Number: 3BDM000042R1 (unique identifier for procurement and AC 800M compatibility verification)
• Product Series: ABB AC 800M DCS Communication Modules
• Core Function: Facilitates high-speed data communication between AC 800M controllers and upper-level systems/peer devices; supports industrial protocols for real-time monitoring and control
• Communication Specifications:
  • Protocols Supported: Ethernet/IP, Modbus-TCP, PROFINET IO (client/server), and ABB proprietary protocols (for AC 800M inter-controller communication)
  • Network Interfaces: 2× 10/100/1000Base-TX Ethernet ports (RJ45; supports copper cabling)
  • Data Transfer Rate: Up to 1Gbps (full-duplex; ensures high-bandwidth data exchange for large process datasets)
  • Redundancy Support: Built-in network redundancy (MRP/PRP protocols); automatic failover (<50ms) to backup port if primary link fails
  • Maximum Connections: 128 concurrent TCP/IP connections (supports multiple SCADA/HMI clients and peer controllers)
  • Latency: ≤1ms (for real-time data packets; critical for time-sensitive control signals)
• Electrical Specifications:
  • Power Supply (Backplane): 5V DC (from AC 800M rack power supply; typical current: 0.8A; maximum current: 1.2A)
  • Power Consumption: ≤6W (total, including communication and processing)
  • Isolation: 1kVrms (between Ethernet ports and backplane; 500Vrms between individual Ethernet ports)
  • Surge Protection: IEC 61000-4-5 (±2kV contact discharge; ±4kV air discharge for Ethernet ports)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); resistant to electromagnetic interference from motors, drives, and power systems
• Mechanical Specifications:
  • Housing Type: Metal-reinforced flame-retardant plastic (UL94 V-0; for EMI shielding and mechanical durability)
  • Dimensions (W×H×D): 25mm × 100mm × 160mm (1-module width; fits AC 800M standard rack slots)
  • Mounting: Rack-mounted (tool-less snap-in installation into AC 800M rack; aligns with backplane connectors for power and data)
  • Weight: Approximately 200g
  • LED Indicators:
    • Power (PWR): Green (module powered on); Red (power fault)
    • Backplane Communication (BUS): Green (normal communication with AC 800M controller); Red (communication fault)
    • Ethernet Port 1 (ETH1): Green (link active); Blinking Green (data transmission); Red (link fault)
    • Ethernet Port 2 (ETH2): Green (link active); Blinking Green (data transmission); Red (link fault)
    • Redundancy Status (RED): Green (redundancy active, normal); Amber (failover in progress); Red (redundancy fault)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6; no communication loss or physical damage)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; maintains port integrity and signal quality)
• Compliance Standards: IEC 61131-3 (industrial communication), IEEE 802.3 (Ethernet standards), UL 508 (industrial control safety), CE, RoHS

2. Key Features

• Multi-Protocol Support: Compatible with Ethernet/IP, Modbus-TCP, and PROFINET IO, enabling seamless integration with diverse industrial systems (e.g., Rockwell HMI, Siemens SCADA, third-party historians)—eliminating the need for protocol converters.
• Gigabit Ethernet Performance: 1Gbps data transfer rate supports high-volume data exchange (e.g., process historians, batch recipe downloads, large configuration files) without bandwidth limitations.
• Built-In Network Redundancy: Dual Ethernet ports with MRP/PRP redundancy protocols ensure <50ms failover, preventing communication downtime in mission-critical applications (e.g., chemical reactor control, power plant automation).
• Seamless AC 800M Integration: Tool-less installation into AC 800M racks; communicates with the controller via the PRONETA backplane bus, enabling plug-and-play configuration via ABB Control Builder M software—no custom drivers required.
• Robust EMI Shielding: Metal-reinforced housing and 1kVrms isolation minimize interference from industrial noise (e.g., variable-speed drives, high-voltage motors), ensuring reliable communication in electrically noisy environments.
• High Connection Capacity: Supports 128 concurrent TCP/IP connections, enabling communication with multiple SCADA clients, peer AC 800M controllers, and third-party systems—ideal for large-scale automation networks.
• Industrial-Grade Durability: Wide temperature range (-25℃~+70℃), vibration/shock resistance, and UL94 V-0 flame-retardant housing ensure reliable operation in harsh industrial settings (e.g., oil refineries, mining sites, offshore platforms).

3. Application Fields

• AC 800M DCS Network Integration: Primary application—connects AC 800M controllers to upper-level systems in:
  • Chemical & Petrochemical Plants: Transmits real-time reactor data (temperature, pressure, flow) to SCADA systems; enables remote recipe management and batch reporting.
  • Power Generation: Facilitates communication between AC 800M controllers and turbine control systems, grid management platforms, and plant historians—critical for grid stability and regulatory compliance.
  • Oil & Gas Refineries: Links process controllers to distributed SCADA nodes, enabling monitoring of distillation columns, catalytic crackers, and storage tank levels across large refinery sites.
• Multi-Vendor Automation Networks: Integrates AC 800M DCS with third-party systems:
  • Automotive Manufacturing: Exchanges data with robotic controllers (PROFINET) and production execution systems (MES) via Ethernet/IP.
  • Pharmaceutical Production: Connects to FDA-compliant data historians (Modbus-TCP) for batch record keeping and process validation.
• Redundant Control Architectures: Enables secure communication in redundant AC 800M configurations (e.g., hot-standby controllers), ensuring continuous data flow during controller failover in:
  • Water & Wastewater Treatment: Prevents loss of pump control signals or chemical dosing data during network disruptions.
  • Food & Beverage Processing: Maintains communication with filling machines and CIP systems to avoid production line shutdowns.
• Remote Monitoring & Control: Supports secure data transmission to remote operation centers (e.g., via VPN over Ethernet) in:
  • Renewable Energy Farms: Transmits solar/wind turbine performance data to central monitoring stations.
  • Pipeline Networks: Enables remote monitoring of pressure, flow, and valve status across distributed pipeline segments.

4. Precautions

• System Compatibility: Use exclusively with ABB AC 800M DCS racks and controllers. Installation in non-AC 800M systems (e.g., AC 500 PLCs, third-party DCS) will cause backplane communication failure and render the module inoperable.
• Redundancy Configuration: Configure network redundancy (MRP/PRP) via Control Builder M to ensure automatic failover. Improper redundancy settings (e.g., mismatched protocols between ports) will prevent failover and increase downtime risk.
• Ethernet Cable Compliance: Use shielded Cat5e or higher Ethernet cables (minimum 24AWG) for connections. Non-compliant cables (e.g., unshielded, Cat5) cause signal degradation at 1Gbps, leading to data loss or reduced bandwidth.
• Grounding & Shielding: Ground the Ethernet cable shield at both ends (via shielded connectors) and connect the module’s ground terminal to the AC 800M rack’s common ground (≤1Ω resistance). Poor grounding reduces EMI immunity and increases susceptibility to noise.
• Network Segmentation: Avoid connecting the module directly to public networks without a firewall. Implement industrial firewalls to protect against unauthorized access, especially in critical infrastructure (e.g., power plants, refineries).
• Firmware Updates: Keep the module’s firmware updated via Control Builder M. Back up configuration data before updating—mismatched firmware between the module and AC 800M controller causes protocol errors.
• Maintenance Checks: Inspect quarterly:
  • Verify LED status (no red faults; redundancy status green; Ethernet ports blinking for active communication).
  • Test network redundancy by disconnecting the primary Ethernet cable—confirm failover to the secondary port within 50ms.
  • Clean Ethernet port connectors with compressed air to remove dust—dirty connectors cause intermittent link faults

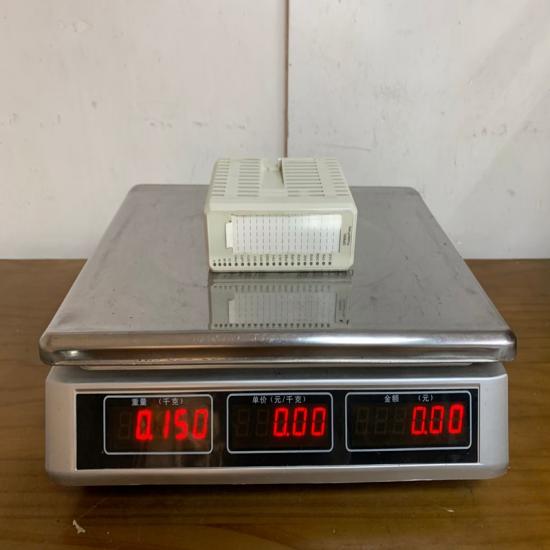

The structure and details of the product：
