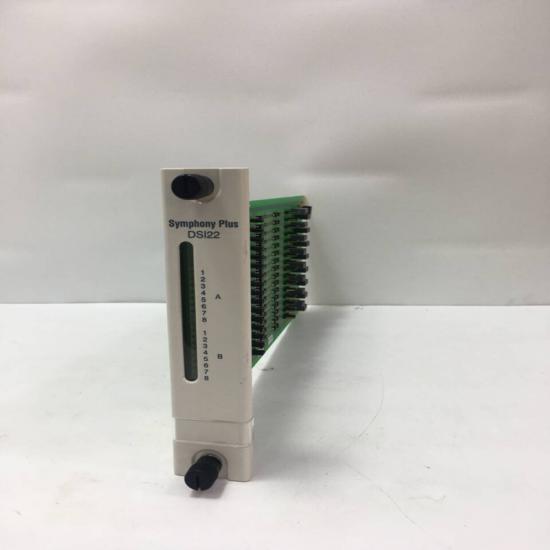

ABB SPDSI22 16-channel digital input module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB SPDSI22 16-Channel Digital Input Module

1. Product Description

The ABB SPDSI22 is a high-performance digital input module designed for industrial automation and control systems. It provides 16 isolated digital input channels, enabling reliable signal acquisition from sensors, switches, and other field devices. It is commonly used in ABB’s Symphony Plus, 800xA, and other DCS/PLC systems for process monitoring and safety applications .

2. Key Specifications

3. Key Features & Benefits

✅ High-Speed Input Processing – <100 µs response time for real-time control applications .
✅ Robust Isolation (1500V AC) – Prevents ground loops and electrical noise interference.
✅ Flexible Signal Support – Compatible with dry/wet contacts, NPN/PNP sensors .
✅ Modular & Scalable – DIN-rail mounting for easy integration into control cabinets .
✅ Self-Diagnostics – Monitors input status and detects faults for easier maintenance .

4. Applications

• Process Industries – Oil & gas, chemical plants, power generation (safety-critical monitoring) .

• Factory Automation – CNC machines, robotic workcells, conveyor control .

• Energy Management – Grid monitoring, circuit breaker status detection .

• Building Automation – Fire alarms, HVAC control systems .

5. Installation & Wiring

• Power Supply: Requires 24V DC (loop-powered or external supply) .

• Termination: Uses removable terminal blocks for easy wiring .

• Grounding: Proper chassis grounding is essential for noise immunity .

• Configuration:

  • Assign I/O addresses via ABB’s Control Builder or 800xA engineering tools .

  • Set debounce filters (1-100ms) to reduce signal noise .

6. Safety & Maintenance

⚠ EMC Compliance – Install in a shielded control cabinet to avoid electromagnetic interference .
⚠ Load Compatibility – Ensure connected sensors match the 24V DC input rating .
⚠ Periodic Checks – Verify LED indicators and inspect for overheating.

⚠ Firmware Updates – Check ABB’s support portal for the latest releases .

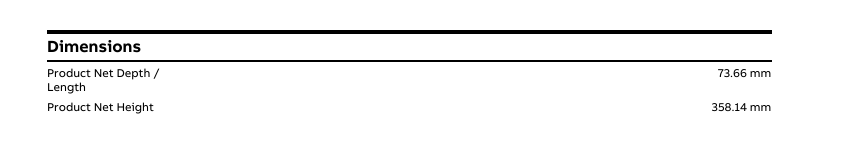

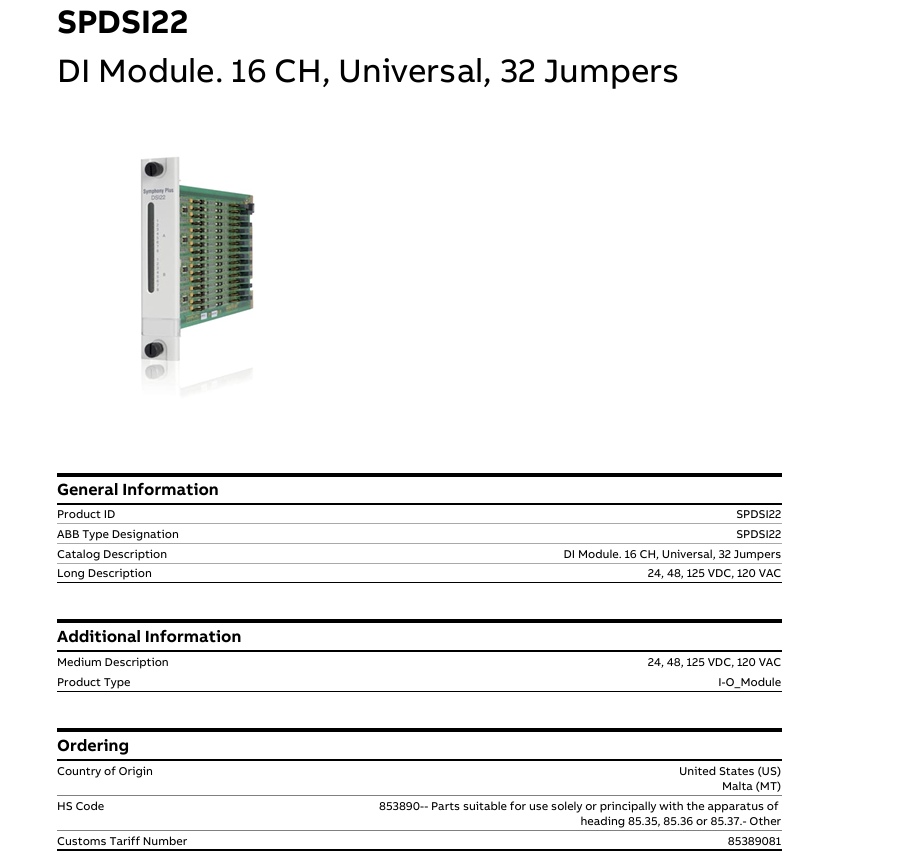

The structure and details of the product：
