ABB DX522 1SAP245200R0001 Digital Input/Output Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

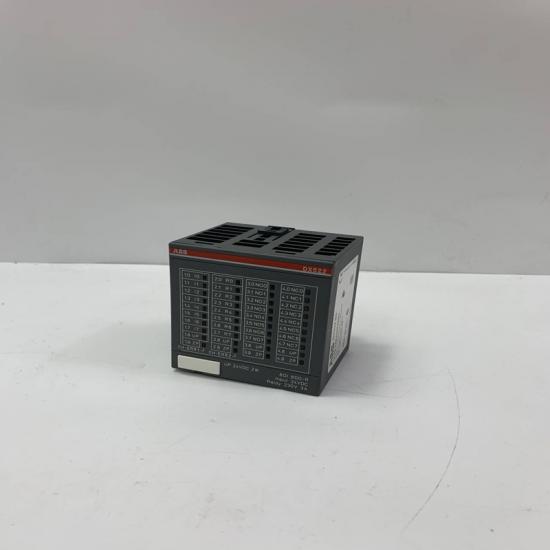

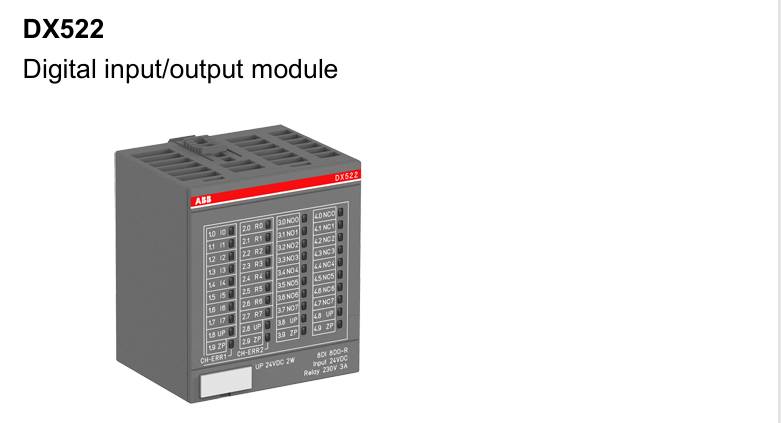

ABB DX522 1SAP245200R0001 Digital Input/Output Module

1. Product Description

The ABB DX522 (1SAP245200R0001) is a configurable digital I/O module designed for ABB’s AC500 PLC series. It provides 8 digital inputs and 8 relay outputs, making it suitable for industrial automation applications requiring both signal acquisition and control. The module supports flexible configuration, allowing users to adapt it to various control scenarios, including machine automation, process control, and safety systems .

2. Key Specifications

3. Key Features

✅ Configurable I/O – Supports dry/wet contacts and NPN/PNP sensors for flexible integration .
✅ High-Speed Inputs – Adjustable input filtering (0.1ms to 32ms) for noise immunity .
✅ Relay Outputs – 8× SPDT relays (2A @ 230V AC) for direct actuator control .
✅ Hot-Swappable – Supports module replacement without system shutdown .
✅ Diagnostic LEDs – Per-channel status indication for easy troubleshooting .

4. Applications

• Factory Automation – Machine control, conveyor systems, and safety interlocks .

• Process Industries – Valve control, pump monitoring in oil & gas/chemical plants .

• Energy Management – Circuit breaker status monitoring in power distribution .

• Building Automation – HVAC control, lighting systems, and fire alarms .

5. Installation & Configuration

1. Wiring – Connect inputs (24V DC/AC) and relay outputs (NO/NC) via removable terminal blocks.

2. Baseplate – Mount on TU515 (24V DC) or TU516 (230V AC) backplane .

3. Software Setup – Configure via ABB Control Builder (assign I/O addresses & filter settings) .

6. Ordering & Variants

• Base Model: DX522 (1SAP245200R0001) .

• Compatible Modules: AC500 PLC, S500 I/O expansion .
