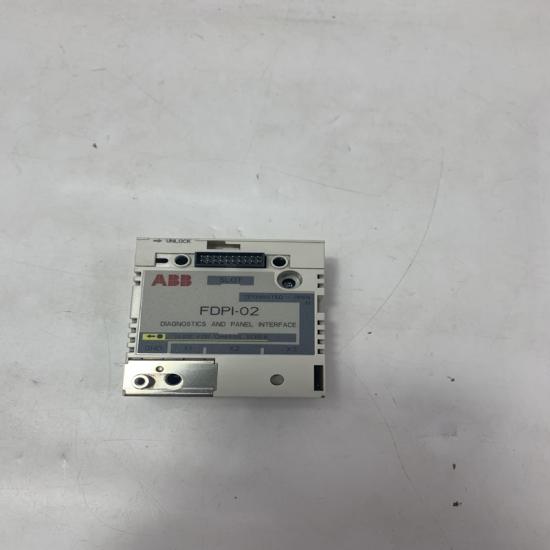

ABB FDPI-02 Panel Bus Adapter Kit

1. Product Description

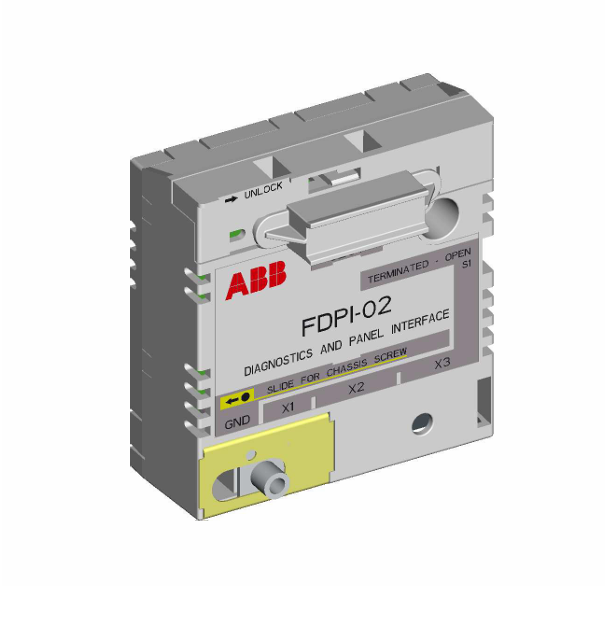

The ABB FDPI-02 is a diagnostic and panel interface module designed to facilitate RS-485 communication between control panels, PC tools, and multiple drives in industrial automation systems. It acts as a branching interface for panel bus networks, enabling seamless integration with ABB’s ZCU-xx and BCU-xx control units .

2. Key Specifications

3. Key Features

✅ Flexible Bus Integration: Enables daisy-chaining of multiple drives via RS-485 .
✅ Plug-and-Play Design: Simple installation in control unit slots with RJ-11/RJ-45 connectors .
✅ Signal Integrity: Built-in bus termination switch to minimize signal reflections .

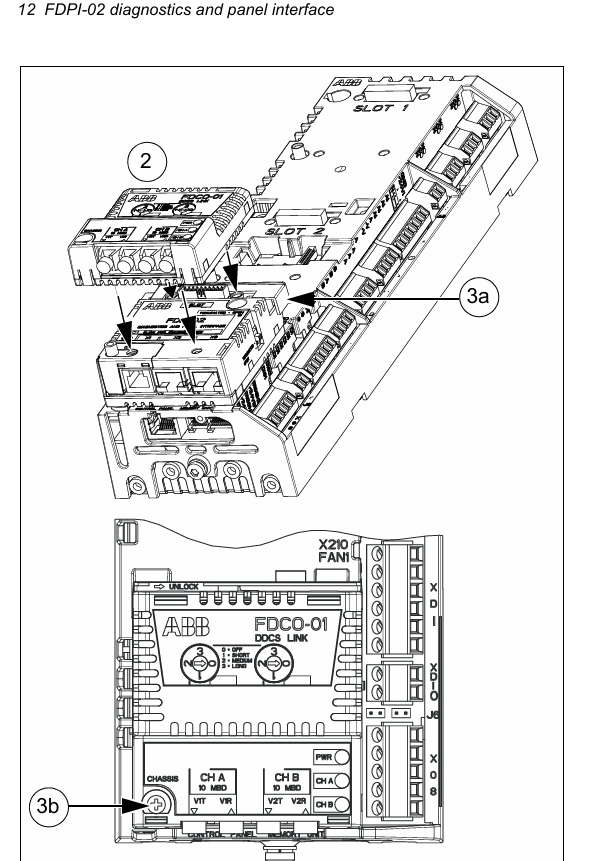

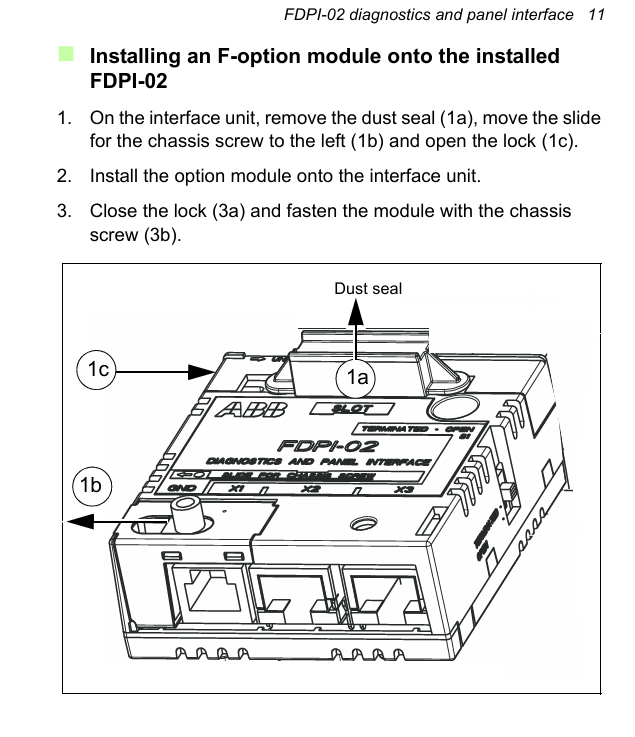

✅ Compact Modularity: Supports stacking of F-type option modules for expanded functionality .

4. Applications

• Drive Networks: Links ABB drives (e.g., ACS series) to control panels for parameter tuning .

• Industrial Diagnostics: Facilitates PC-based monitoring via tools like DriveStudio .

• DCS Integration: Compatible with ABB’s 800xA/Symphony Plus systems for centralized control .

5. Installation & Configuration

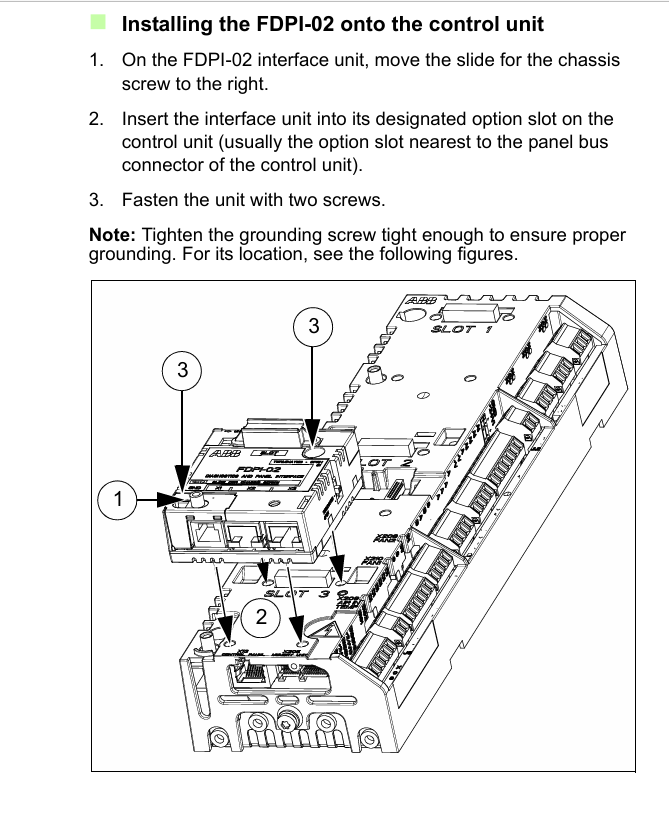

1. Mounting: Insert into the option slot of a compatible ABB control unit (e.g., BCU-02) .

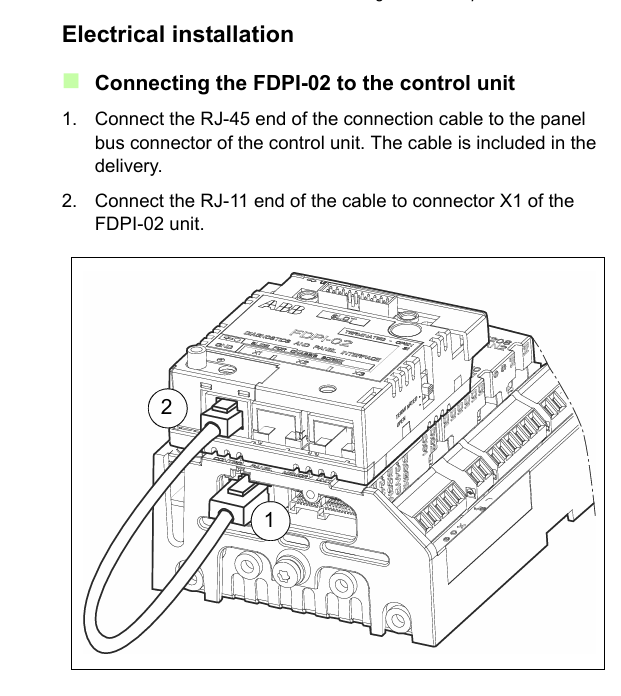

2. Wiring:

   • Connect RJ-11 to the control unit.

   • Use RJ-45 for daisy-chaining drives or a PC tool .

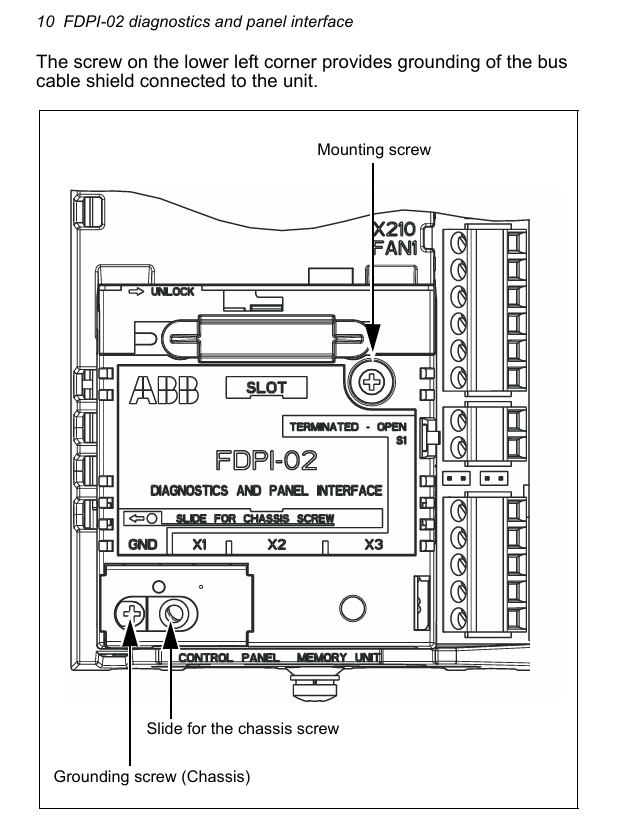

3. Termination: Set switch S1 to "ON" if the module is at the bus endpoint .

6. Ordering & Variants

• Base Model: FDPI-02 (3AUA0000108650) .

• Related Modules: BCU-02, BCU-12, and other F-type option modules .

The structure and details of the product：
