ABB SPDSO14 Digital Output Module

1. Product Description

The ABB SPDSO14 is a digital output (DO) module designed for industrial automation and control systems. It provides 16 channels of digital outputs with open-collector configuration, enabling reliable signal transmission for actuators, relays, and other field devices. It is commonly used in ABB’s Symphony Plus and 800xA control systems for process automation and safety applications1.

2. Key Specifications

3. Key Features & Benefits

✅ High-Density Outputs – 16 channels in a compact form factor for space-efficient installations.
✅ Open-Collector Design – Compatible with various load types (relays, solenoids, indicators).
✅ Fast Response Time – <1 µs switching speed for real-time control applications.
✅ High Isolation (1500V AC) – Prevents ground loops and electrical noise interference.
✅ Redundancy Support – Can be configured in redundant systems for fail-safe operation.
✅ Self-Diagnostics – Monitors output status and detects faults for easier maintenance.

4. Applications

• Industrial Automation – Motor control, valve actuation, and relay driving in DCS/PLC systems.

• Process Industries – Oil & gas, chemical plants, and power generation for safety-critical signaling.

• Manufacturing – CNC machines, assembly lines, and robotic workcells.

• Building Management – HVAC control, lighting systems, and fire alarms.

5. Installation & Wiring

• Power Supply: Requires 24V DC (loop-powered or external supply).

• Termination: Uses removable terminal blocks for easy wiring.

• Grounding: Proper chassis grounding is essential for noise immunity.

• Configuration:

  • Assign I/O addresses via ABB’s Control Builder or 800xA engineering tools.

  • Set output modes (pulse, latching, or continuous) in software.

6. Safety & Maintenance

⚠ EMC Compliance – Install in a shielded control cabinet to avoid electromagnetic interference.
⚠ Load Compatibility – Ensure connected devices (relays, solenoids) match the 2A/channel rating.
⚠ Periodic Checks – Verify LED indicators and inspect for overheating.
⚠ Firmware Updates – Check ABB’s support portal for the latest firmware releases.

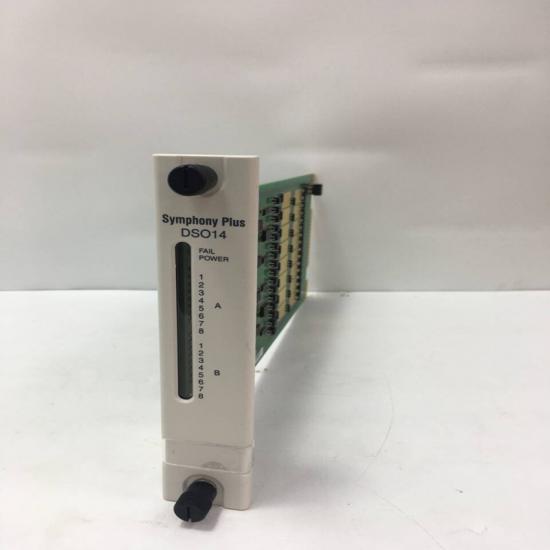

The structure and details of the product：

 Please make an inquiry for more models：
