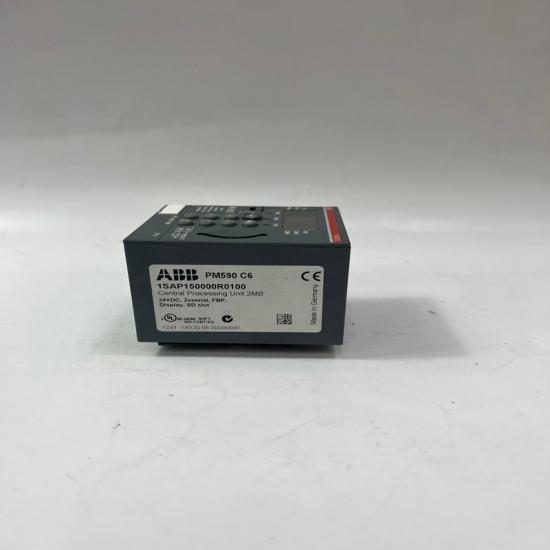

ABB PM590 Processor Module

• Processor Performance：32-bit multi-core processor with 1.2GHz frequency, built-in 2GB RAM and 8GB Flash memory, supporting complex control algorithms and large-capacity data processing.​

• I/O Expansion Capability：Can connect up to 128 expansion modules, supporting digital, analog, and special function I/O, with a total I/O count up to tens of thousands of points, meeting the needs of large-scale systems.​

• Communication Interfaces：2 Gigabit Ethernet interfaces (supporting EtherNet/IP, PROFINET), 2 RS485 interfaces (supporting Modbus RTU), with a maximum data transmission rate of 1Gbps.​

• Control Cycle：Minimum control cycle of 0.1ms, supporting multi-task parallel processing such as logic control, motion control, and process regulation.​

• Operating Environment：Operating temperature -25℃~70℃, relative humidity 5%~95% (non-condensing), protection class IP20, vibration resistance 2g (10-2000Hz).​

• Power Requirement：24V DC±10%, power consumption ≤30W (excluding expansion modules).​

• Dimensions：Width×height×depth approximately 150mm×220mm×180mm, rail-mounted, supporting hot swapping.​

• Certification Standards：Certified by UL, CE, ATEX, compliant with IEC 61131-2 and ISO 9001 standards.​

• Superior Computing Power：Multi-core processor with large-capacity storage, capable of processing thousands of control logics and real-time data simultaneously, adapting to large and complex industrial control systems.​

• High-Speed Communication Architecture：Gigabit Ethernet interfaces support industrial real-time Ethernet protocols, enabling millisecond-level data interaction between devices, meeting high-synchronization control requirements.​

• Extreme Expansion Flexibility：Compatible with ABB's full range of I/O modules and third-party devices, can be flexibly expanded according to system scale, easily coping with production line upgrades or transformations.​

• Intelligent Programming Environment：Supports IEC 61131-3 full range of programming languages (ST, LD, FBD, etc.), integrates simulation and diagnostic tools, simplifying the development of complex control programs.​

• High Redundancy Reliability：Supports redundant configuration of CPU, power supply, and communication links, with fault switching time ≤10ms, ensuring uninterrupted operation of critical industrial processes.​

• Large Manufacturing Production Lines：In automobile manufacturing plants and semiconductor fabs, serves as the main controller to coordinate welding robots, precision machine tools and other equipment, realizing full-process automated control.​

• Core Control in Process Industry：Used in large-scale chemical, metallurgical, and oil-gas processing plants to control key equipment such as reactors and distillation towers, precisely regulating process parameters like temperature, pressure, and flow.​

• Energy Infrastructure：Adapts to auxiliary control systems of large thermal power plants and nuclear power plants, controlling fans, pumps, valves and other equipment to ensure stable and efficient energy production.​

• Rail Transit Signal Systems：In integrated monitoring systems of subways and high-speed railways, processes real-time data such as train scheduling and track signals to ensure safe transportation operation.​

• Intelligent Logistics Hubs：Controls large automated stereoscopic warehouses and cross-region conveyor systems, realizing precise sorting and scheduling of tens of thousands of materials.​

• Installation requires fixing with special rail brackets to ensure stability in strong vibration environments; for redundant system configuration, synchronization parameters must be set strictly according to the manual.​

• The communication network must use industrial-grade Gigabit Ethernet switches, and cables should be Cat 6 or higher standard to reduce signal attenuation.​

• During programming, it is necessary to reasonably allocate processor core resources to avoid a single task occupying excessive computing power and affecting system real-time performance.​

• Regularly update the firmware through official tools to fix potential vulnerabilities; back up the control program to prevent unexpected loss leading to shutdown.​

• During maintenance, first disconnect the power of the module to be operated in the redundant system to avoid affecting the normally running redundant unit; touching the circuit board gold fingers of the module is prohibited.​

The structure and details of the product：
