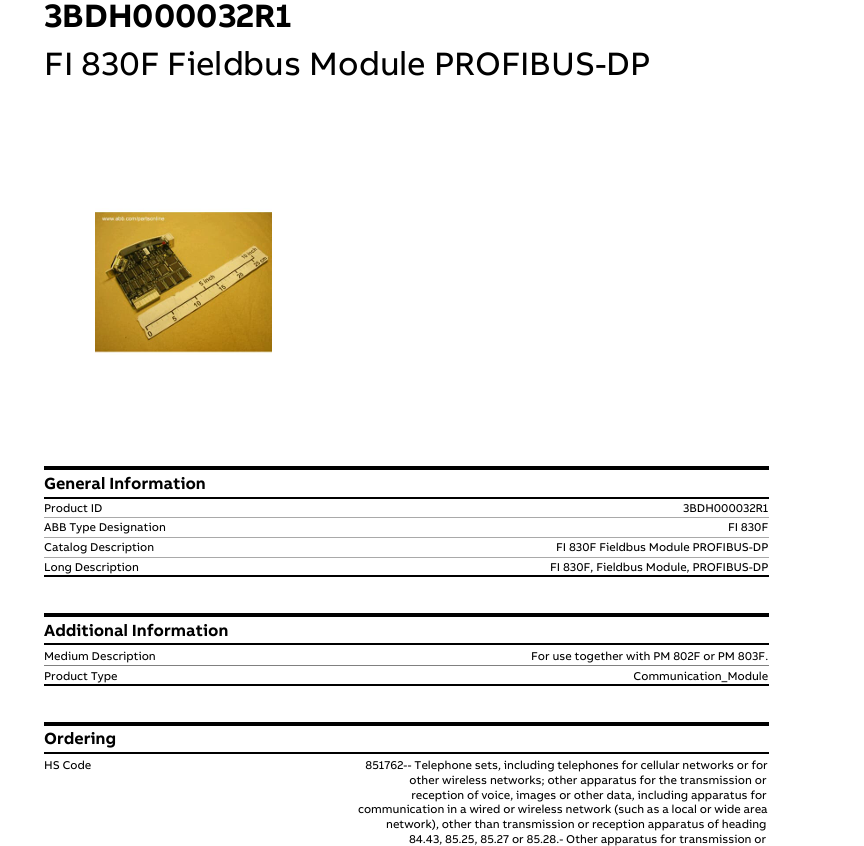

ABB FI830F Fieldbus Profibus DP module

• Communication Protocol：Supports Profibus DP V0/V1 protocol, with adaptive transmission rate switching between 9.6kbps-12Mbps, meeting communication needs at different distances.​

• Interface Configuration：1 Profibus DP interface (DB9 pin type), supporting bus power supply, maximum 126 slave devices can be connected.​

• Communication Distance：Maximum communication distance 1200m at 9.6kbps; maximum 100m at 12Mbps (shielded twisted pair required).​

• Isolation Level：Isolation voltage between signal and power supply ≥2.5kV AC for 1 minute, effectively suppressing electromagnetic interference.​

• Operating Environment：Operating temperature -25℃~70℃, relative humidity 5%~95% (non-condensing), protection class IP20, vibration resistance 2g (10-2000Hz).​

• Power Requirement：24V DC±10% power supply, power consumption ≤3W.​

• Dimensions：Width×height×depth approximately 35mm×100mm×110mm, DIN rail mounted, compact structure.​

• Certification Standards：UL, CE certified, compliant with EN 50170 Profibus standard and IEC 61010-1 industrial equipment safety standard.​

• Efficient Bus Communication：Supports high-speed Profibus DP protocol, enabling fast data interaction between master and slave stations, meeting real-time control needs in industrial fields.​

• Strong Anti-Interference Ability：High isolation level design with shielded interface, ensuring stable communication in strong electromagnetic environments (such as near motors and frequency converters), guaranteeing data transmission reliability.​

• Flexible Networking Capability：Can operate as a Profibus DP master or slave, adapting to various network topologies (bus, star), facilitating system integration and expansion.​

• Wide Temperature Stable Operation：Can work continuously in extreme temperature ranges, suitable for harsh industrial scenarios such as metallurgy and mining, reducing the impact of environmental factors on communication.​

• Convenient Installation and Debugging：Real-time display of communication status (such as data transmission, fault alarm) through LED indicators, supporting online diagnosis function, simplifying fault troubleshooting 流程.​

• Process Automation：In chemical and petroleum refining production lines, connects PLC master stations with field transmitters, valve positioners and other slave devices to realize centralized monitoring and control of process parameters.​

• Manufacturing Production Lines：Used for equipment networking in automobile welding lines and electronic assembly lines, coordinating robots, conveyors, sensors and other equipment to ensure synchronization of production processes.​

• Energy and Power Systems：In substations and wind farms, serves as a communication node in Profibus DP networks, transmitting operating data of switchgear and inverters to monitoring centers.​

• Rail Transit：Adapts to traction systems of subways and light rails, connecting control units with traction motors and braking equipment to realize real-time status monitoring and command transmission.​

• Building Materials Industry：In cement and glass production lines, connects control modules of large equipment such as crushers and mills to realize centralized control and data feedback of production lines.​

• Shielded twisted pair cables must be used for wiring, and the shield layer should be grounded at one end to reduce the impact of electromagnetic interference on communication signals.​

• Matching terminal resistors (usually 120Ω) must be installed at bus terminals to prevent signal reflection from causing communication abnormalities.​

• The module should be installed away from high-power equipment (such as contactors, transformers); if unavoidable, add a metal shield.​

• Before first use, parameters such as station address and transmission rate must be configured through dedicated software to ensure matching with other devices in the Profibus DP network.​

• Regularly check whether the interface connection is loose, clean the dust on the module surface to maintain good heat dissipation and extend service life.​
