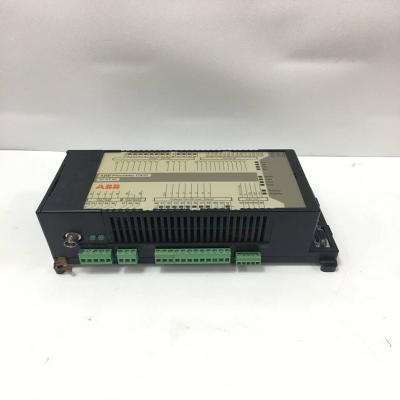

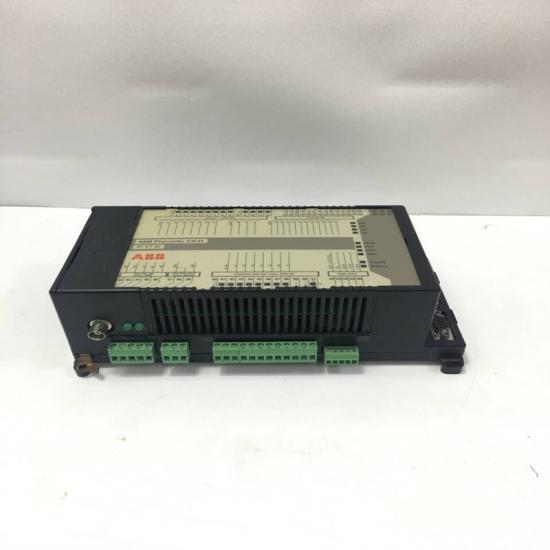

ABB 07KT92 Programmable Logic Controller (PLC) Module

• Processor Performance：16-bit microprocessor with 33MHz frequency, built-in 64KB RAM and 256KB EEPROM, supporting online program modification and storage.​

• I/O Capacity：Up to 256 digital I/O points or 64 analog I/O channels with hot-swappable expansion modules, facilitating system upgrades.​

• Communication Interfaces：1 RS232 interface, 1 RS485 interface, supporting Modbus RTU protocol with a maximum data transmission rate of 19.2kbps.​

• Execution Speed：Boolean instruction execution time ≤1μs, function instruction execution time ≤10μs, meeting the needs of fast logic control.​

• Operating Environment：Operating temperature 0℃~60℃, relative humidity 5%~95% (non-condensing), protection class IP20 (suitable for cabinet installation).​

• Power Requirement：24V DC±10%, power consumption ≤8W (excluding expansion modules).​

• Dimensions：Width×height×depth approximately 90mm×120mm×80mm, DIN rail mounted with a compact structure.​

• Certification Standards：UL and CE certified, compliant with IEC 61131-2 industrial control equipment standards.​

• Compact and Efficient Design：Miniaturized body integrates core control functions, suitable for space-constrained industrial scenarios, while maintaining fast instruction execution capability to improve control response speed.​

• Flexible Expansion Capability：Supports multiple I/O expansion modules, allowing flexible adjustment of points according to actual needs, adapting to control tasks from simple to moderately complex.​

• Stable Communication Performance：Standard dual serial interfaces support mainstream industrial protocols, enabling stable communication with HMI, sensors, frequency converters and other devices to achieve data interaction and remote monitoring.​

• High Usability：Compatible with ABB dedicated programming software, supporting ladder diagram (LD) programming with a simple interface, facilitating engineers to quickly develop and debug programs.​

• Industrial-grade Reliability：Equipped with overvoltage, undervoltage protection and watchdog function, excellent anti-vibration and anti-electromagnetic interference performance, ensuring long-term stable operation in machining, small production lines and other scenarios.​

• Small Automated Equipment：Used for logic control of single-machine equipment such as packaging machines, labeling machines, and small injection molding machines, realizing functions such as start-stop, counting, and sequence control.​

• Building Automation Subsystems：Controls air conditioning terminal equipment, lighting circuits, access control units, etc., cooperating with upper computers to realize automated management of local building areas.​

• Agricultural Automation：In greenhouses and irrigation systems, controls fans, pumps, valves and other equipment, automatically adjusting operating status according to temperature, humidity, soil moisture and other parameters.​

• Laboratory Equipment：Adapts to control loops of small test benches and testing instruments, realizing automated control and data recording of test processes.​

• Warehousing Auxiliary Equipment：Controls small conveyors, sorters and other equipment to complete short-distance material transportation and simple sorting tasks.​

• Special cables must be used to connect programming software during programming and debugging; non-standard cables should be avoided to prevent communication failure.​

• When installing expansion modules, ensure firm connection with the host to prevent poor contact due to vibration; cut off the module power before hot-swapping expansion modules.​

• Avoid installing the module in positions with frequent vibration or drastic temperature changes to prevent affecting the service life of internal components.​

• Before reuse after long-term shutdown, check whether the power interface is oxidized; clean it if necessary to ensure stable power supply.​

• In case of communication interruption during system operation, first check whether communication parameter settings (such as baud rate, address) are consistent with associated devices.​

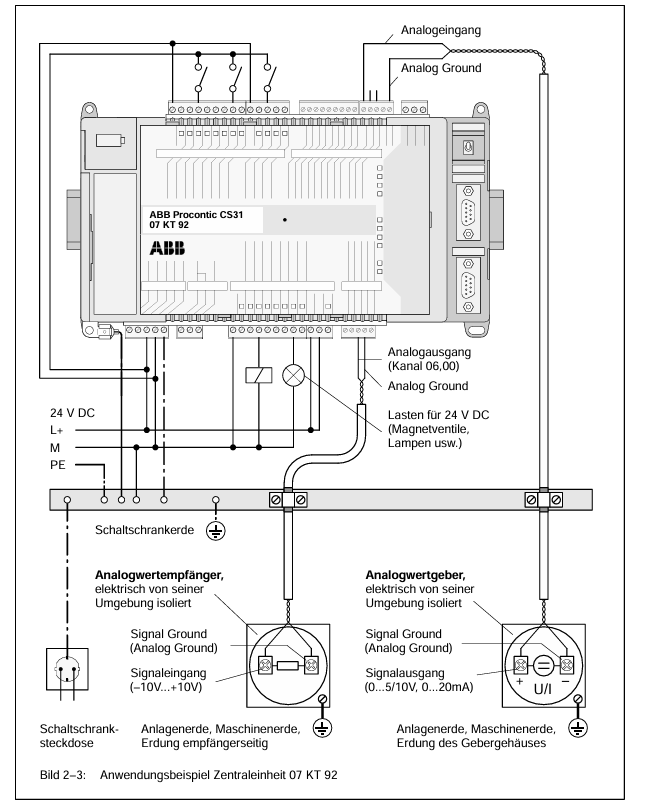

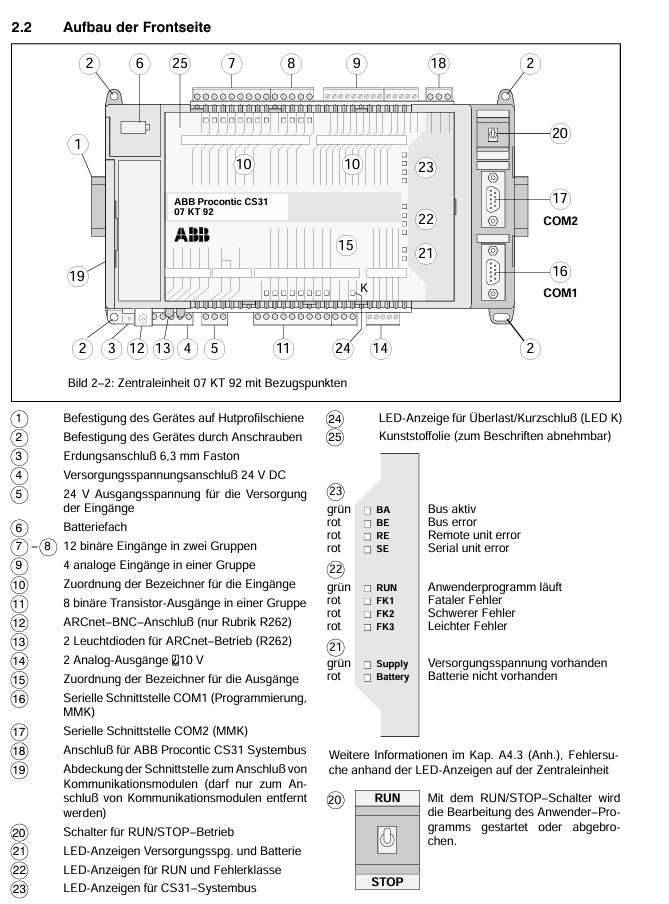

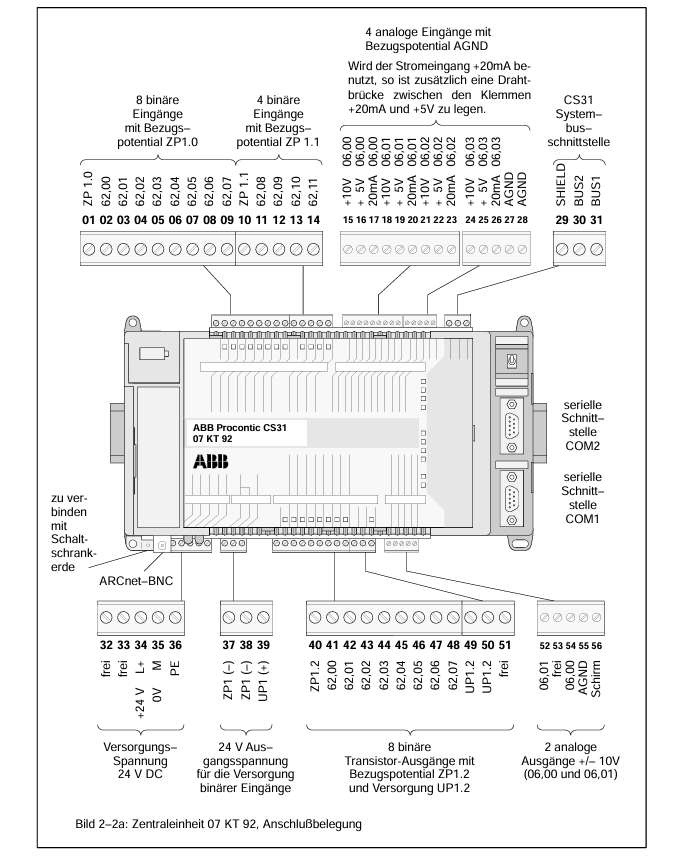

The structure and details of the product：

Please make an inquiry for more models：

ABB S802N-C32

ABB S503-K1.5

ABB EAN823

ABB EH210-30-11 220V 50HZ

ABB 1SAJ520000R0101

ABB 1SAJ520000R0100 11.9

ABB 1SAP140200R0201

ABB 1SVR500100R0000

ABB 1SVR430824R9300

ABB 1SVR405613R1100

ABB 1SAP240600R0001

ABB ACS355-01E-04A7-2

ABB ICDG32

ABB CP-C24/20.0

ABB S281UC-K6A

ABB DSE201 C10 AC30 11.10

ABB NAMU-01C

ABB ACH550-UH-072A-4

ABB ACS550-U1-038A-4

ABB 3BHB020538R0001

ABB TK851

ABB XK08F1-A3.0

ABB 1SBK134137R1300

ABB TC505 1SBP260150R1001

ABB TU401

ABB TA75DU-63

ABB TA75DU-80

ABB 1SDA053704R1

ABB 1SDA060344R1

ABB 1SDA060398R1

ABB NL22E 24VDC

ABB CS513AK01

ABB 3HAC023195-001

ABB 1SVR430720R0300

ABB V18311H.4.8.2.2.10.1.0.0

ABB TTF300Y0C2 H

ABB REL511-C2 1MRK004492-BB

ABB OTM63F4CMA230V

ABB 1SDA050954R1

ABB 1SCA022731R8230

ABB 1SAM150000R1009

ABB SB522V1 3BSC760015R1

• Other best-selling products：
  •

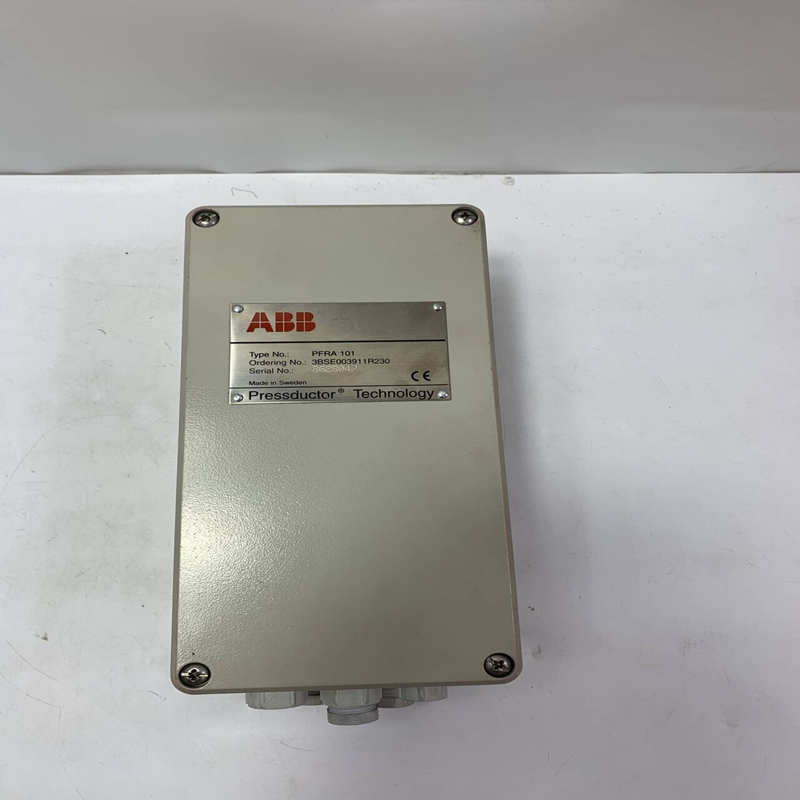

    ABB PFRA101 3BSE003911R230 control unit
  •

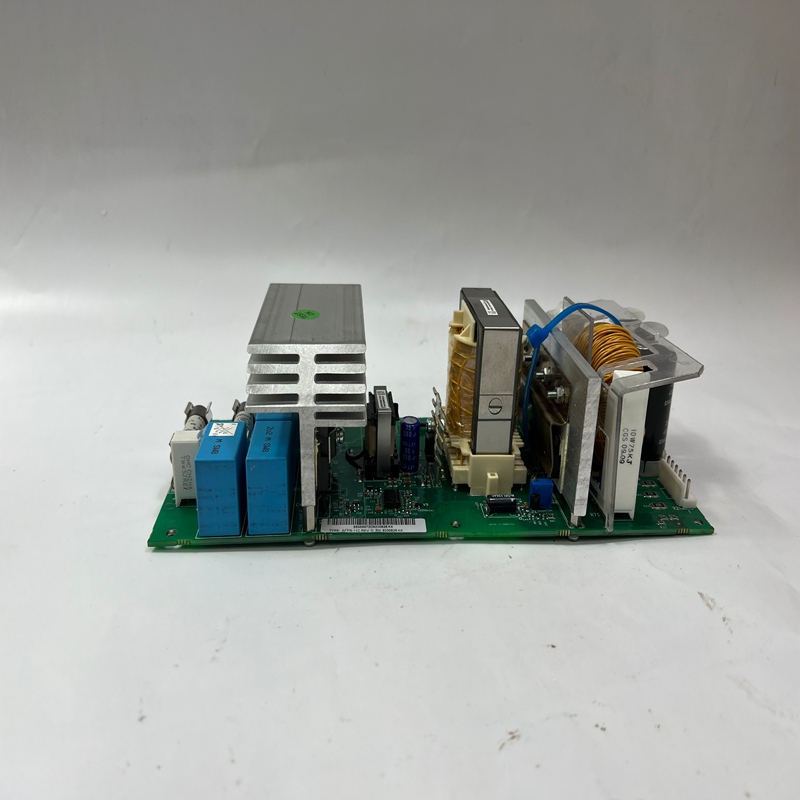

    ABB AFPS-11C Inverter Power Board
  •

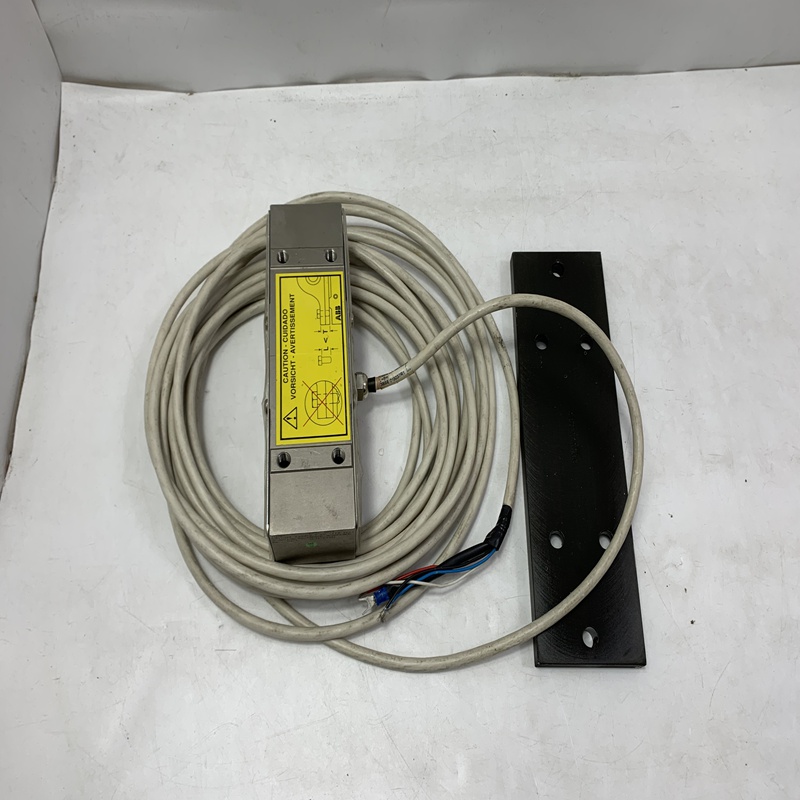

    ABB PFTL301E Tension Sensor
