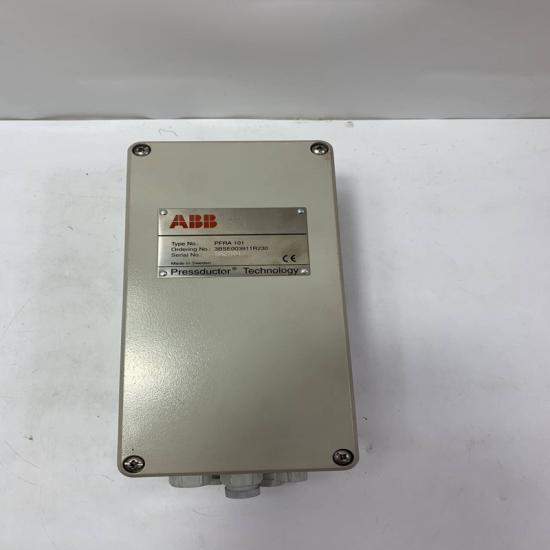

ABB PFRA101 3BSE003911R230 control unit

• Processor Performance：32-bit RISC processor with 800MHz frequency, built-in 512MB RAM and 2GB Flash memory, supporting the operation of complex control algorithms.​

• I/O Interfaces：8 digital inputs (24V DC), 4 digital outputs (relay, 250V AC/5A), 2 analog inputs (4-20mA), 1 analog output (4-20mA).​

• Communication Interfaces：2 Ethernet ports (10/100Mbps), 1 RS485 interface, supporting Modbus TCP/IP and Profibus DP protocols.​

• Control Cycle：Minimum control cycle of 1ms, meeting the requirements of high-precision real-time control.​

• Operating Environment：Operating temperature 0℃~60℃, relative humidity 5%~95% (non-condensing), protection class IP20.​

• Power Requirement：24V DC±10%, power consumption ≤15W.​

• Dimensions：Width×height×depth approximately 120mm×180mm×100mm, rail-mounted.​

• Certification Standards：UL and CE certified, compliant with IEC 61131-2 standard.​

• Powerful Processing Capacity：High-performance processor with sufficient storage can quickly process complex control logic and large amounts of data, adapting to medium and large industrial control scenarios.​

• Rich Interface Configuration：Integrating various I/O and communication interfaces, it can connect multiple devices without additional expansion modules, simplifying the system architecture.​

• High-Precision Real-Time Control：The minimum control cycle of 1ms ensures precise regulation of industrial processes, improving production efficiency and product quality.​

• Flexible Programming Support：Compatible with IEC 61131-3 standard programming languages (ladder diagram, structured text, etc.), supporting third-party software development, facilitating users to customize control strategies according to needs.​

• High-Reliability Design：Equipped with perfect power monitoring and watchdog functions, strong anti-electromagnetic interference ability, ensuring stable operation in complex industrial environments.​

• Manufacturing Production Lines：Used for logic control and process regulation of production lines for auto parts, electronic components, etc., coordinating the collaborative work of various equipment.​

• Municipal Public Facilities：In sewage treatment and urban water supply systems, control pumps, valves and other equipment to realize automatic regulation of liquid level and flow.​

• Food and Beverage Industry：Adapt to the control of filling and packaging equipment, precisely regulate the production rhythm, ensuring stable product quality.​

• Warehousing and Logistics Systems：Control stackers, conveyors and other equipment in automated stereoscopic warehouses to realize efficient handling and storage management of materials.​

• Energy Management Systems：In small photovoltaic power stations and diesel generator sets, monitor and control the operation status of equipment to optimize energy utilization efficiency.​

• During installation, it should be kept away from strong electromagnetic interference sources (such as frequency converters, high-power motors). If unavoidable, shielding measures should be taken and good grounding should be done.​

• Before wiring, carefully check the interface definition to avoid damage to the internal circuit caused by high-voltage access to the signal terminal.​

• Before first use, parameters configuration and program download must be completed through special software to ensure matching with on-site equipment.​

• Regularly check the firmware version and update in time to obtain new functions and security patches.​

• When reusing after long-term shutdown, check the power supply voltage and wiring status first, and power on only after confirmation.​

The structure and details of the product：
