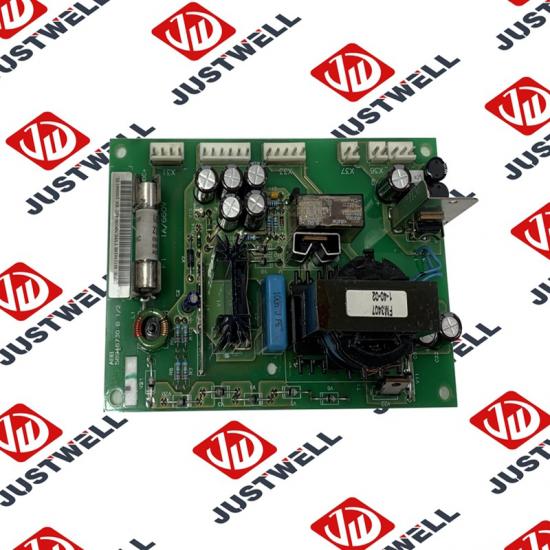

ABB NPOW-62 Power Supply Board

1. Key Parameters

• Product Model: NPOW-62 (standard identifier for ABB’s NPOW series industrial power supply boards)
• Core Function: Converts AC input to regulated, isolated DC output; provides stable power for control system components (PLCs, sensors, relays)
• Input Specifications:
  • Input Voltage Range: 100V AC~240V AC (wide-range, 50/60Hz; compatible with global power grids)
  • Input Current: 1.5A (at 100V AC), 0.8A (at 240V AC)
  • Input Protection: Overvoltage protection (clamping voltage: 300V AC), short-circuit protection (auto-recovery)
• Output Specifications:
  • Output Voltage: 24V DC (fixed, regulated)
  • Output Current: 6.2A (continuous rating; 8A peak for 10s to handle inrush currents)
  • Voltage Regulation: ±1% (at full load, 25℃ ambient temperature)
  • Ripple & Noise: ≤50mVpp (measured at 20MHz bandwidth)
• Isolation & Safety:
  • Isolation Voltage: 3kVrms (input to output), 2kVrms (input to ground), 1kVrms (output to ground)
  • Safety Standards Compliance: IEC 61558-2-1, UL 60950-1 (for low-voltage power supplies)
  • Protection Features: Overcurrent protection (foldback mode, auto-recovery), overtemperature protection (shutdown at 85℃, auto-recovery when cooled)
• Mechanical Specifications:
  • Dimensions (W×H×D): 120mm × 100mm × 30mm (board-level design; compatible with 35mm DIN rail mounting via adapter)

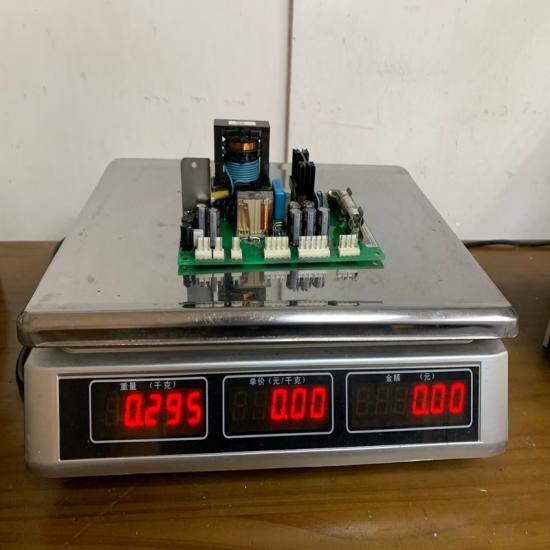

  • Weight: Approximately 180g
  • Mounting: DIN rail (35mm, EN 60715) or panel mounting (via screw holes)
  • Terminal Type: Screw terminals (accept 0.5mm²~2.5mm² copper conductors)
• Environmental Ratings:
  • Operating Temperature Range: -20℃~+70℃ (-4℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6)
  • Shock Resistance: 50g acceleration (11ms duration, IEC 60068-2-27)

2. Key Features

• Wide Input Voltage Range: 100V AC~240V AC universal input eliminates the need for voltage selectors, enabling global deployment in industrial facilities (e.g., 110V AC in North America, 230V AC in Europe/Asia).
• High Output Stability: ±1% voltage regulation and ≤50mVpp ripple/noise ensure clean, consistent 24V DC power—critical for sensitive devices like PLC I/O modules and precision sensors, preventing data errors or malfunction due to power fluctuations.
• Robust Protection Mechanisms: Integrated overvoltage, short-circuit, overcurrent, and overtemperature protection safeguards both the power supply board and connected loads (e.g., prevents sensor damage from current surges).
• High Isolation Voltage: 3kVrms input-output isolation reduces electromagnetic interference (EMI) and eliminates ground loops, ensuring compatibility with noisy industrial environments (e.g., near high-power motors or inverters).
• Compact & Flexible Mounting: Slim board design (120mm×100mm×30mm) and support for DIN rail/panel mounting save space in control cabinets, adapting to dense equipment layouts (e.g., motor control centers, automation panels).
• Inrush Current Handling: 8A peak output current (10s duration) accommodates startup inrush from capacitive loads (e.g., relay coils, PLC power supplies) without triggering overcurrent protection—simplifying system commissioning.
• Industrial Durability: Wide temperature tolerance (-20℃~+70℃), anti-vibration performance, and humidity resistance ensure reliable operation in harsh conditions (e.g., manufacturing plants, mining facilities, outdoor substations).

3. Application Fields

• Industrial Automation: Powers PLCs, HMI panels, and I/O modules in manufacturing lines (automotive, electronics, food processing)—ensuring continuous operation of control logic for production processes.
• Motor Control Systems: Supplies 24V DC to contactors, overload relays, and motor starter auxiliary circuits in motor control centers (MCCs)—supporting reliable motor on/off and protection functions.
• Sensor Networks: Provides stable power to proximity sensors, photoelectric sensors, and pressure transducers in material handling systems (conveyors, robotic arms)—preventing sensor signal loss due to voltage dips.
• Building Automation: Powers BMS (Building Management System) controllers, HVAC actuators, and lighting control modules in commercial buildings—ensuring consistent operation of climate and lighting systems.
• Renewable Energy Facilities: Supplies auxiliary power to inverter control boards, weather monitoring sensors, and grid-connection relays in solar farms and wind parks—supporting stable energy production and grid compliance.
• Critical Infrastructure: Powers control circuits for wastewater treatment pumps, airport baggage handling systems, and hospital medical equipment—ensuring uninterrupted service for life-critical or mission-critical applications.

4. Precautions

• Input Voltage Compatibility: Ensure the input voltage falls within 100V AC~240V AC—connecting voltages outside this range (e.g., 380V AC) will permanently damage the power supply board.
• Output Load Limitation: Do not exceed the 6.2A continuous output current or 8A peak current (10s)—overloading causes overcurrent protection to trigger, interrupting power to connected devices and potentially damaging the board.
• Wiring Safety:
  • Use copper conductors of the recommended size (0.5mm²~2.5mm²) to avoid voltage drop or terminal overheating.
  • Torque terminal screws to 0.8~1.2N·m (per ABB specifications) to prevent loose connections (which cause arcing or overheating).
  • Separate input power cables from output control cables to minimize EMI interference.
• Isolation Compliance: Do not bypass or modify the isolation circuitry—compromised isolation increases EMI and risks electric shock to personnel or damage to connected equipment.
• Environmental Limits: Avoid installation in condensing humidity (>95% RH) or temperatures beyond -20℃~+70℃. In dusty or corrosive environments (e.g., chemical plants), install the board in a sealed, filtered enclosure to prevent component degradation.
• Maintenance Safety: Disconnect input power before inspecting or replacing the board—capacitors may retain charge for up to 5 minutes, posing electric shock risks. Use a multimeter to verify no residual voltage before handling
