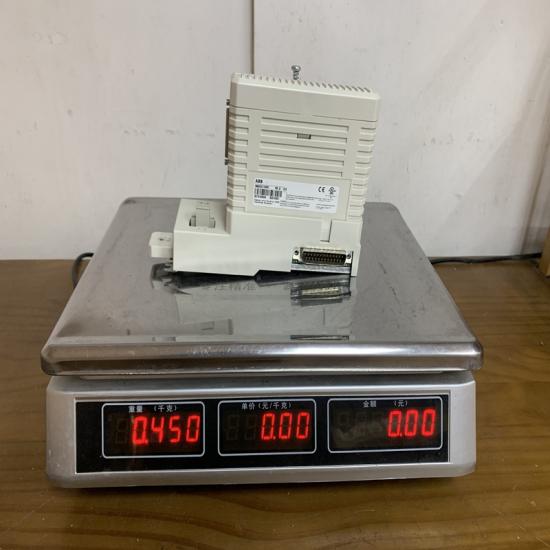

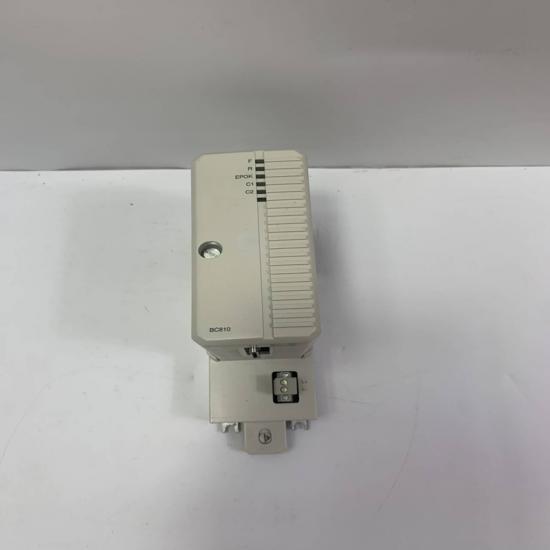

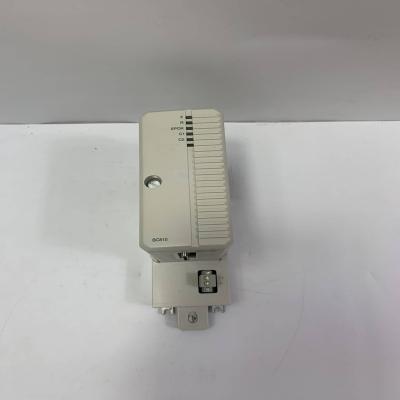

ABB BC810K02-eA (Order Code: 3BSE031155R2) I/O Module

1. Key Parameters

• Product Model: BC810K02-eA
• Order Code/Part Number: 3BSE031155R2 (unique identifier for procurement and compatibility verification)
• Product Series: AC 800M I/O family (ABB’s modular I/O solution for distributed control systems)
• Core Function: Digital input (DI) and digital output (DO) signal processing; facilitates data exchange between AC 800M controller and field devices
• I/O Configuration:
  • Digital Inputs (DI): 16 channels (24V DC, sinking/sourcing configurable)
  • Digital Outputs (DO): 16 channels (24V DC, sinking type; max 0.5A per channel, 4A total for all channels)
• Electrical Ratings:
  • Input Voltage (DI): 24V DC (±10% tolerance); Input current: ≤5mA per channel (active state)
  • Output Voltage (DO): 24V DC (±10% tolerance); Output current: 0.5A per channel (continuous), 2A per channel (peak, 1s duration)
  • Isolation Level: 2.5kVrms (between I/O channels and backplane; between DI and DO circuits)
• Communication Interface:
  • Backplane Communication: ABB proprietary PRONETA bus (for high-speed data exchange with AC 800M controller; baud rate: 100Mbps, deterministic cycle ≤1ms)
  • Diagnostic Communication: Integrated with AC 800M’s system diagnostics via Control Builder M software
• Mechanical Specifications:
  • Dimensions (W×H×D): 25mm × 100mm × 160mm (1-module width, compatible with ABB’s standard I/O rack)
  • Mounting: Rack-mounted (fits ABB’s AC 800M I/O racks; hot-swappable for maintenance without system shutdown)
  • Terminal Type: Spring-clamp terminals (accepts 0.25mm²~1.5mm² copper conductors; tool-less wiring for quick installation)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27)
• Compliance Standards: IEC 61131-2 (industrial programmable controllers), IEC 61000-6-2 (EMC immunity), UL 508 (industrial control equipment)

2. Key Features

• High-Density I/O Integration: 16 DI + 16 DO channels in a compact 25mm-wide module—maximizes I/O density in control racks, reducing cabinet space requirements for large-scale automation systems (e.g., chemical plants, power stations).
• Dual Configurable DI Type: Digital inputs support both sinking and sourcing modes (via software configuration in Control Builder M)—eliminates the need for separate DI modules for different field device types (e.g., NPN vs. PNP sensors).
• Robust Isolation: 2.5kVrms galvanic isolation between I/O channels and the controller backplane prevents ground loops and electromagnetic interference (EMI) from high-power field equipment (e.g., motors, inverters), ensuring stable signal acquisition.
• Hot-Swappable Design: Supports hot swapping (removal/installation while the AC 800M system is running)—minimizes downtime during module maintenance or replacement, critical for continuous-process industries (e.g., oil refining, pulp and paper).
• Advanced Diagnostics: Built-in diagnostic functions monitor channel-level faults (e.g., open circuits, short circuits, overcurrent) and communicate real-time status to the AC 800M controller—enabling quick fault localization and reducing troubleshooting time.
• Fast Signal Response: DI channel response time ≤1ms (for critical control signals); DO output switching time ≤0.1ms—ensures timely execution of control logic, suitable for high-speed processes (e.g., packaging lines, robotic assembly).
• Seamless AC 800M Integration: Pre-integrated with ABB’s Control Builder M software (no custom drivers required)—simplifies configuration, programming, and system commissioning, ensuring compatibility with the entire AC 800M ecosystem.

3. Application Fields

• Process Industry: Used in chemical, petrochemical, and pharmaceutical plants to connect sensors (e.g., level switches, pressure switches) and actuators (e.g., solenoid valves, pump starters) to AC 800M controllers—enabling precise control of batch or continuous processes.
• Power Generation: Integrates with AC 800M systems in thermal power plants, nuclear power plants, and renewable energy facilities (solar/wind) to monitor and control auxiliary equipment (e.g., boiler feedwater pumps, turbine valves) via DI/DO signals.
• Manufacturing Automation: Deployed in automotive, electronics, and food processing lines to interface with proximity sensors (part detection), limit switches (machine position), and robotic grippers—supporting synchronized production workflows.
• Water & Wastewater Treatment: Connects float switches (water level), pressure transducers, and valve actuators to AC 800M controllers—ensuring reliable operation of filtration, aeration, and pumping systems.
• Marine & Offshore: Suitable for shipboard automation (e.g., engine room control, cargo handling) and offshore platforms (oil/gas exploration)—withstands harsh marine environments (humidity, vibration) while maintaining signal integrity.
• Mining & Metals: Used in mining operations (conveyor control, crusher monitoring) and steel mills (rolling mill automation) to handle rugged field conditions—connecting dust-resistant sensors and heavy-duty actuators to the control system.

4. Precautions

• System Compatibility: Use exclusively with ABB AC 800M controllers and compatible I/O racks—non-ABB controllers or racks will cause communication failures or incorrect signal processing, risking process disruption.
• Voltage & Current Limits:
  • Ensure DI/DO circuits use 24V DC power (±10% tolerance)—exceeding voltage limits damages input/output circuits.
  • Do not exceed 0.5A continuous current per DO channel or 4A total current—overloading triggers overcurrent protection and may burn out output stages.
• Wiring Best Practices:
  • Use shielded twisted-pair cables for DI/DO wiring (minimum 0.25mm² copper) to minimize EMI; ground cable shields at the controller end (single-point grounding).
  • Label each I/O channel clearly (e.g., “Tank Level Switch DI1,” “Pump Solenoid DO3”) to simplify troubleshooting and avoid wiring errors.
• Hot-Swap Procedure: Follow ABB’s hot-swap guidelines (disable the module via Control Builder M before removal) to prevent data loss or controller faults—do not force removal/insertion while the system is active.
• Environmental Protection: Install in a climate-controlled, dust-proof cabinet in harsh environments (e.g., offshore platforms, mining sites); avoid exposure to corrosive gases (e.g., salt spray, sulfur dioxide) or temperatures beyond -25℃~+70℃.
• Firmware Maintenance: Keep the module’s firmware updated to the latest version (via Control Builder M) to ensure compatibility with AC 800M controller firmware and access to new diagnostic features—outdated firmware may cause communication or stability issues
