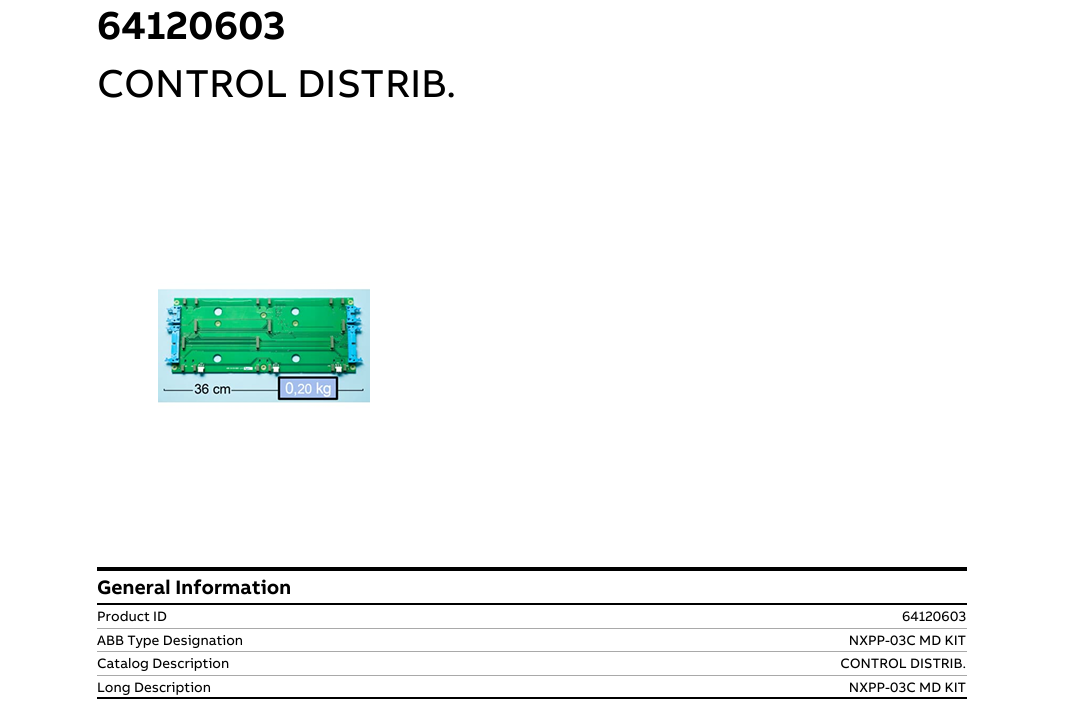

ABB NXPP-03C Control Distribution Board

1. Key Parameters

• Product Model: NXPP-03C (standard identifier for ABB’s NXPP series control distribution boards)
• Core Function: Centralized distribution, protection, and isolation of LV control circuits (24V DC/110V DC/230V AC) for industrial equipment, sensors, and actuators
• Rated Voltage:
  • Control Circuit: 24V DC, 110V DC, 230V AC (50/60Hz)
  • Insulation Voltage (Ui): 690V AC
• Current Ratings:
  • Maximum Total Current: 32A (sum of all outgoing circuits)
  • Individual Circuit Current: Up to 10A (per outgoing branch)
• Circuit Configuration:
  • Incoming Circuit: 1× main input (with 32A miniature circuit breaker, MCB)
  • Outgoing Circuits: 12× branch circuits (each with 10A MCB for overcurrent protection)
  • Distribution Busbar: Copper busbar (rated 32A, tinned for corrosion resistance)
• Protection Features:
  • Overcurrent Protection: Miniature circuit breakers (MCBs) with C-curve tripping characteristics (5~10× Iₙ) for control circuit protection
  • Short-Circuit Protection: MCB breaking capacity 6kA at 230V AC
  • Isolation: 2.5kVrms isolation between incoming and outgoing circuits (compliant with IEC 61140)
• Mechanical Specifications:
  • Dimensions (W×H×D): 300mm × 400mm × 150mm (wall-mounted enclosure)
  • Enclosure Material: Powder-coated steel (RAL 7035 light gray)
  • Mounting: Wall-mounted (via rear mounting lugs)
  • Door: Hinged door with lockable latch (IP40 protection when closed)
  • Terminal Type: Screw terminals (accept 0.5mm²~2.5mm² copper conductors)
• Environmental Ratings:
  • Operating Temperature Range: -5℃~+40℃ (23℉~104℉)
  • Storage Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Humidity Tolerance: ≤90% RH (non-condensing)
  • Protection Class: IP40 (enclosure); IP20 (internal components when door is open)
• Compliance Standards: IEC 61439-1 (low-voltage switchgear assemblies), EN 61439-1, UL 508A (industrial control panels)

2. Key Features

• Centralized Control Distribution: Integrates 12 outgoing circuits in a compact enclosure, consolidating control signal and auxiliary power distribution—reducing wiring clutter in control rooms and simplifying system troubleshooting.
• Integrated Protection: Each branch circuit is protected by a 10A MCB with C-curve tripping, preventing overloads or short circuits in individual control loops (e.g., sensor wiring, actuator solenoids) from affecting the entire system.
• Robust Enclosure Design: Powder-coated steel enclosure with IP40 protection shields internal components from dust and accidental contact—suitable for installation in industrial environments (e.g., factory floors, switchgear rooms).
• Flexible Voltage Compatibility: Supports multiple control voltages (24V DC, 110V DC, 230V AC) without hardware modifications, adapting to diverse industrial control systems (e.g., PLC I/O modules, relay panels, sensor networks).
• Easy Installation & Maintenance: Hinged, lockable door provides quick access to terminals and MCBs; clear labeling of incoming/outgoing circuits simplifies wiring and fault identification. Removable terminal blocks facilitate wire replacement.
• Space-Saving Design: Compact 300mm×400mm footprint fits in tight spaces (e.g., wall-mounted near machinery or inside control cabinets), ideal for applications with limited installation area.
• Safety Compliance: 2.5kVrms isolation and lockable door meet industrial safety standards, protecting personnel from electric shock and preventing unauthorized access to live components.

3. Application Fields

• Industrial Automation: Distributes control power to PLC I/O modules, proximity sensors, and solenoid valves in manufacturing lines (automotive, electronics, food processing)—centralizing protection for critical control circuits.
• Motor Control Centers (MCCs): Supplies auxiliary power to motor starters, contactors, and overload relays in MCCs—simplifying wiring for motor control logic (e.g., start/stop signals, interlocks).
• HVAC Systems: Distributes control voltage to actuators, dampers, and temperature sensors in commercial building HVAC systems—ensuring reliable operation of climate control loops.
• Water & Wastewater Treatment: Manages control circuits for pump starters, valve actuators, and level sensors in treatment plants—protecting against wiring faults in humid environments.
• Material Handling: Powers control circuits for conveyor sensors, robotic grippers, and position switches in warehouses and logistics centers—supporting synchronized material flow.
• Renewable Energy Plants: Distributes auxiliary power to inverter control systems, weather sensors, and grid-connection relays in solar farms and wind parks—ensuring stable operation of monitoring and control loops.

4. Precautions

• Voltage Matching: Ensure the incoming voltage matches the rated control voltage (24V DC/110V DC/230V AC)—connecting incorrect voltage will damage MCBs and internal components.
• Current Loading: Do not exceed the 32A total current rating or 10A per branch circuit—overloading causes MCB tripping, voltage drops, or overheating of busbars.
• Wiring Safety: Use copper conductors of recommended size (0.5mm²~2.5mm²) and torque terminal screws to 0.8~1.2N·m (per ABB specifications) to prevent loose connections and overheating.
• Environmental Protection: Install in a dry, well-ventilated area; avoid direct exposure to water, corrosive gases, or temperatures beyond -5℃~+40℃. Use a protective cover in dusty environments.
• Access Control: Keep the door locked when not in use to prevent unauthorized access to live components. Disconnect the main power before performing maintenance (e.g., wiring changes, MCB replacement).
• Circuit Labeling: Maintain clear labels for each outgoing circuit (e.g., “Conveyor #1 Sensor,” “Pump Solenoid”) to simplify troubleshooting and ensure correct reconnection after maintenance
