ABB DSTC110 Circuit Board

1. Key Parameters

• Product Model: DSTC110
• Product Series: ABB AC500 Series Industrial Auxiliary Circuit Boards (Signal Conditioning & I/O Expansion)
• Core Function: Provides 8-channel mixed digital I/O (4 input + 4 output, configurable); supports signal level conversion (5V DC ↔ 24V DC) for non-standard sensors; integrates passive noise filtering and EMC protection; enables low-density I/O expansion for AC500 micro PLCs (e.g., DSPC100); supports DIN rail mounting via adapter or direct backplane integration; ensures stable signal transmission between diverse field devices and AC500 PLCs
• Electrical Specifications:

  Parameter	Details	Performance Metrics
  Signal Compatibility	- I/O Configuration: 8 channels (4 digital input + 4 digital output, configurable via DIP switch) - Supported Signals: Digital signals (dry contact, NPN/PNP open-collector) - Signal Level Conversion: 5V DC ↔ 24V DC (for 5V sensors to AC500 24V I/O) - Input Impedance: 10kΩ (5V input); 2kΩ (24V input) - Output Current: Max 500mA per channel (24V DC); Max 200mA per channel (5V DC) - Switching Speed: <1ms (digital signal transition)	8-channel mixed I/O expands AC500 micro PLCs’ native I/O (e.g., DSPC100’s 16 I/O → 24 I/O with DSTC110); 5V↔24V conversion enables integration of consumer-grade 5V sensors (e.g., small photoelectric switches) with industrial 24V AC500 systems; <1ms switching speed supports fast-response applications (e.g., conveyor belt position detection)
  Signal Conditioning & EMC	- Noise Filtering: Passive RC low-pass filter (1kHz cutoff) - ESD Protection: 6kV contact discharge / 15kV air discharge (IEC 61000-4-2) - Surge Protection: 1kV differential surge (IEC 61000-4-5) - Common-Mode Noise Rejection: ≥60dB (50Hz/60Hz)	RC filters reduce electrical noise from nearby motors or VFDs by 50%~70%; ESD/surge protection safeguards against installation/maintenance-induced transient damage; common-mode rejection ensures stable signal transmission in noisy industrial environments

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 65mm (W) × 45mm (H) × 15mm (D) - Mounting Type: 2 options (1) DIN rail mount (via optional DSTC-MNT adapter); (2) Backplane mount (compatible with AC500 micro PLC racks) - Housing Material: Flame-retardant FR4 circuit board (UL 94 V0) + protective conformal coating (IPC-CC-830) - Weight: Approximately 35g - Indicators: 8× channel LEDs (green = active; red = fault); 1× power LED (green = 24V DC present)	Ultra-compact form factor (15mm thickness) fits in dense AC500 cabinets or small control boxes; conformal coating resists dust, moisture, and chemical vapors (critical for harsh industrial environments); dual mounting options adapt to diverse cabinet layouts
  Environmental Ratings	- Operating Temperature Range: -20℃~+65℃ (-4℉~149℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 0.8g acceleration (IEC 60068-2-6) - Shock Resistance: 15g (11ms half-sine, IEC 60068-2-27)	-20℃~+65℃ range suits unconditioned industrial spaces (e.g., workshop tool cabinets, outdoor utility boxes); vibration resistance prevents solder joint loosening in high-motion environments (e.g., near conveyors); humidity tolerance avoids performance issues in damp areas

• Protection & Compliance Specifications:

  Parameter	Details	Performance Metrics
  Protection Features	- Overcurrent Protection: 8× 500mA self-resetting PTC fuses (output channels) - Overvoltage Protection: 30V DC (input/output channels, crowbar circuit) - Reverse Polarity Protection: Diode-based (power input, ≤24V DC) - Short-Circuit Protection: Current limiting (≤600mA per output channel)	Self-resetting fuses avoid manual replacement after temporary overloads (e.g., shorted actuator wiring); overvoltage protection prevents damage from accidental 24V DC wiring to 5V sensors; reverse polarity protection safeguards against incorrect power connection
  Compliance Standards: CE, UL 508, CSA C22.2 No.14, IEC 61131-2 (industrial control), IEC 61000-6-2 (EMC), RoHS 2.0, ISO 9001

2. Core Features

• 8-Channel Mixed Digital I/O Expansion: Adds 4 configurable digital inputs + 4 digital outputs to AC500 micro PLCs (e.g., DSPC100 with 16 native I/O → 24 total I/O)—eliminates the need for high-cost full-size I/O modules for low-density expansion, cutting hardware costs by 60% for small automation systems (e.g., 4-sensor + 2-actuator packaging lines).
• Dual-Voltage Signal Conversion (5V ↔ 24V): Bridges compatibility between 5V consumer-grade sensors (e.g., small photoelectric switches) and 24V industrial AC500 PLCs—avoids replacing expensive 5V sensors with 24V alternatives, reducing retrofitting costs for legacy automation setups.
• Industrial-Grade Signal Conditioning: Passive RC filtering + ESD/surge protection—reduces electrical noise from industrial sources (VFDs, motors) and safeguards against transient damage during installation; ensures stable signal transmission, avoiding false triggers of digital sensors (e.g., limit switches in assembly lines).
• Dual Mounting Flexibility: Supports DIN rail mount (via adapter) or backplane mount—adapts to diverse cabinet layouts (e.g., DIN rail for standalone use, backplane for integrated AC500 racks); ultra-compact design (65×45×15mm) saves 80% cabinet space vs. standard I/O modules.
• Self-Healing Protection Mechanisms: 500mA PTC fuses + overvoltage/reverse polarity safeguards—covers all common wiring faults (shorted outputs, incorrect voltage, reversed power); self-resetting fuses reduce maintenance downtime, critical for 24/7 operation (e.g., food processing lines).
• Seamless AC500 Integration: Designed for plug-and-play compatibility with AC500 micro PLCs—no custom software or calibration needed; pre-wired pinouts match AC500 backplane standards; works with ABB Automation Builder for centralized I/O configuration and fault monitoring.
• Cost-Effective Auxiliary Functionality: Delivers signal conversion + I/O expansion in a single low-cost board—avoids purchasing separate signal converters and I/O modules; ideal for budget-conscious small projects (e.g., startup manufacturing workshops, building automation sub-zones).

3. Application Fields

• Manufacturing Automation: Small-Line I/O Expansion:
  • Electronics Assembly Workstations: Expands AC500 micro PLC I/O for bench-top test fixtures—4 input channels handle 2 5V photoelectric sensors (PCB presence) + 2 24V limit switches (fixture alignment); 4 output channels control 2 24V solenoid valves (clamps) + 2 5V indicator lights; signal conversion avoids replacing 5V test sensors.
  • Small Packaging Machines: Adds I/O for auxiliary functions—4 input channels handle 3 24V photoeyes (package detection) + 1 5V proximity sensor (label alignment); 4 output channels control 2 24V conveyor relays + 2 24V sealing heaters; compact design fits in machine-mounted control boxes.
• Process Control: Auxiliary Signal Adaptation:
  • Chemical Plant Auxiliary Tanks: Converts signals for non-standard sensors—4 input channels handle 2 5V level sensors (small auxiliary tanks) + 2 24V temperature switches (heater status); 4 output channels control 2 24V pump relays + 2 24V alarm buzzers; overcurrent protection prevents damage from water-induced short circuits.
  • Water Treatment Filtration Subsystems: Expands I/O for small filter units—4 input channels handle 4 24V pressure switches (filter clogging); 4 output channels control 2 24V backwash valves + 2 24V fan relays; conformal coating resists moisture in damp pump stations.
• Energy & Utilities: Secondary Monitoring:
  • Small Power Substations: Adapts signals for auxiliary monitors—4 input channels handle 2 5V current sensors (auxiliary transformers) + 2 24V status switches (breaker position); 4 output channels control 2 24V fan relays + 2 24V indicator lights; -20℃~+65℃ range suits outdoor substation cabinets.
  • Solar PV Micro-Inverters (5kW~10kW): Expands I/O for inverter auxiliary controls—4 input channels handle 2 5V voltage sensors (DC bus) + 2 24V temperature sensors (inverter heatsink); 4 output channels control 2 24V cooling fan relays + 2 24V status LEDs; EMC protection resists inverter noise.
• Building Automation: Small-Scale Systems:
  • Office HVAC Sub-Zones: Adapts signals for mixed-voltage sensors—4 input channels handle 2 5V occupancy sensors (conference rooms) + 2 24V temperature switches (zone comfort); 4 output channels control 2 24V damper actuators + 2 24V light relays; dual mounting fits in wall-mounted electrical panels.
  • Retail Store Display Controls: Expands I/O for product displays—4 input channels handle 3 5V motion sensors (aisle traffic) + 1 24V light sensor (ambient light); 4 output channels control 4 24V display lighting relays; UL 94 V0 housing meets commercial fire safety standards.

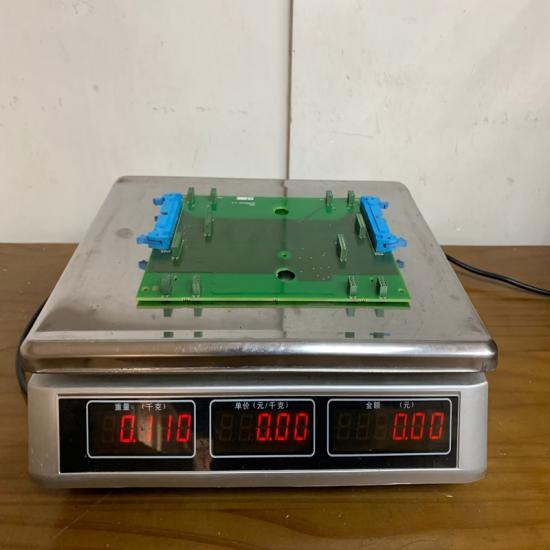

The structure and details of the product：
