ABB DSTC456 Multiplexer

1. Key Parameters

• Product Model: DSTC456
• Product Series: ABB AC500 Series Industrial Analog Signal Multiplexers (High-Precision Signal Switching)
• Core Function: Provides 16-channel analog input multiplexing (4-20mA / 0-5V / 0-10V, configurable) with 1 or 2 analog outputs; delivers 2kV AC galvanic isolation (input-output, channel-channel); integrates active signal filtering and linearization; supports remote channel switching via Modbus RTU; offers real-time fault diagnostics; enables cost-efficient expansion of AC500 analog I/O capacity; supports DIN rail mounting
• Electrical & Signal Specifications:

  Parameter	Details	Performance Metrics
  Signal Compatibility	- Input Channels: 16 independent analog input channels (configurable per channel) - Output Channels: 1 primary + 1 redundant analog output (selectable via software) - Supported Signals: 4-20mA (sinking/sourcing), 0-5V, 0-10V - Input Impedance: 25Ω (4-20mA); 1MΩ (0-5V/0-10V) - Linearization Error: ±0.05% (full-scale range, 25℃) - Switching Speed: <10ms (channel-to-channel transition)	16-input multiplexing reduces the number of AC500 analog I/O modules needed (e.g., 1 DSTC456 + 1 DSMB340 replaces 4 DSMB340s), cutting hardware costs by 75%; <10ms switching speed supports dynamic process monitoring (e.g., batch chemical reactor sampling)
  Isolation & EMC Performance	- Galvanic Isolation: 2kV AC (input to output, input to ground, channel to channel) for 1 minute - Insulation Resistance: ≥500MΩ (500V DC, input-output) - Common-Mode Rejection Ratio (CMRR): ≥90dB (50Hz/60Hz) - EMC Compliance: EN 61000-6-2 (immunity: Level 4); EN 61000-6-3 (emission: Class B) - Noise Suppression: Active 2nd-order low-pass filter (1Hz/10Hz/100Hz, configurable) + 50Hz/60Hz notch filter	2kV isolation eliminates ground loops in distributed sensor networks (e.g., 16 pressure sensors across a chemical plant); CMRR ≥90dB suppresses common-mode noise from long wiring runs (200m+); active filtering ensures <0.1% measurement error for critical processes

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 150mm (W) × 100mm (H) × 75mm (D) - Mounting Type: DIN rail mount (EN 50022, 35mm, tool-less snap-on) - Housing Material: Flame-retardant aluminum alloy (heat dissipation) + UL 94 V0 plastic panel - Weight: Approximately 650g - Indicators: 16× input channel LEDs (green = active, red = fault); 2× output LEDs (green = normal); 1× power LED (green = powered); 1× communication LED (blue = Modbus active)	Aluminum alloy housing enhances passive heat dissipation for 24/7 operation; 4-color LEDs enable precise fault localization (e.g., red input LED = shorted sensor); tool-less mounting simplifies integration into dense AC500 control cabinets
  Environmental Ratings	- Operating Temperature Range: -30℃~+75℃ (-22℉~167℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing/condensing, up to 55℃) - Vibration Resistance: 10~500Hz, 1.5g acceleration (IEC 60068-2-6) - Shock Resistance: 25g (11ms half-sine, IEC 60068-2-27)	-30℃~+75℃ range suits extreme environments (arctic substations, desert solar farms); condensing humidity tolerance eliminates dehumidifiers in damp areas (e.g., water treatment plants); 1.5g vibration resistance withstands pump/turbine-induced shocks

• Protection & Compliance Specifications:

  Parameter	Details	Performance Metrics
  Protection Features	- Overcurrent Protection: 16× 50mA self-resetting PTC fuses (input channels) - Overvoltage Protection: 30V DC (0-5V/0-10V channels); 60V DC (4-20mA channels) (crowbar circuit) - ESD Protection: 15kV air discharge / 8kV contact discharge (IEC 61000-4-2) - Reverse Polarity Protection: Diode-based (all input channels, ≤24V DC)	Self-resetting fuses avoid manual replacement after temporary overloads (e.g., sensor startup inrush); overvoltage protection prevents damage from accidental 24V DC wiring to 0-10V channels; ESD protection safeguards against maintenance-related static discharge
  Communication & Control	- Communication Interface: RS-485 Modbus RTU (baud rate: 9600~115200 bps, configurable) - Control Mode: Remote software control (via AC500 PLC or SCADA) + local manual switching (via DIP switch) - Diagnostic Data: Channel status, temperature, isolation integrity (transmitted via Modbus)	Modbus RTU enables remote channel switching and diagnostics (e.g., "switch to Channel 8" via AC500 HMI); local DIP switch provides backup control during communication failures; diagnostic data supports predictive maintenance
  Compliance Standards: CE, UL 508, CSA C22.2 No.14, IEC 61131-2 (industrial control), IEC 61000-6-2 (EMC), RoHS 2.0, ISO 9001

2. Core Features

• 16-Channel Analog Multiplexing: Enables switching of 16 analog input channels (4-20mA/0-5V/0-10V) to 1 or 2 AC500 analog I/O modules—reduces the number of PLC analog modules required by 80% (e.g., 1 DSTC456 + 1 DSMB340 replaces 4 DSMB340s), cutting hardware and wiring costs significantly for large sensor networks.
• 2kV Galvanic Isolation (Full Isolation): Input-output, inter-channel, and input-ground isolation—eliminates ground loops in distributed sensor systems (e.g., 16 pressure sensors across a 1km oil pipeline); 500MΩ insulation resistance ensures long-term isolation integrity, preventing signal drift and PLC damage from ground potential differences.
• High-Precision Signal Integrity: ±0.05% linearization error + <10ms switching speed + active filtering—maintains AC500 analog I/O precision (up to 16-bit) for critical measurements (e.g., pharmaceutical batch pH control, semiconductor wafer temperature monitoring); active low-pass filters reduce noise by 80%~90%, ensuring <0.1% measurement error.
• Remote & Local Control Flexibility: RS-485 Modbus RTU remote control + local DIP switch backup—enables dynamic channel switching via AC500 PLC/SCADA (e.g., automated sampling of 16 reactor sensors every 10 seconds); local switching ensures operation during communication outages, critical for continuous processes.
• Comprehensive Diagnostics & Predictive Maintenance: Real-time channel status, temperature, and isolation data (via Modbus)—technicians can remotely monitor fault conditions (e.g., shorted sensor, isolation degradation) and predict failures (e.g., rising internal temperature); 16 individual LEDs provide on-site visual confirmation of channel health.
• Industrial-Grade Durability: Aluminum alloy housing + -30℃~+75℃ operating range—withstands extreme temperatures, humidity, and vibration in harsh environments (e.g., offshore oil platforms, mining processing plants); 25g shock resistance survives transportation and cabinet maintenance impacts, extending service life to 10+ years.
• Seamless AC500 Integration: Pre-built function blocks in ABB Automation Builder—enables plug-and-play configuration of channel switching, diagnostics, and fault handling; compatible with all AC500 analog I/O modules (e.g., DSMB340, DSMB310); terminal blocks accept 22AWG~18AWG twisted-pair shielded cables, optimizing signal transmission.

3. Application Fields

• Process Control: Distributed Sensor Networks:
  • Oil Refineries: Multiplexes 16× 4-20mA pressure sensors (pipeline segments) to 1 AC500 DSMB340 module—enables centralized monitoring of pipeline pressure across a 5km site; 2kV isolation eliminates ground loops between remote sensor nodes and the control room; Modbus control automates pressure sampling every 5 seconds, supporting leak detection.
  • Chemical Plants: Switches 16× 0-10V temperature sensors (batch reactors) to 2 redundant AC500 analog modules—±0.05% linearization error complies with FDA batch validation requirements; self-resetting fuses avoid batch interruptions from temporary sensor shorts; condensing humidity tolerance suits damp reactor control rooms.
• Energy & Utilities: Substation & Renewable Monitoring:
  • EHV Substations (500kV+): Multiplexes 16× 4-20mA current sensors (transformer windings) to 1 AC500 PLC—reduces analog module count and cabinet space; -30℃~+75℃ range suits outdoor substation cabinets; isolation protects PLCs from substation ground faults, ensuring reliable power quality monitoring.
  • Solar PV Plants (2GW+): Switches 16× 4-20mA DC current sensors (PV strings) to 1 AC500 analog module—Modbus control enables sequential sampling of 100+ strings via 6 DSTC456 units; active filtering suppresses inverter noise, ensuring accurate current measurements for power yield optimization.
• Manufacturing Automation: High-Precision Testing:
  • Automotive Component Testing: Multiplexes 16× 4-20mA torque sensors (gearbox test stands) to 1 AC500 PLC—<10ms switching speed captures dynamic torque spikes during durability testing; ±0.05% linearity error ensures ±0.1N·m measurement precision, meeting quality control standards.
  • Semiconductor Fabs: Switches 16× 0-5V vacuum sensors (etching chambers) to 2 redundant AC500 modules—UL 94 V0 housing meets cleanroom fire safety standards; ESD protection safeguards against static discharge in cleanroom environments; low noise filtering ensures ±0.1mbar vacuum measurement accuracy.
• Water & Wastewater: Treatment Process Monitoring:
  • Municipal Water Plants: Multiplexes 16× 4-20mA turbidity sensors (filtration stages) to 1 AC500 PLC—reduces wiring complexity and maintenance costs; local DIP switch provides backup control during SCADA outages; 1.5g vibration resistance withstands pump-induced shocks in pump stations.

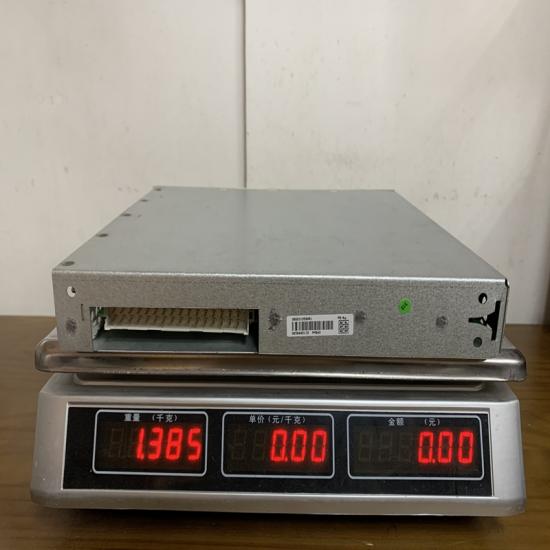

The structure and details of the product：
