ABB DSQC500 I/O Module

1. Key Parameters

• Product Model: DSQC500
• Order Code Reference: Typically paired with IRC5 controller part numbers (e.g., 3HAC028355-001) for procurement consistency
• Product Series: ABB IRC5 Robot Controller Discrete I/O Modules
• Core Function: Transmits/receives discrete electrical signals between IRC5 controllers and field devices; monitors sensor status (e.g., part presence, safety gate position); controls actuators (e.g., grippers, solenoid valves)
• I/O Configuration:
  • Digital Inputs (DI): 16 channels (24V DC; sinking/sourcing configurable via DIP switches)
    • Input Voltage Range: 18V~30V DC (logic "1"); ≤5V DC (logic "0")
    • Input Current: 3mA~10mA (at 24V DC)
    • Response Time: ≤1ms (for fast-acting sensors, e.g., emergency stop buttons)
    • Debounce Time: Fixed 10ms (prevents false triggers from mechanical switch bounce)
  • Digital Outputs (DO): 16 channels (24V DC; sourcing type)
    • Output Voltage: 24V DC ±10% (when energized)
    • Maximum Output Current: 0.5A per channel; 4A total for all channels (overcurrent protected)
    • Short-Circuit Protection: Built-in (automatic current limiting; no damage during short circuits)
    • Response Time: ≤1ms (for rapid actuation of critical devices, e.g., robot grippers)
• Electrical Specifications:
  • Power Supply (from IRC5 Backplane): 5V DC (regulated; typical current: 0.8A; maximum current: 1.2A)
  • Field Power Supply (for Outputs): 24V DC (external, isolated; separate from backplane power to avoid loading the controller)
  • Power Consumption: ≤4W (backplane power); ≤80W (max field power, at full output load)
  • Isolation: 2.5kVrms (between I/O channels, and between I/O and backplane; prevents ground loops and noise interference)
  • Surge Protection: IEC 61000-4-5 (±2kV contact discharge; ±4kV air discharge for field terminals)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); resistant to EMI from robot drives and nearby machinery
• Mechanical Specifications:
  • Housing Type: Flame-retardant plastic (UL94 V-0; with metal shielding for EMI protection)
  • Dimensions (W×H×D): 180mm × 120mm × 80mm (custom form factor; fits precisely in IRC5 controller’s I/O compartment)
  • Mounting: Chassis-mounted (screw-in installation; aligns with IRC5 controller’s internal backplane connectors)
  • Weight: Approximately 400g
  • Terminal Type: Screw terminals (for field wiring; accepts 24AWG~16AWG wires)
  • LED Indicators (on front panel):
    • Power (PWR): Green (module powered on); Red (power fault)
    • Backplane Communication (BUS): Green (normal communication with IRC5 controller); Red (communication fault)
    • Digital Inputs (DI1~DI16): Green (channel active, logic "1"); Off (logic "0")
    • Digital Outputs (DO1~DO16): Green (channel energized); Red (channel fault, e.g., short circuit)
• Environmental Ratings:
  • Operating Temperature Range: 0℃~+40℃ (32℉~104℉; matches IRC5 controller’s operating environment)
  • Storage Temperature Range: -20℃~+60℃ (-4℉~140℉; no component degradation during storage)
  • Humidity Tolerance: ≤85% RH (non-condensing, 40℃; suitable for manufacturing floors)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no terminal loosening or signal loss)
  • Shock Resistance: 15g acceleration (11ms duration, IEC 60068-2-27; maintains structural and electrical integrity)
• Compliance Standards: IEC 61131-2 (industrial I/O modules), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CE, RoHS

2. Key Features

• IRC5 Controller Exclusivity: Custom-engineered for ABB IRC5 systems—ensures plug-and-play compatibility with IRC5 backplanes and software (RobotStudio); eliminates integration issues from generic I/O modules (e.g., communication timeouts, incorrect signal mapping).
• High-Density 16x16 I/O Design: 16 digital inputs + 16 digital outputs in a compact form factor maximize I/O capacity within the IRC5 controller’s limited space—ideal for robot cells with multiple peripherals (e.g., grippers, part sensors, safety gates).
• Configurable Input Type: Sinking/sourcing selectable for digital inputs via DIP switches—supports both NPN and PNP field sensors without requiring separate modules, reducing inventory costs and simplifying wiring.
• 2.5kVrms Isolation: Industrial-grade isolation between I/O channels and backplane protects the IRC5 controller from ground loops and voltage transients (common in robot cells with large drives or welding equipment)—prevents controller damage and signal corruption.
• Built-In Output Protection: Each digital output features short-circuit and overcurrent protection, avoiding module damage from wiring faults (e.g., a shorted solenoid valve) and reducing unplanned downtime.
• Fast Response Times (≤1ms): Ensures rapid detection of critical input signals (e.g., emergency stops, part jams) and fast actuation of outputs (e.g., gripper closure)—critical for time-sensitive robot operations (e.g., high-speed packaging, assembly line synchronization).
• Intuitive LED Diagnostics: Per-channel LEDs for inputs (status) and outputs (status/fault) enable technicians to quickly troubleshoot wiring issues or faulty field devices (e.g., a sensor with no active DI LED) without specialized test equipment.

3. Application Fields

• ABB IRC5 Robot Peripheral Control: Primary application—interfaces IRC5 controllers with field devices in:
  • Automotive Manufacturing: Controls robot grippers (DO) and monitors part presence sensors (DI) for welding/assembly robots (e.g., ABB IRB 6700); triggers safety interlocks (DI) when safety gates are opened, stopping robot motion immediately.
  • Electronics Production: Actuates vacuum grippers (DO) for pick-and-place robots (e.g., ABB IRB 120) and detects PCB presence (DI) on conveyors; synchronizes robot motion with auxiliary equipment (e.g., solder paste printers) via I/O signals.
  • Food & Beverage Packaging: Controls robotic palletizer grippers (DO) and monitors case presence (DI) on infeed conveyors; activates reject mechanisms (DO) for misaligned packages, ensuring consistent pallet quality.
• Safety-Critical Robot Cell Monitoring: Enables compliance with industrial safety standards in:
  • Heavy Industry: Monitors emergency stop buttons (DI) and safety light curtains (DI) for large material-handling robots (e.g., ABB IRB 8700); cuts power to robot drives (via DO) if safety interlocks are violated.
  • Aerospace Manufacturing: Detects tool changer position (DI) for robotic drilling robots (e.g., ABB IRB 7800); ensures the correct tool is mounted before allowing motion, preventing expensive part damage.
• Robot-Auxiliary Equipment Synchronization: Facilitates coordination between robots and external machinery in:
  • Conveyor-Linked Systems: Receives conveyor "ready" signals (DI) and sends robot "part picked" signals (DO) to trigger conveyor advancement; ensures seamless material flow in assembly lines.
  • Machine Tending: Monitors CNC machine "cycle complete" signals (DI) and sends "load part" commands (DO) to robot grippers; automates part loading/unloading for CNC lathes or mills.

4. Precautions

• IRC5 Only Compatibility: Use exclusively with ABB IRC5 robot controllers. Never install in older ABB controllers (e.g., S4C+) or non-ABB systems—electrical mismatches will damage the module, IRC5 controller, or connected field devices.
• Field Wiring Guidelines:
  • Use twisted-pair shielded cables (24AWG~16AWG) for field connections to minimize noise pickup. Ground the cable shield at the field device end (not the module end) to avoid ground loops.
  • Separate input and output wiring (minimum 15cm spacing) to prevent interference from high-current output signals (e.g., gripper power) affecting sensitive input signals (e.g., safety light curtains).
• Power Supply Separation: Always use an external, isolated 24V DC power supply for digital outputs (do not share with IRC5 backplane power or other module field supplies). Shared power sources cause voltage drops during high-output loads, leading to communication errors or output failure.
• Output Load Limits: Do not exceed 0.5A per output channel or 4A total for all channels. Overloading triggers the module’s protection circuits, shutting down affected channels until the fault is resolved.
• DIP Switch Configuration: Set input sinking/sourcing DIP switches correctly before powering on the module. Incorrect settings (e.g., sourcing mode for an NPN sensor) cause no input signal detection or module damage.
• Maintenance Checks: Inspect quarterly:
  • Verify all LEDs show normal status (PWR green, BUS green, no red output faults; input LEDs align with known field device states).
  • Test input channels by manually activating field devices (e.g., pressing a limit switch) and confirming the corresponding DI LED turns green.
  • Test output channels by energizing them via RobotStudio and measuring voltage at the field terminal (should read 24V DC ±10%).
  • Tighten loose screw terminals (vibration can loosen connections over time) and clean terminals with a dry cloth to remove dust or corrosion.

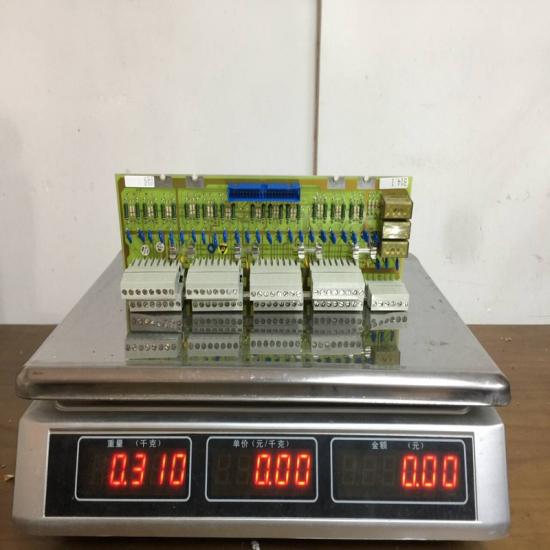

The structure and details of the product：
