ABB DSQC543 Drive Module

1. Key Parameters

• Product Model: DSQC543
• Order Code Reference: Typically paired with IRC5 controller part numbers (e.g., 3HAC028360-001) and robot axis-specific kits for procurement
• Product Series: ABB IRC5 Robot Controller Servo Drive Modules
• Core Function: Drives robot servomotors via precise AC power regulation; executes motion commands (position/speed/torque) from IRC5 control board; monitors motor health (temperature, current); provides overcurrent/overtemperature protection
• Motor Compatibility:
  • Target Motor Type: ABB IRC5-series servomotors (e.g., M2004, M3004; compatible with 3-phase permanent magnet synchronous motors)
  • Motor Power Range: 0.5kW~3kW (supports medium-payload robot axes, e.g., IRB 6700 axis 2/3, IRB 7600 axis 4)
  • Motor Voltage Rating: 230V AC (line-to-line, rated)
  • Motor Current Rating: Up to 12A (continuous); 24A (peak, 10s duration for dynamic motion)
• Electrical Input/Output Specifications:
  • Input Power (from IRC5 Power Supply): 540V DC (regulated DC bus; typical input current: 5A; peak input current: 10A)
  • Output Power (to Servomotor): 3-phase AC (variable voltage/frequency; 0V~230V AC, 0Hz~500Hz)
  • Output Current: 12A (continuous); 24A (peak, 10s)
  • Control Precision:
    • Position Resolution: ≤0.01° (when paired with 17-bit encoder motors)
    • Speed Regulation: ±0.1% (at rated speed)
    • Torque Ripple: ≤5% (at rated torque)
• Protection & Monitoring Features:
  • Electrical Protection: Overcurrent protection (24A peak limit), overvoltage protection (650V DC bus limit), undervoltage protection (450V DC bus limit), short-circuit protection (phase-to-phase, phase-to-ground)
  • Thermal Protection: Overtemperature protection (module: 85℃ shutdown; motor: 155℃ via encoder feedback)
  • Motor Monitoring: Real-time current, voltage, temperature, and encoder position feedback (via motor encoder interface)
• Communication & Control Interfaces:
  • Internal Communication: ABB proprietary drive bus (1Gbps; for high-speed data exchange with IRC5 control board—motion commands, encoder feedback, fault signals)
  • Motor Feedback Interface: 17-bit absolute encoder interface (supports ABB Hiperface®-compatible encoders; transmits real-time position/speed data)
  • Diagnostic Interface: Integrated fault logging (stores up to 50 fault events; accessible via RobotStudio software)
• Mechanical Specifications:
  • Housing Type: Metal heatsink with flame-retardant plastic cover (UL94 V-0; optimized for convection cooling)
  • Dimensions (W×H×D): 150mm × 200mm × 100mm (custom form factor; fits in IRC5 controller’s drive compartment)
  • Mounting: Chassis-mounted (screw-in installation; aligns with IRC5 DC bus connectors and drive bus)
  • Weight: Approximately 2.5kg (includes integrated heatsink)
  • LED Indicators (on front panel):
    • Power (PWR): Green (module powered on); Red (power fault)
    • Drive Status (DRV): Green (normal operation); Amber (standby mode); Red (drive fault)
    • Motor Status (MOT): Green (motor running normally); Red (motor overtemperature/fault)
    • Communication (COM): Green (drive bus communication normal); Blinking Green (data transmission); Red (communication fault)
• Environmental Ratings:
  • Operating Temperature Range: 0℃~+40℃ (32℉~104℉; ambient temperature; heatsink temperature ≤85℃)
  • Storage Temperature Range: -20℃~+60℃ (-4℉~140℉; no component degradation)
  • Humidity Tolerance: ≤85% RH (non-condensing, 40℃; suitable for manufacturing floors)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no heatsink loosening or connector damage)
  • Shock Resistance: 15g acceleration (11ms duration, IEC 60068-2-27; maintains structural integrity)
• Compliance Standards: IEC 61800-5-1 (adjustable speed electrical power drive systems), EN 61000-6-2 (EMC immunity), UL 508C (industrial power drives), CE, RoHS

2. Key Features

• IRC5 System Exclusivity: Custom-designed for ABB IRC5 controllers and servomotors—ensures perfect electrical matching with IRC5 DC bus, drive bus, and control logic; eliminates compatibility risks from third-party drives (e.g., communication latency, torque mismatch).
• High-Dynamic Motion Control: Delivers 24A peak current (10s duration) and ≤0.01° position resolution—enables fast, precise robot motion (e.g., rapid acceleration/deceleration for automotive welding robots, sub-millimeter positioning for assembly tasks).
• Integrated Motor Health Monitoring: Real-time tracking of motor temperature, current, and encoder data—triggers protective shutdowns for overheating or overcurrent, preventing permanent motor/drive damage (critical for heavy-payload robots).
• Robust Thermal Design: Integrated metal heatsink with convection cooling (no fans)—reduces dust ingress (a common cause of drive failure in manufacturing) and eliminates fan maintenance, extending module service life to ≥7 years.
• Fast Fault Detection & Logging: Detects faults (e.g., short circuits, overvoltage) in <1ms and logs up to 50 events—enables technicians to quickly identify root causes (via RobotStudio) and reduce downtime (e.g., distinguishing between motor faults and wiring issues).
• EMC Compliance: Meets EN 61000-6-2 EMC standards—resists electrical noise from nearby robot drives, welding equipment, or factory power grids, ensuring stable performance in electrically harsh environments.
• Plug-and-Play Integration: Automatically recognized by the IRC5 controller during startup; no manual configuration of motor parameters (e.g., rated current, encoder resolution)—reduces installation time for robot maintenance or drive replacement.

3. Application Fields

• ABB IRC5 Robot Axis Drive: Primary application—powers medium-payload robot axes in:
  • Automotive Manufacturing: Drives axes 2/3 of ABB IRB 6700 welding robots (payload 150kg) and axes 4/5 of IRB 7600 spot-welding robots (payload 400kg); ensures smooth joint motion for consistent weld quality.
  • Heavy Material Handling: Powers axes 3/4 of ABB IRB 8700 robots (payload 800kg) in steel mills or ports; delivers high torque for lifting heavy loads while maintaining position accuracy.
  • Electronics Production: Drives axes 1/2 of ABB IRB 2600 robots (payload 20kg) for PCB assembly; provides precise speed regulation for gentle handling of fragile electronic components.
• Dynamic Robot Operations: Enables high-performance motion in:
  • Aerospace Manufacturing: Drives axes of ABB IRB 7800 robots (payload 500kg) for aircraft component drilling; maintains sub-millimeter position accuracy to meet strict aerospace tolerances.
  • Packaging Machinery: Powers axes of ABB IRB 360 delta robots (payload 8kg) for high-speed pick-and-place; delivers fast acceleration/deceleration (up to 24A peak current) for 100+ picks per minute.
• Robot Maintenance & Retrofits: Supports IRC5 robot upgrades in:
  • Legacy IRC5 Systems: Replaces aging or faulty drive modules in 10+ year-old IRC5-based robots (e.g., IRB 6600); restores original motion performance without full controller replacement.
  • Axis-Specific Repairs: Targets individual faulty axes (e.g., a damaged IRB 6700 axis 3 drive) without replacing the entire drive assembly—reduces maintenance costs.

4. Precautions

• IRC5 & ABB Motor Exclusivity: Use exclusively with ABB IRC5 controllers and ABB-specified servomotors (e.g., M2004, M3004). Never connect to non-ABB motors or controllers—electrical mismatches (e.g., motor impedance, encoder type) will cause drive failure or motor damage.
• High-Voltage Safety:
  • Disconnect the IRC5 controller from main power and discharge the DC bus (wait 10 minutes) before handling the DSQC543—DC bus voltage (540V) poses severe electrical shock risk.
  • Never open the drive’s metal heatsink cover during operation—exposed components carry high voltage.
• Thermal Management:
  • Ensure the IRC5 controller’s drive compartment is well-ventilated (ambient temperature ≤40℃). Blocked vents or high ambient temperatures cause the drive to overheat (indicated by red DRV LED) and trigger shutdowns.
  • Do not stack objects on the drive’s heatsink—obstructs convection cooling and increases thermal stress.
• Replacement Guidelines:
  • Replace only with genuine ABB DSQC543 modules. Generic drives may not support IRC5 drive bus communication or motor feedback, leading to erratic robot motion.
  • After replacement, run a "drive calibration" via RobotStudio to synchronize the drive with the motor (sets encoder zero position, current limits)—skipping calibration causes position errors.
• Fault Handling:
  • If a red LED illuminates (e.g., DRV, MOT), power off the controller and check:
    • Motor wiring for short circuits or loose connections (phase-to-phase, phase-to-ground).
    • Motor temperature (via RobotStudio) to confirm overheating (resolve with improved ventilation).
    • DC bus voltage (via IRC5 diagnostics) to rule out overvoltage/undervoltage (caused by faulty power supply).
• Maintenance Checks: Inspect quarterly (with controller powered off):
  • Visually check motor wiring for damage (e.g., frayed insulation) or corrosion—replace damaged wires.
  • Clean the drive’s heatsink with compressed air (avoid moisture) to remove dust—dust buildup reduces heat dissipation.
  • Verify drive bus connectors are tight (vibration can loosen them)—loose connectors cause intermittent communication faults

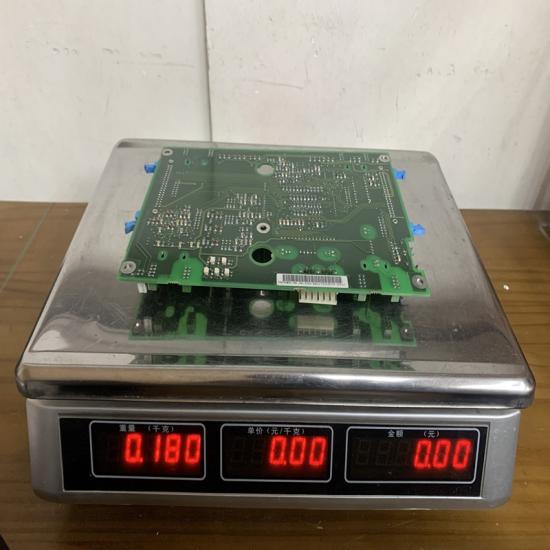

The structure and details of the product：
