ABB DSQC503A Control Board

1. Key Parameters

• Product Model: DSQC503A
• Order Code Reference: Typically paired with IRC5 controller part numbers (e.g., 3HAC028356-001) for procurement consistency
• Product Series: ABB IRC5 Robot Controller Core Control Boards
• Core Function: Executes robot motion control algorithms; processes user programs; monitors safety interlocks; manages communication with external devices (PLCs, HMIs, I/O); coordinates with robot drives
• Processing Performance:
  • Main CPU: 32-bit RISC processor (800MHz clock speed; optimized for real-time motion control calculations)
  • Motion Control Coprocessor: Dedicated 32-bit floating-point processor (600MHz; handles inverse kinematics, path planning, and axis synchronization)
  • Program Execution Speed: ≤1ms per motion instruction (enables high-precision path following for fast-moving robots)
  • Memory:
    • Flash Memory: 512MB (non-volatile; stores robot operating system, firmware, and user programs)
    • RAM: 256MB (high-speed; for real-time data processing, motion trajectory buffering, and temporary variables)
  • Supported Robot Axes: Up to 6 axes (standard) + 2 external axes (optional; for track or positioner control)
• Communication Interfaces:
  • Internal Communication: ABB proprietary backplane bus (1Gbps; for high-speed data exchange with IRC5 drives, I/O modules, and safety boards)
  • External Communication Ports:
    • Ethernet Ports: 2× 10/100/1000Base-TX (RJ45; supports Profinet, Ethernet/IP, Modbus-TCP for PLC/HMI integration)
    • Serial Port: 1× RS-232 (for legacy device communication, e.g., old-style teach pendants or data loggers)
    • Safety Communication: Supports ABB SafeMove2 protocol (for safety-related data exchange with safety I/O modules like DSQC651)
• Electrical Specifications:
  • Power Supply (from IRC5 Backplane): 5V DC (regulated; typical current: 2.5A; maximum current: 3.0A)
  • Power Consumption: ≤15W (total, including processing, communication, and logic circuits)
  • Isolation: 2.5kVrms (between external communication ports and internal circuits; prevents ground loops and noise interference)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); resistant to EMI from motors, drives, and high-voltage equipment
• Mechanical Specifications:
  • Form Factor: PCB (Printed Circuit Board) with reinforced edge connectors (compatible with IRC5 controller’s internal slot)
  • Dimensions (W×H×D): 220mm × 160mm × 20mm (custom fit for IRC5 controller’s core compartment)
  • Mounting: Slot-mounted (secures to IRC5 controller’s internal backplane via edge connectors; no additional screws required)
  • Weight: Approximately 350g
  • LED Indicators (on board edge):
    • Power (PWR): Green (board powered on); Red (power fault or under/overvoltage)
    • CPU Status (CPU): Green (normal operation); Amber (high CPU load >90%); Red (CPU fault)
    • Communication (COM): Green (Ethernet/backplane communication normal); Blinking Green (data transmission); Red (communication fault)
    • Safety Status (SAFE): Green (safety logic normal); Red (safety interlock triggered or safety fault)
    • Program Execution (RUN): Green (robot program running); Off (program stopped/idle)
• Environmental Ratings:
  • Operating Temperature Range: 0℃~+40℃ (32℉~104℉; matches IRC5 controller’s operating environment)
  • Storage Temperature Range: -20℃~+60℃ (-4℉~140℉; no component degradation during storage)
  • Humidity Tolerance: ≤85% RH (non-condensing, 40℃; suitable for manufacturing floors)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no solder joint failure or connector loosening)
  • Shock Resistance: 15g acceleration (11ms duration, IEC 60068-2-27; maintains structural and electrical integrity)
• Compliance Standards: IEC 61131-3 (programmable controllers), EN ISO 13849-1 (safety-related control systems), UL 508 (industrial control safety), CE, RoHS

2. Key Features

• IRC5 System Exclusivity: Custom-designed for ABB IRC5 controllers—ensures perfect compatibility with IRC5 drives (e.g., DSQC505-powered drives), safety modules, and software (RobotStudio); eliminates integration risks from third-party control boards.
• Dual-Processor Architecture: 800MHz main CPU + 600MHz motion coprocessor enable parallel handling of logic control and motion calculations—delivers ≤1ms motion instruction execution, critical for high-precision tasks (e.g., robotic welding, SMT component placement).
• Multi-Protocol External Communication: Supports Profinet, Ethernet/IP, and Modbus-TCP via dual Gigabit Ethernet ports—enables seamless integration with factory-wide automation systems (e.g., Siemens S7 PLCs, Rockwell ControlLogix, ABB CP-series HMIs).
• SafeMove2 Safety Logic Support: Natively integrates with ABB’s SafeMove2 safety system—monitors safety interlocks (e.g., safety gates, emergency stops) and enforces safe motion limits (e.g., restricted workspace boundaries), complying with SIL 2/PL d safety standards.
• High-Resolution Motion Control: Computes inverse kinematics and path planning with sub-millimeter accuracy—ensures robots follow programmed trajectories precisely, even at high speeds (ideal for applications like automotive body painting or precision assembly).
• Robust Industrial Design: Reinforced PCB edges, 2.5kVrms isolation, and EMC compliance protect against electrical noise, vibration, and voltage transients common in manufacturing environments—extends board service life to ≥8 years under normal operation.
• Comprehensive Diagnostics: On-board LEDs and software-accessible fault logs (via RobotStudio) provide real-time status of CPU, communication, and safety functions—enables technicians to quickly identify issues (e.g., a failed Ethernet port) and reduce downtime.

3. Application Fields

• ABB IRC5 Robot Motion Control: Primary application—controls IRC5-based robots in:
  • Automotive Manufacturing: Manages motion for welding robots (e.g., ABB IRB 6700), spot-welding robots (e.g., ABB IRB 7600), and assembly robots; ensures precise joint synchronization for consistent weld quality and part fitting.
  • Electronics Production: Controls pick-and-place robots (e.g., ABB IRB 120) and PCB inspection robots; executes high-speed, sub-millimeter motion to place tiny SMT components (0402 or smaller) accurately.
  • Heavy Material Handling: Coordinates motion for large payload robots (e.g., ABB IRB 8700) in steel mills or ports; manages safe lifting and positioning of heavy loads (up to 800kg) while monitoring safety interlocks.
• Safety-Critical Robot Operations: Enables compliant robot performance in:
  • Aerospace Manufacturing: Controls robotic drilling/fastening robots (e.g., ABB IRB 7800) for aircraft wings; uses SafeMove2 to restrict motion to predefined work zones, preventing collisions with expensive tooling.
  • Pharmaceutical Production: Manages sterile handling robots (e.g., ABB IRB 4600) in cleanrooms; ensures precise motion for vial filling and labeling while maintaining safety interlocks for GMP compliance.
• Factory Automation Integration: Facilitates robot-PLC/HMI communication in:
  • Conveyor-Linked Systems: Communicates with factory PLCs (e.g., Siemens S7-1500) to coordinate robot picking from moving conveyors; adjusts motion in real time based on conveyor speed data received via Profinet.
  • Batch Production Lines: Connects to plant HMIs (e.g., ABB CP430T) to display robot status, program progress, and alarms; enables operators to start/stop batches or modify parameters remotely.

4. Precautions

• IRC5 Only Compatibility: Use exclusively with ABB IRC5 robot controllers. Never install in older ABB controllers (e.g., S4C+) or non-ABB systems—electrical mismatches will damage the board, IRC5 components, or connected robots.
• Static Electricity Protection: Always wear an ESD (Electrostatic Discharge) wristband when handling the DSQC503A. The board’s integrated circuits are highly ESD-sensitive; static discharge can cause permanent damage (even without visible signs).
• Replacement & Configuration:
  • Replace only with genuine ABB DSQC503A boards. Generic boards may not support IRC5 firmware or SafeMove2, leading to robot malfunctions or safety risks.
  • After replacement, restore the IRC5 controller’s firmware and robot configuration (via RobotStudio backup). Failure to restore settings will result in incorrect motion parameters or communication failures.
• Avoid Overheating: Ensure the IRC5 controller’s core compartment is well-ventilated. Operating the DSQC503A above +40℃ or in dusty environments (blocked vents) causes CPU thermal throttling—slowing motion control and increasing program execution latency.
• Firmware Compatibility: Verify the DSQC503A’s firmware version matches the IRC5 controller’s system firmware (check via RobotStudio). Mismatched firmware leads to communication errors, failed motion calculations, or safety logic faults.
• Maintenance Checks: Inspect quarterly (only when IRC5 is powered off and disconnected):
  • Visually check the board for damaged components (e.g., bulging capacitors, burnt traces) or loose connectors—replace the board if damage is found (no field repairs possible).
  • Clean the board’s edge connectors with a dry, lint-free cloth to remove dust—dirty connectors cause intermittent backplane communication.
  • Verify LED status after powering on: All normal LEDs (PWR, CPU, COM, SAFE) should illuminate green; red LEDs indicate faults requiring immediate investigation.
• Fault Handling: If a red LED (e.g., CPU, SAFE) illuminates:
  • Power off the IRC5 controller and disconnect AC power.
  • Check for loose backplane connections or damaged wiring between the DSQC503A and other IRC5 modules (e.g., safety boards).
  • If the fault persists, use RobotStudio to retrieve fault logs (via Ethernet) for root cause analysis; replace the board if logs indicate internal component failure

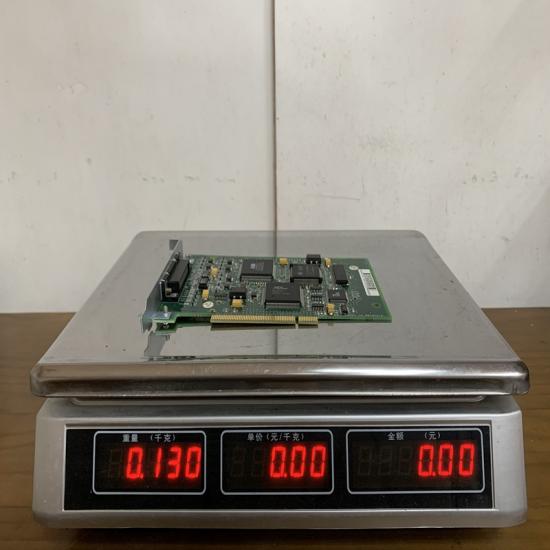

The structure and details of the product：
