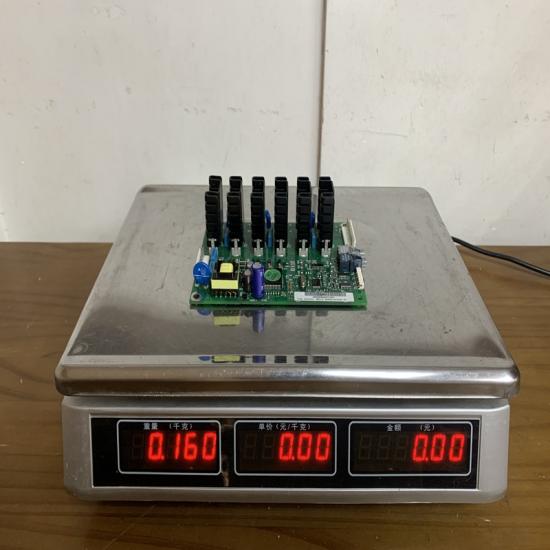

ABB DSCS116 57520001-BZ Communication Board

1. Key Parameters

• Product Model: DSCS116 57520001-BZ
• Product Series: ABB S800 I/O PROFIsafe Communication Boards (SIL 2-Compliant PROFINET Safety)
• Core Function: Enables PROFIsafe (PROFINET Safety) communication between S800 I/O modules and PROFINET safety controllers (e.g., ABB AC 800M HI, Siemens S7-1500F); supports deterministic real-time (IRT) for safety signals; provides dual-Ethernet redundancy; validates safety data integrity; offers surge protection and protocol-specific diagnostics
• Communication & Safety Specifications:

  Parameter	Details	Performance Metrics
  Safety Compliance	- Functional Safety: IEC 61508 SIL 2 (hardware/firmware); IEC 61511 SIL 2 (process safety) - Safety Protocol: PROFIsafe (IEC 61508, EN 61158) with F-CRC (Safety CRC) validation - Safety Integrity: Single-Point Fault Metric (SPFM) ≥ 90%; Diagnostic Coverage (DC) ≥ 85%	Meets safety requirements for mid-risk SIS applications (e.g., emergency stop, process interlocks), complying with OSHA, ATEX, and ISO standards
  PROFINET Compatibility	- Primary: PROFIsafe (PROFINET Safety) for safety data - Secondary: PROFINET IRT/RT for non-safety data (real-time control, diagnostics) - Data Rate: 100Mbps full-duplex (Ethernet); PROFIsafe cycle time: 0.5ms~1000ms (configurable)	Deterministic IRT ensures safety signals (e.g., E-stop commands) are transmitted with <1ms latency, avoiding process delays

• Redundancy & Protection Specifications:

  Parameter	Details	Performance Metrics
  Network Redundancy	- Redundancy Protocol: PROFINET MRP (Media Redundancy Protocol) for ring topology - Recovery Time: <50ms (MRP ring fault recovery) - Port Configuration: 2× RJ45 Ethernet ports (dual-redundant)	MRP redundancy ensures 99.999% network availability—critical for 24/7 production lines and safety-critical processes
  Electrical Protection	- Surge Protection: ±25kV ESD (IEC 61000-4-2); ±10kV surge (IEC 61000-4-5) on Ethernet ports - Isolation: 2.5kV AC between Ethernet ports, S800 backplane, and chassis - EMC Compliance: EN 61326-3-1 (industrial noise immunity, Class A)	Surge protection withstands lightning-induced transients; isolation eliminates ground loops in distributed SIS networks

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 210mm (D) (S800 module form factor) - Mounting Type: ABB DSBB107/DSBB175 bus backplanes (35mm DIN rail compatible via adapter) - Housing Material: EMI-shielded aluminum alloy (UL 94 V0) with copper grounding strips - Weight: Approximately 720g - LED Indicators: 10 LEDs (power, 2× PROFINET link, 2× PROFIsafe status, 2× MRP redundancy, 2× fault, 1× F-CRC validation)	EMI shielding blocks 10MHz~1GHz interference; LEDs provide at-a-glance visibility of safety communication health
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27)	Withstands extreme industrial conditions (e.g., semiconductor cleanrooms, offshore platforms) without performance degradation

• Compliance Standards: CE, RoHS, IEC 61508 SIL 2, IEC 61511 SIL 2, UL 508S, CSA C22.2 No.14, EN 61326-3-1 (EMC), PROFINET Consortium Certified (PROFIsafe), ATEX II 3G/3D (hazardous area compatible)

2. Key Features

• SIL 2-Compliant PROFIsafe Communication: Supports PROFIsafe protocol with F-CRC validation—ensures safety signals (e.g., emergency stop, overpressure trips) are transmitted without tampering or corruption, meeting IEC 61508/IEC 61511 SIL 2 requirements for mid-risk SIS.
• PROFINET IRT for Deterministic Control: Enables isochronous real-time (IRT) communication with cycle times as low as 0.5ms—delivers safety and non-safety data with <1ms latency, critical for high-speed applications (e.g., robotic emergency stop in automotive assembly).
• MRP Ring Redundancy: Dual Ethernet ports with PROFINET MRP support <50ms ring recovery—prevents network downtime during cable cuts, switch failures, or maintenance, ensuring uninterrupted communication for 24/7 process operations.
• 2.5kV Multi-Level Isolation: Electrical isolation between Ethernet ports, S800 backplane, and chassis—eliminates ground loops between distributed SIS components (e.g., field sensors vs. control room controllers) and protects sensitive safety electronics from voltage spikes.
• Robust Electrical Protection: ±25kV ESD and ±10kV surge protection on Ethernet ports—withstands voltage transients from lightning, motor startups, or cable faults, reducing unplanned downtime in outdoor or industrial environments (e.g., wind farms, oil refineries).
• EMI-Shielded Aluminum Housing: Blocks high-frequency interference (10MHz~1GHz) from VFDs, motors, and high-voltage equipment—ensures stable PROFIsafe communication in electrically noisy environments (e.g., steel mills, semiconductor fabs) where EMI could disrupt SIS logic.
• Real-Time Safety Diagnostics: Monitors PROFIsafe F-CRC validation, MRP ring status, and surge events—delivers detailed fault codes (e.g., "PROFIsafe F-CRC mismatch," "MRP ring break") via LEDs and safety controllers, enabling technicians to resolve issues before SIS performance is compromised.
• Seamless S800 Integration: Auto-detects connected S800 I/O modules (safety and non-safety) and maps data to PROFIsafe/PROFINET IRT—requires no manual configuration of safety channels, reducing commissioning time and minimizing human error in SIS setup.

3. Application Fields

• Safety Instrumented Systems (SIS): Enabling critical safety communication:
  • Automotive Assembly Lines: Transmits robotic emergency stop (E-stop) signals from S800 I/O modules to PROFINET safety controllers via PROFIsafe—IRT latency <1ms ensures immediate robot shutdown, preventing worker injuries and complying with ISO 13849.
  • Chemical Plants: Communicates reactor overpressure data to ESD controllers—MRP redundancy ensures no loss of trip commands during network maintenance, while SIL 2 compliance meets IEC 61511 requirements for process safety.
• Semiconductor & High-Tech Manufacturing: Supporting precision safety control:
  • Semiconductor Fabs: Transmits wafer processing chamber safety signals (temperature, vacuum pressure) to PROFINET controllers—EMI shielding resists noise from ion implanters, ensuring nanoscale process accuracy and worker safety.
  • Battery Manufacturing: Communicates lithium-ion cell processing safety data (overtemperature detection) to SIS—PROFIsafe F-CRC validation prevents data corruption, minimizing risk of thermal runaway and fires.
• Offshore & Renewable Energy: Withstanding harsh environmental conditions:
  • Offshore Wind Farms: Connects S800 I/O modules (turbine vibration, generator temperature) to onshore safety controllers—MRP redundancy ensures no data loss from storm-related cable damage, while surge protection withstands lightning strikes.
  • LNG Terminals: Transmits tank pressure/temperature data to SIS via PROFIsafe—ATEX compliance and wide temperature range enable operation in explosive, low-temperature environments, preventing tank overpressure incidents.
• Food & Pharmaceutical Processing: Ensuring compliant safety control:
  • Pharmaceutical Sterile Processing: Communicates autoclave safety data (pressure, temperature) to PROFINET safety controllers—SIL 2 compliance and F-CRC validation meet FDA 21 CFR Part 11, ensuring sterile process integrity.
  • Food Packaging Lines: Transmits conveyor E-stop and seal temperature safety signals to SIS—stainless steel hardware resist corrosion from washdowns, while MRP redundancy maintains production continuity during network maintenance.

4. Precautions

• Safety Compatibility (Critical): Use only with PROFIsafe-certified controllers (e.g., Siemens S7-1500F, ABB AC 800M HI) and ABB S800 safety I/O modules (e.g., DSAI303-S, DSAO301-S)—non-PROFIsafe devices will not support safety data validation, invalidating SIS integrity; verify compliance via the PROFINET Consortium database.
• Installation & Wiring Safety:
  • MRP Ring Setup: Configure dual Ethernet ports for MRP ring topology with a single redundancy manager—multiple managers cause ring conflicts; use Cat6a shielded twisted-pair (STP) cable (max distance 100m) and ground the shield at one end only to avoid ground loops.
  • Grounding: Connect the module’s PE terminal and copper grounding strips to a dedicated safety ground (resistance ≤1Ω)—star-grounding configuration prevents ground loops; avoid sharing ground with high-current equipment (e.g., welders, large motors).
  • Surge Protection Enhancement: For outdoor installations (e.g., wind farms, solar plants), add external surge arrestors (ABB recommended: OVR T2 20kA) in series with Ethernet lines—enhances protection against direct lightning strikes beyond the module’s built-in capabilities.
• Operation & Maintenance:
  • PROFIsafe Cycle Configuration: Set PROFIsafe cycle time to match SIS response requirements (e.g., 0.5ms for robotics, 100ms for process control)—oversized cycles delay safety commands; undersized cycles cause network congestion.
  • 定期检查: Perform monthly inspections for:
    • LED status (steady green PROFIsafe/IRT LEDs = normal; blinking MRP LED = ring recovery; red fault LED = investigate immediately).
    • F-CRC Validation Errors: Review logs via safety controller—rising errors indicate data corruption (e.g., faulty cable, EMI interference), requiring immediate resolution.
    • Cable Integrity: Inspect Cat6a STP cables for shielding damage—frayed shielding increases EMI susceptibility, leading to PROFIsafe communication failures.
  • Firmware Updates: Install only ABB-released firmware updates (via PROFINET service port)—unauthorized updates may break PROFIsafe compatibility or disable redundancy; back up SIS configuration before updating.
• Environmental Limitations:
  • Hazardous Areas: Install only in ABB-certified enclosures for Zone 2/22 hazardous areas—non-certified installations risk ignition in flammable atmospheres (e.g., solvent storage); confirm ATEX certification before use.
  • Extreme Humidity/Temperature: Use IP65-rated enclosures in humid environments (e.g., food processing washdown areas) or temperatures beyond -25℃~+70℃—moisture causes Ethernet port corrosion; extreme temperatures degrade surge protection components.
  •
