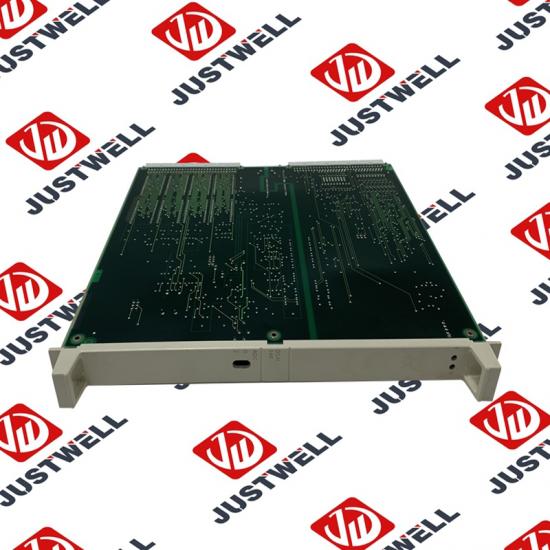

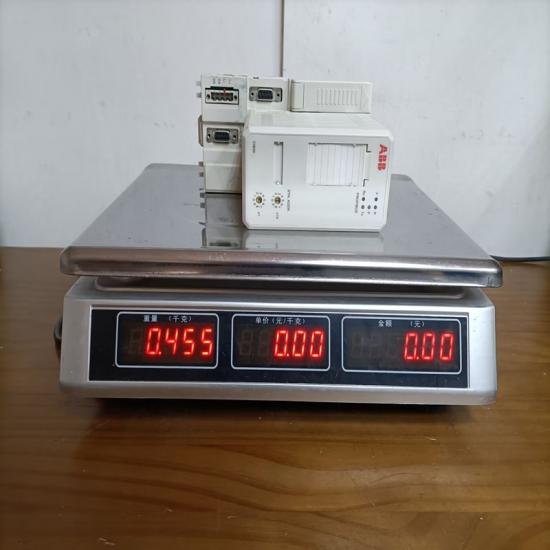

ABB DSCS115 57520001-AD Safety Communication Module

1. Key Parameters

• Product Model: DSCS115 57520001-AD
• Product Series: ABB S800 I/O SIL 2-Compliant Safety Communication Modules
• Core Function: Enables SIL 2-certified communication between S800 safety I/O modules (e.g., DSAI303-S, DSAO301-S) and safety controllers (e.g., ABB AC 800M HI); filters and validates safety data; supports redundant PROFIBUS DP-S paths; provides real-time fault diagnostics; withstands industrial EMI and transient voltages
• Communication & Safety Specifications:

  Parameter	Details	Performance Metrics
  Safety Compliance	- Functional Safety: IEC 61508 SIL 2 (hardware/firmware); IEC 61511 SIL 2 (process safety) - Safety Integrity: Single-Point Fault Metric (SPFM) ≥ 90%; Diagnostic Coverage (DC) ≥ 85% for critical faults - Data Validation: Cyclic Redundancy Check (CRC-32) for all safety frames; timestamp verification	Meets strict safety requirements for SIS, ensuring compliance with OSHA, ATEX, and FDA regulations (e.g., 21 CFR Part 11 for pharmaceuticals)
  Supported Protocols	- Primary: PROFIBUS DP-S (safety-enhanced, IEC 61158) for safety data - Secondary: PROFIBUS DP (EN 50170) for non-safety data (configuration, diagnostics) - Protocol Priority: Safety data prioritized over non-safety traffic (10:1 bandwidth allocation)	Separates safety/non-safety traffic to avoid delays in critical commands (e.g., emergency shutdown signals), maintaining SIS response time < 100ms

• Redundancy & Protection Specifications:

  Parameter	Details	Performance Metrics
  Network Redundancy	- Redundancy Mode: Dual independent PROFIBUS DP-S ports (primary/secondary) - Failover Time: <15ms (automatic switchover on primary path failure) - Synchronization: Real-time data mirroring between redundant ports	Redundant paths eliminate single points of failure, ensuring 99.99% communication availability for safety functions
  Electrical Protection	- Surge Protection: ±25kV ESD (IEC 61000-4-2); ±12kV surge (IEC 61000-4-5) on communication ports - Isolation: 2.5kV AC between PROFIBUS ports, S800 backplane, and chassis - EMC Compliance: EN 61326-3-1 (industrial noise immunity, Class A)	Withstands lightning-induced transients and motor startup spikes; isolation eliminates ground loops that corrupt safety data

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 210mm (D) (S800 module form factor) - Mounting Type: ABB DSBB107/DSBB175 bus backplanes (35mm DIN rail compatible via adapter) - Housing Material: EMI-shielded aluminum alloy (UL 94 V0) with stainless steel fasteners - Weight: Approximately 680g - LED Indicators: 9 LEDs (power A/B, 2× safety comm status, 2× non-safety comm, 2× fault, 1× redundancy)	EMI shielding blocks 10MHz~1GHz interference; stainless steel fasteners resist corrosion in humid/saltwater environments (e.g., offshore platforms)
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27)	Withstands extreme industrial conditions (e.g., turbine enclosures, chemical plant switchrooms) without compromising safety communication

• Compliance Standards: CE, RoHS, IEC 61508 SIL 2, IEC 61511 SIL 2, UL 508S (safety-related equipment), CSA C22.2 No.14, ATEX II 3G/3D (hazardous area compatible)

2. Key Features

• SIL 2 Functional Safety Certification: Certified to IEC 61508/IEC 61511 SIL 2—ensures the module meets the safety requirements of mid-risk SIS applications (e.g., process interlocks, fire detection), minimizing the risk of unsafe failures and regulatory non-compliance.
• PROFIBUS DP-S for Safety Data: Uses safety-enhanced PROFIBUS DP-S with CRC-32 validation and timestamping—prevents data tampering, corruption, or delayed transmission of critical safety signals (e.g., overpressure trip commands).
• Dual Redundant Communication Paths: Dual PROFIBUS DP-S ports with <15ms automatic failover—eliminates single points of failure in communication, ensuring uninterrupted data flow even if one cable or port fails (e.g., due to physical damage or EMI).
• Safety Data Prioritization: Allocates 10x more bandwidth to safety traffic than non-safety data—prevents non-critical tasks (e.g., configuration updates) from delaying emergency commands, maintaining SIS response time within regulatory limits.
• Robust Electrical Protection: ±25kV ESD and ±12kV surge protection safeguards against voltage transients (lightning, motor startups); 2.5kV isolation eliminates ground loops between distributed SIS components (e.g., field sensors vs. control room controllers).
• EMI-Shielded Aluminum Housing: Blocks high-frequency interference from industrial sources (VFDs, high-voltage cables)—ensures stable communication in electrically noisy environments (e.g., steel mills, oil refineries) where EMI could disrupt safety logic.
• Real-Time Safety Diagnostics: Monitors communication health, redundancy status, and data validation errors—delivers detailed fault codes (e.g., "DP-S CRC failure," "redundancy mismatch") via LEDs and safety controllers, enabling technicians to resolve issues before SIS performance is compromised.
• Seamless S800 Safety Integration: Auto-detects connected S800 safety I/O modules and maps safety data to DP-S frames—requires no manual configuration of safety channels, reducing commissioning time and minimizing human error in SIS setup.

3. Application Fields

• Safety Instrumented Systems (SIS): Enabling critical safety communication:
  • Oil Refineries: Transmits safety data (distillation column overpressure, fire detection) from S800 safety I/O to ESD controllers via DP-S—redundant paths ensure no loss of trip commands during cable maintenance, preventing explosions or oil spills.
  • Chemical Plants: Separates safety (toxic gas detection) and non-safety (temperature monitoring) data between S800 I/O and DCS—SIL 2 compliance meets IEC 61511, minimizing risk of chemical releases and environmental harm.
• Pharmaceutical & Food Processing: Ensuring compliant safety control:
  • Pharmaceutical Sterile Processing: Communicates autoclave pressure/temperature data to safety controllers—SIL 2 compliance and data validation meet FDA 21 CFR Part 11, while EMI shielding resists noise from cleanroom HVAC systems.
  • Food Manufacturing: Transmits safety signals (conveyor emergency stop, temperature alarms) to SIS—stainless steel fasteners resist corrosion from washdowns, ensuring reliable operation in hygienic environments.
• Offshore & Marine Safety: Withstanding harsh offshore conditions:
  • Offshore Oil Platforms: Connects wellhead safety sensors (pressure, flow) to ESD controllers—ATEX compliance and corrosion-resistant hardware tolerate salt spray and explosive atmospheres, preventing well blowouts.
  • LNG Carriers: Communicates cargo tank pressure data to on-board SIS—redundant communication ensures safety functions remain active during long-haul voyages in extreme climates (e.g., Arctic seas).
• Power Generation Auxiliaries: Supporting reliable energy infrastructure:
  • Thermal Power Plants: Transmits turbine vibration and boiler water level data to safety controllers—EMI shielding resists noise from generators, ensuring accurate transmission of turbine trip signals to prevent catastrophic failures.
  • Solar Farms: Communicates inverter overheating signals from remote S800 I/O to central SIS—wide temperature range enables operation in desert environments, while surge protection withstands lightning strikes.

4. Precautions

• Safety Compatibility (Critical): Use only with ABB S800 safety-certified I/O modules (e.g., DSAI303-S, DSAO301-S) and DSBB107/DSBB175 bus backplanes—non-safety modules lack SIL compliance, invalidating SIS integrity and increasing risk of unsafe failures; verify via ABB’s DSCS115 compatibility list.
• Installation & Wiring Safety:
  • PROFIBUS DP-S Wiring: Use safety-certified twisted-pair shielded cable (AWG 22~24) for DP-S connections—ground the shield at both ends (double-ended grounding) to reduce EMI; maximum cable length = 1km (with PROFIBUS DP-S repeaters).
  • Grounding: Connect the module’s PE terminal to a dedicated safety ground (resistance ≤1Ω) using 2.5mm² copper cable—avoid sharing ground with non-safety systems (e.g., motor drives) to prevent ground loops that corrupt safety data.
  • Redundancy Setup: Route primary/secondary DP-S cables through separate cable trays (minimum 300mm apart)—shared routing defeats redundancy (e.g., single fire damaging both cables); use color-coded cables (red for primary, blue for secondary) for clarity.
• Operation & Maintenance:
  • Redundancy Testing: Perform quarterly failover tests (simulate primary port disconnect) to verify <15ms switchover—document results for SIS compliance audits (e.g., IEC 61511 proof tests); use ABB’s test tool (DSCS-TEST02) for automated validation.
  • 定期检查: Perform monthly inspections for:
    • LED status (steady green safety comm LED = normal; red fault LED = investigate immediately; blinking redundancy LED = failover in progress).
    • Data Validation Errors: Review CRC failure logs via safety controller—rising errors indicate cable degradation or EMI issues, requiring cable replacement or shielding improvements.
    • Surge Event Logs: Check for surge events via module diagnostics—frequent surges indicate the need for external surge arrestors (ABB recommended: OVR T2 20kA) or improved grounding.
  • Firmware Updates: Install only ABB-released safety-approved firmware—unauthorized updates void SIL certification; back up SIS configuration and safety logic before updating to prevent data loss.
• Environmental Limitations:
  • Hazardous Areas: Install only in ABB-certified enclosures for Zone 2/22 hazardous areas—non-certified enclosures risk ignition in flammable atmospheres (e.g., solvent storage); confirm ATEX certification before use.
  • Moisture & Dust: Use IP65-rated enclosures in wet/dusty environments (e.g., mining, wastewater plants)—moisture causes terminal corrosion; dust clogs ventilation, leading to over-temperature faults that disrupt safety communication.
