A-B 193-ESM-IG-30A-T Electronic Overload Relay Module

Product Description

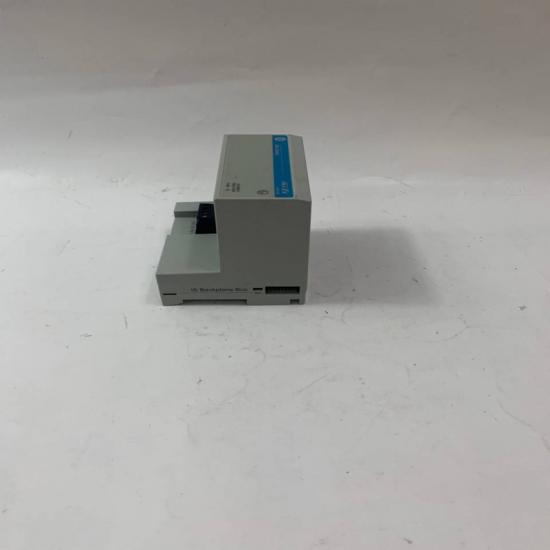

Allen-Bradley 193-ESM-IG-30A-T is an E300/E200 Electronic Overload Relay Sensing Module manufactured by Rockwell Automation. It is part of the E300 intelligent motor protection system and provides current sensing and ground fault detection for industrial motor protection applications.

This module is designed to work together with E300 communication and control modules, forming a complete electronic overload relay solution for motor monitoring and protection.

Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 193-ESM-IG-30A-T
• Product Type: Electronic Overload Relay Sensing Module
• Series: E300 / E200 Electronic Overload Relay
• Module Type: Current + Ground Fault Sensing Module
• Current Range: 0.5–30 A
• Maximum Motor Current: 30 A
• Mounting: DIN Rail / Panel Mount
• Protection Rating: IP20
• Terminals: Line-side and load-side power conductor terminals
• Application: Motor overload protection and monitoring

Functions

• Measures motor operating current
• Detects ground fault conditions
• Provides electronic overload protection data
• Monitors motor operating status
• Sends protection information to E300 control/communication modules
• Helps prevent motor damage caused by overload or electrical faults

Advantages & Features

• Intelligent electronic motor protection
• Supports 0.5–30A motor applications
• Current and ground fault monitoring in one module
• Modular E300 system design
• DIN rail and panel mounting options
• Provides enhanced motor diagnostics
• Suitable for single-phase and three-phase motor applications

Applications

• Motor Control Centers (MCC)
• Industrial automation equipment
• Pumps and fan systems
• Conveyor systems
• Machine tools
• Factory production lines
• Process control systems

Notes

• 193-ESM-IG-30A-T is a sensing module, not a complete overload relay
• Requires compatible E300 communication module and control module for full operation
• Confirm motor full-load current before installation
• Check wiring direction (line/load terminals)
• Verify compatibility with existing Allen-Bradley E300 components
