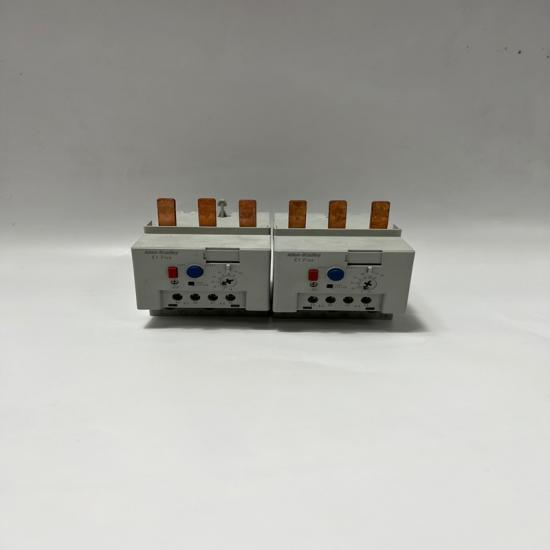

- - Allen‑Bradley 193-EEGE E1 Plus Solid State Motor Protection Overload Relay

    193-EEGE Overload Relay

    Product Overview

    The 193-EEGE is an enhanced self-powered solid-state electronic overload relay from Rockwell’s Bulletin 193 E1 Plus series, designed for three-phase AC motor protection. It directly mounts onto Bulletin 100-C60 to C97 IEC contactors, covering motor full-load current (FLA) from 18 A to 90 A (11–45 kW @ 415 VAC). This unit replaces traditional bi-metallic thermal relays with high-precision electronic current sensing, multi-selectable trip classes, dual reset modes and built-in fault diagnostics. It has been officially discontinued by Rockwell, available via surplus, refurbished and aftermarket spare partsRockwell Automation.

    Core Electrical Specifications

    Main Current & Motor Rating

    Adjustable current range: 18–90 A (5:1 wide adjustment ratio)

    Supported motor power: 11 kW min ~ 45 kW max at 415 VAC three-phase

    Rated operational voltage (Ue): 690 VAC

    Rated insulation voltage (Ui): 1000 VAC; Impulse withstand voltage Uimp: 6 kV

    Frequency: 50 / 60 Hz

    Trip & Protection Logic

    Selectable trip class via DIP switch: Class 10 / 15 / 20 / 30 (matches different motor starting characteristics)

    Phase loss protection: Trips within 3 seconds upon single-phase loss

    Ambient temperature compensation for consistent trip accuracy across cabinet temperature fluctuations

    Trip threshold: Relay trips at 120% of dial-set motor FLA

    Reset modes (switch selectable): Manual reset / Automatic reset

    Auxiliary Control Contacts

    1 Normally Closed (NC) trip contact (cuts contactor coil circuit on fault)

    1 Normally Open (NO) alarm contact (sends fault signal to PLC/HMI)

    Aux contact rating: 6 A resistive @ 250 VAC

    Wiring & Terminals

    Terminal type: Screw-clamp terminals

    Wire range: 0.75–4.0 mm² solid/stranded copper wire

    Recommended tightening torque: 1.4 N·m (12 lb-in)

    Mechanical & Environmental

    Mounting: Direct plug-on fit for 100-C60 ~ C97 IEC contactors; optional side-mount expansion modules

    Dimensions (H×W×D): 192.3 × 72 × 120.4 mm

    Weight: ~0.75 kg

    Protection rating: IP20 (indoor cabinet installation only)

    Operating temperature: -20 °C ~ +60 °C

    Storage temperature: -40 °C ~ +85 °C

    Humidity: 5%–95% non-condensing

    Front Panel Indicators & Buttons

    Red TRIP push button: Manual reset after overload trip

    Blue TEST button: Simulate overload trip for circuit commissioning test

    Status LED: Visual indication for normal running / overload / phase loss fault

    Trip dial: Rotary knob for precise motor FLA current setting

    Certifications

    UL/cUL, CE, CCC, RCM, DNV-GL, EAC; compliant with IEC 60947-4-1 / EN 60947-4-1Rockwell Automation

    Main Functions

    Multi-Level Motor Thermal Overload Protection

    Solid-state current sensors continuously monitor three-phase motor current to simulate motor winding thermal accumulation. Four adjustable trip classes adapt to standard motors, heavy-start compressors, long-start conveyor motors and high-inertia machinery, preventing winding burnout from sustained overload.

    Critical Phase Loss & Current Imbalance Protection

    Instantly detects single-phase power loss or severe three-phase current imbalance, triggering fast trip to eliminate uneven winding heating and permanent motor damage.

    Dual Reset Modes for Flexible Safety Logic

    Manual reset: Mandatory operator acknowledgment after trip, used for high-risk equipment (presses, cutting machines)

    Automatic reset: Auto-restores control circuit after cooling, suitable for low-risk fan/pump non-stop systems

    Built-in Test Function for On-Site Commissioning

    Front TEST button simulates overload fault without energizing the motor, verifying contactor interlock, PLC fault alarm and shutdown logic during cabinet wiring inspection.

    Dual Auxiliary Contact Signal Feedback

    NC contact breaks the contactor control circuit to cut motor power; NO alarm contact transmits fault status to PLC, HMI or audible alarm for remote monitoring and fault logging.

    Expandable Modular Protection (Optional Side-Mount Accessories)

    Supports side-mounted add-on modules to extend functions: ground fault leakage detection, motor stall/jam protection, PTC thermistor winding temperature monitoring, and DeviceNet communication for networked motor diagnostics.
