Product Description

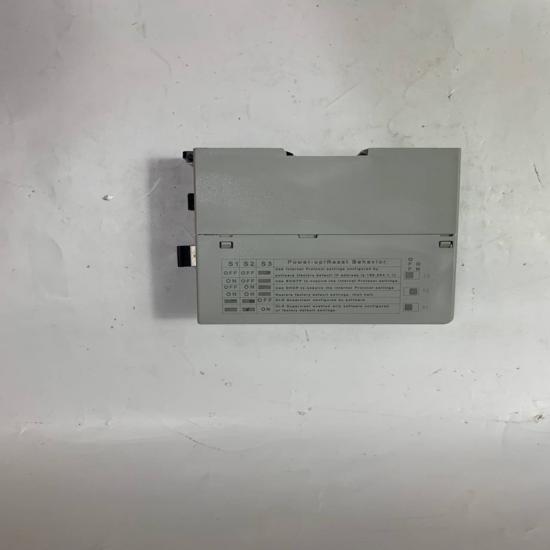

Allen-Bradley 1769-IQ6XOW4/B is a Compact I/O Combination Digital Module manufactured by Rockwell Automation. It combines 24V DC sink/source digital inputs and AC/DC relay outputs in one compact module, designed for CompactLogix 1769 control systems and other compatible Compact I/O platforms.

This module provides flexible field device connection by integrating input monitoring and relay output control in a single I/O unit, reducing cabinet space requirements and simplifying system design.

Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1769-IQ6XOW4/B
• Product Type: Compact Combination Digital I/O Module
• Series: CompactLogix 1769 Compact I/O
• Module Type: DC Input / Relay Output Combination Module

Input Specifications

• Inputs: 6 points
• Input Type: 24V DC Sink/Source
• Voltage Range: 10…30V DC
• Input Compatibility: IEC Type 3
• Input Delay: Approx. 8 ms ON/OFF

Output Specifications

• Outputs: 4 points
• Output Type: AC/DC Normally Open Relay Outputs
• Voltage Range:
  • 5…265V AC
  • 5…125V DC
• Maximum Current: 2.5 A per point
• Maximum Module Current: 8 A

General Specifications

• Power Supply Distance Rating: 8 modules
• Current Draw:
  • 105 mA @ 5V DC
  • 50 mA @ 24V DC
• Mounting: DIN Rail or Panel Mount
• Slot Width: 1 slot
• Terminal Block: 1769-RTBN18
• Approx. Weight: 280 g

Functions

• Monitors external switches, sensors, and digital signals through DC inputs
• Controls contactors, solenoids, indicator lamps, and other loads through relay outputs
• Provides isolation between control system and field devices
• Expands CompactLogix controller I/O capability
• Supports machine automation signal processing

Advantages & Features

• Combination input/output design saves installation space
• Supports both sinking and sourcing DC input wiring
• Relay outputs allow switching of AC and DC loads
• Compatible with Allen-Bradley CompactLogix systems
• DIN rail mounting for easy cabinet installation
• Built-in status indicators simplify troubleshooting
• Suitable for various industrial automation applications

Applications

• CompactLogix PLC systems
• Industrial machine control
• Packaging equipment
• Conveyor systems
• Motor starter control
• Factory automation panels
• Process control equipment

Notes

• 1769-IQ6XOW4/B is an I/O expansion module, not a standalone PLC controller
• Requires compatible 1769 CompactLogix controller or adapter
• Check input wiring mode (sink/source) before installation
• Verify relay contact ratings according to connected load
• Confirm module revision compatibility when replacing existing units
