A-B 1769-HSC/A High Speed Counter Module

Product Description

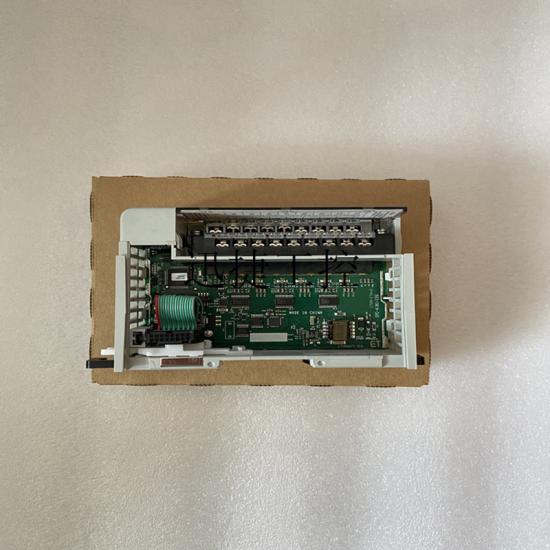

Allen-Bradley 1769-HSC/A is a CompactLogix High-Speed Counter Module manufactured by Rockwell Automation. It is designed to provide high-speed counting and encoder feedback functions for CompactLogix 1769 Compact I/O systems. The module supports high-frequency pulse counting applications such as encoder position tracking, speed measurement, and production counting.

The module provides 2/4 channel high-speed counter and encoder capability, allowing CompactLogix controllers to process fast input signals that standard digital input modules cannot handle.

Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1769-HSC/A
• Product Type: High Speed Counter Module
• Series: CompactLogix 1769 Compact I/O
• Module Type: High-Speed Counter / Encoder Interface
• Channels: 2 Counter Channels / 4 Input Channels
• Input Type: Differential Encoder Inputs
• Input Voltage Range: 2.6…30V DC
• Encoder Support: Quadrature A/B/Z Encoder
• Output Type: DC transistor outputs
• Output Rating: 30V DC, 1A per channel
• Power Supply: 5V DC backplane power
• Current Draw: 425 mA @ 5V DC
• Mounting: DIN Rail or Panel Mount
• Slot Width: 1 slot
• Communication: Compact I/O backplane
• Software: RSLogix 5000 / Studio 5000

Functions

• Counts high-speed pulse signals from sensors and encoders
• Provides position feedback from rotary encoders
• Measures machine speed and rotation frequency
• Supports quadrature encoder direction detection
• Provides precise counting for fast-moving applications
• Sends high-speed counter data to CompactLogix controllers
• Provides output control based on preset count values

Advantages & Features

• High-speed signal processing capability
• Supports incremental encoder applications
• Faster response than standard digital input modules
• Improves accuracy in motion and positioning systems
• Compact one-slot I/O design saves cabinet space
• Compatible with CompactLogix automation platforms
• Suitable for demanding industrial counting applications

Applications

• Encoder position monitoring
• Packaging machinery
• Conveyor counting systems
• Rotary equipment speed measurement
• Material handling systems
• Length measurement systems
• Machine automation equipment
• Production line counting applications

Notes

• 1769-HSC/A is a high-speed counter module, not a standard digital input module
• Requires a compatible CompactLogix 1769 controller system
• Use shielded twisted-pair wiring for encoder signals
• Confirm encoder voltage and wiring type before installation
• Configure counter parameters in RSLogix 5000 / Studio 5000 before operation
